> >>SWD4-250LR8-24 144878 ELECTRIC Cavo a sezione circolare, SmartWire-DT, 250m, a 8 poli, 8mm
Prodotto precedente Prodotto successivo

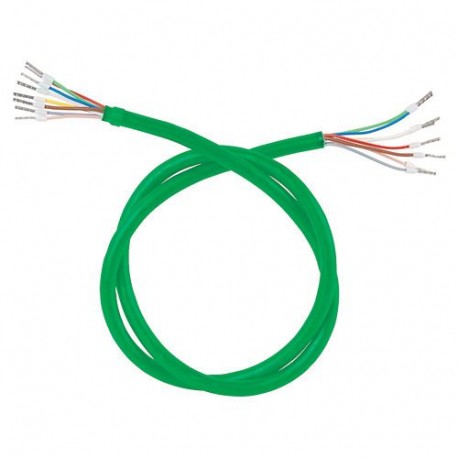

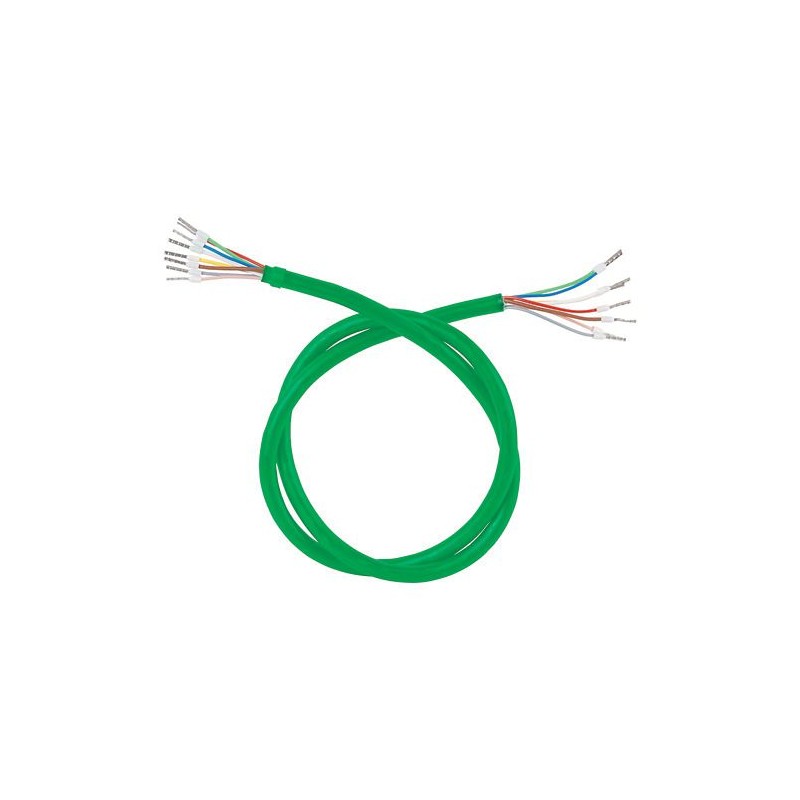

SWD4-250LR8-24 144878 EATON ELECTRIC Cavo a sezione circolare, SmartWire-DT, 250m, a 8 poli, 8mm Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

SWD4-250LR8-24 144878 EATON ELECTRIC Cavo a sezione circolare, SmartWire-DT, 250m, a 8 poli, 8mm

SWD4-250LR8-24

144878

EATON-MOELLER

Cavo a sezione circolare, SmartWire-DT, 250m, a 8 poli, 8mm

Cavo rotondo SWDT; 250m; 8 poli

Eaton SWD4 Round cable, SmartWire-DT, 250m, 8-Pole, 8mm

Maggiori dettagli


Smartwire Darwin

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $1,538.28
Prezzo unitario: $1,538.28

Quantità Prezzo
1+$1,538.28
2+$1,538.28
*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Dettagli

▲


General specifications

Product Name
Eaton SWD4 Accessory Round cable
Catalog Number
144878
EAN
4015081413775
Product Length/Depth
400 mm
Product Height
400 mm
Product Width
250 mm
Product Weight
20 kg
Certifications
CSA File No.: 2324643
UL
UL Category Control No.: NKCR
CSA
CSA Class No.: 3211-07
UL File No.: E29184
Catalog Notes
Condensation: permissible
Model Code
SWD4-250LR8-24

Specifiche del prodotto

Number of Poles
Eight-pole
Suitable as
Signaling cable
Features
Longitudinal water blocking cable
Oil resistant (acc. EN 60811-404)
Oil resistant (acc. IEC 60811-404)
UV resistant
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Cable type
Other
Conductor category
Class 2 = stranded
Cable category
Other
Reaction-to-fire class (EN 13501-6)
None
Specification material outer sheath
Other
Stranding
Bundle
Stranding element
Pairs
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Nominal cross section (conductor)
0.5 mm²
Number of cores
8
Number of stranding elements
4
NVP value
66.5 %
Outer diameter - approximate
8.2 mm
Permitted bending radius, moving application with forced guidance - min
120 mm
Permitted bending radius, moving application with free movement - min
120 mm
Permitted bending radius, stationary application/permanent installation - min
120 mm
Permitted temperature of outer cable (assembled) without vibration - max
80 °C
Permitted temperature of outer cable (assembled) without vibration - min
-20 °C
Permitted temperature of outer cable (assembling/handling) - max
80 °C
Permitted temperature of outer cable (assembling/handling) - min
-10 °C
Circuit integrity
None
Approved type of underground installation
Other
Material reinforcement
Other
Armouring/reinforcement
None
Cable geometry
Round
Conductor material
Other
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
SmartWire-DT accessories
Conductor diameter
1.5 mm
AWG-size
20
Cable length
250 m
Conductor surface
Bare
Core identification
Colour
Core insulation material
Other
Euro class acidity (EN 13501-6)
None
Euro class flaming droplets/particles (EN 13501-6)
None
Flame retardant
In accordance with EN 60332-1-2
Outer sheath color
Green
Outer sheath material
Polyvinyl chloride (PVC)
Protective sheath material
Other
Screen over stranding
None
Screen over stranding element
Foil
Smoke development class (EN 13501-6)
None
Functions
For connection to SWD4-8FRF-10 SWD cable adapter and M22-SWD-Ix series printed circuit boards
Nominal voltage U
24 V
Characteristic impedance
100 Ω
Rolled out cable width
8.2 mm
Number of sheath layers
0
Weight per kilometer
80 kg/km

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON PRODUCT CATALOGUE SMART WIRE DT.pdf 23 Mbytes
SWD4-250LR8-24 144878 ES_174753.pdf 3 Mbytes SWD4-250LR8-24 144878 ES_174753.pdf
