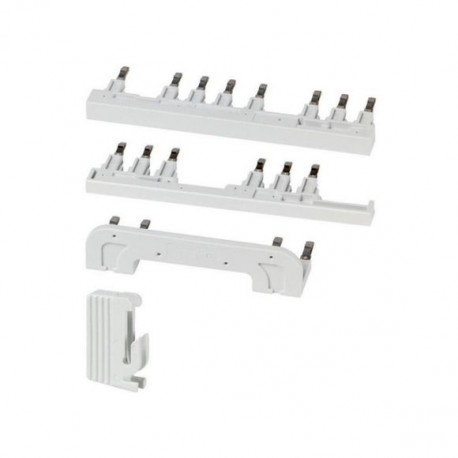

DILM12-XRL 283108 Y7-283108 EATON ELECTRIC Kit per cablaggio invertitori, DILM7-12 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILM12-XRL 283108 Y7-283108 EATON ELECTRIC Kit per cablaggio invertitori, DILM7-12

DILM12-XRL

283108

Y7-283108

EATON-MOELLER

Kit per cablaggio invertitori, DILM7-12

Set di cablaggio inverter per contattori DILM7... 15

Eaton Moeller® series DILM Reversing wiring kit DILM7 to DILM15 DILM12-XRL

Ponticello di cablaggio della corrente principale collegabile per un montaggio facile e veloce

Maggiori dettagli


Apparecchi elettrici a bassa tensione > set di cablaggio per breaker

Contattori fino a 170A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $14.99
Prezzo unitario: $14.99
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM reversing wiring kit
Catalog Number
283108
EAN
4015082831080
Product Length/Depth
90 mm
Product Height
20 mm
Product Width
40 mm
Product Weight
0.032 kg
Certifications
UL File No.: E36332
CSA-C22.2 No. 14-05
UL 508
UL
IEC/EN 60947-4-1
CSA
CE
CSA File No.: 012528
UL Category Control No.: NLRV
CSA Class No.: 3211-05
Model Code
DILM12-XRL

Informazioni generali

Model
Reversing switching
Product category
Accessories

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
6.6 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
2.2 W
Rated operational current for specified heat dissipation (In)
22 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 283108 Apparecchi elettrici a bassa tensione (EC002050)
Caratteristica Valore
adatto per numero di poli (EF001589) 3
versione (EF000010) circuito a inversione

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM12-XRL Y7-283108 283108 ES_110099.pdf 744 Kbytes DILM12-XRL Y7-283108 283108 ES_110099.pdf
