> EATON - MOELLER>Scatole isolanti>K-CI-K4 206916 Y7-206916 ELECTRIC Morsetto conduttore neutro, per grandezza K4
ANUNCIAR
Prodotto precedente Prodotto successivo

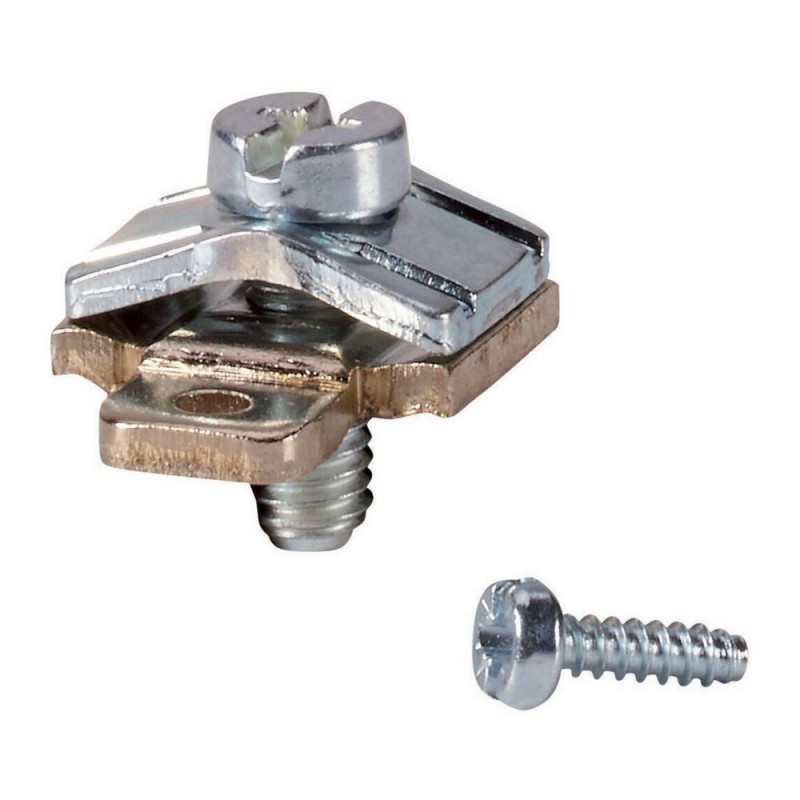

K-CI-K4 206916 Y7-206916 EATON ELECTRIC Morsetto conduttore neutro, per grandezza K4 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

K-CI-K4 206916 Y7-206916 EATON ELECTRIC Morsetto conduttore neutro, per grandezza K4

K-CI-K4

206916

Y7-206916

EATON-MOELLER

20

Morsetto conduttore neutro, per grandezza K4

Terminale conduttore neutro

Eaton Moeller® series K-CI Neutral terminal, for size K4

Morsetto neutro, Per il collegamento di un 5° conduttore, Da utilizzare con: CI-K4, T5B-.../I4, Cl-K4-T5B-..., P3-.../I4

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Scatole isolanti

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $122.12
Prezzo unitario: $6.11
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series K-CI Accessory Neutral terminal
Catalog Number
206916
EAN
4015082069162
Product Length/Depth
24 mm
Product Height
20 mm
Product Width
20 mm
Product Weight
0.01 kg
Certifications
UL/CSA certification not required
Model Code
K-CI-K4

Specifiche del prodotto

Type
Neutral terminals
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
PE, N adhesive labels
Accessory/spare part type
Connector
Used with
T5B-…/I4,
T5B-…/I4
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
4.5 W
Rated operational current for specified heat dissipation (In)
63 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (main cable)
15 mm
Product category
CI-K small enclosures
Functions
For snap-fitting onto mounting rail
Connection of a 5th conductor
Terminal capacity
1.5 - 16 mm², flexible

ETIM for 206916 Apparecchi elettrici a bassa tensione (EC002498)
Caratteristica Valore
tipo di accessori/pezzi di ricambio (EF000215) raccordo
accessorio (EF013236) Sì
pezzo di ricambio (EF013237) No

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
K-CI-K4 Y7-206916 206916 IT_206916.pdf 110 Kbytes K-CI-K4 Y7-206916 206916 IT_206916.pdf
