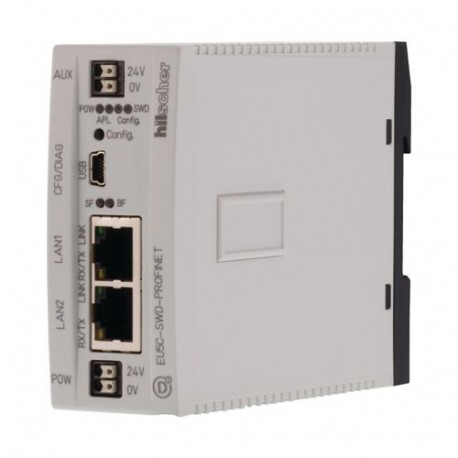

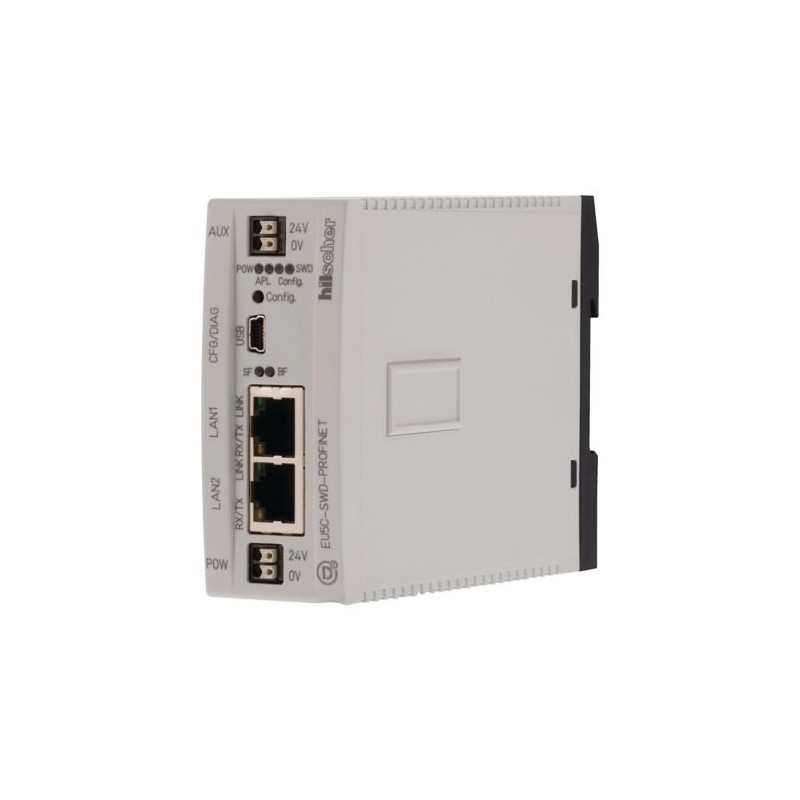

EU5C-SWD-PROFINET 170124 Y7-170124 EATON ELECTRIC Gateway SWDT, PROFINET Fino a 99 moduli
EU5C-SWD-PROFINET
170124
Y7-170124
EATON-MOELLER
Gateway SWDT, PROFINET; Fino a 99 moduli
SWDT Profinet Gateway Fino a 99 moduli
Eaton EU5C Gateway, SWD, 99 SWD cards on PROFINET
Gateway SmartWire-DT per il collegamento al bus di campo e per l'alimentazione della scheda SmartWire-DT e delle apparecchiature di commutazione. Il collegamento a PROFINET può essere stabilito utilizzando lo switch Ethernet integrato da 100 Mbit/s e una configurazione slave. È possibile collegare fino a 99 moduli SmartWire-DT. Il gateway è dotato di un'interfaccia diagnostica USB separata.
sistemi di controllo industriali (PLC) > bus di campo, periferica remota – modulo di comunicazione
Smartwire Darwin
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton EU5C Communication module
Catalog Number
170124
EAN
4015081666218
Product Length/Depth
127 mm
Product Height
90 mm
Product Width
35 mm
Product Weight
0.16 kg
Certifications
CSA
UL Category Control No.: NRQA
UL File No.: E221530
UL
IEC/EN 61131-2
UL report applies to both US and Canada
UL Category Control No.: NRQA
UL File No.: E221530
UL
IEC/EN 61131-2
UL report applies to both US and Canada
Model Code
EU5C-SWD-PROFINET
Caratteristiche & Funzioni
Features
Potential isolation (Fieldbus Interface)
Overload proof
Overload proof
Functions
For connection to field bus PROFINET as PROFINET IO-Device
Operating mode
Address allocation via PROFINET
Informazioni generali
Degree of protection
IP20
Mounting method
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Rail mounting possible
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Wall mounting/direct mounting
Rail mounting possible
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Wall mounting/direct mounting
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT coordinators
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
Suitable for
Safety functions
Terminal capacity
0.2 - 1.5 mm², solid
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
Voltage type
DC
Condizioni ambientali, dati meccanici
Constant acceleration
1 g, 9 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 9 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
1 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Condizioni ambientali e climatiche
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
In accordance with IEC 60068-2
Operating temperature - min
-25 °C
Operating temperature - max
55 °C
Relative humidity
5 - 95 % (non-condensing, IEC/EN 60068-2-30)
Compatibilità elettromagnetica
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
1 kV
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Surge rating
0.5 kV, Supply cable, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Voltage dips
≤ 10 ms, Bridging voltage dips
Dati elettrici
Inrush current
44 A (for 2 ms)
Power loss
Normally 1 W
Rated control supply voltage
24 V DC (UPOW, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
Rated operational current (Ie)
0.7 A
Rated operational voltage
14.5 V (± 3 % - SmartWire-DT)
Typically UAUX -0.2 V (for 24 V DC slaves)
Typically UAUX -0.2 V (for 24 V DC slaves)
Short-circuit protection
Yes, Short-circuit rating, SmartWire-DT supply voltage
No, external fuse FAZ Z3, Supply voltage UAux
No, external fuse FAZ Z3, Supply voltage UAux
Supply current - max
0.7 mA
Supply voltage at AC, 50 Hz - min
0 V
Supply voltage at AC, 50 Hz - max
0 V
Supply voltage at DC - min
20.4 V
Supply voltage at DC - max
28.8 V
Comunicazione
Connection
SmartWire-DT gateway for connecting up to 99 SmartWire-DT modules to an Industrial Ethernet network and for powering the SmartWire-DT modules and switchgear.
Used to connect the SmartWire-DT communication system to industrial field bus systems. Powers SmartWire-DT modules and switchgear
SmartWire-DT blade terminal SWD4-8MF2
A connection to PROFINET as a PROFINET I/O device can be established using the integrated 100 Mbit/s Ethernet switch and a slave configuration.
Used to connect the SmartWire-DT communication system to industrial field bus systems. Powers SmartWire-DT modules and switchgear
SmartWire-DT blade terminal SWD4-8MF2
A connection to PROFINET as a PROFINET I/O device can be established using the integrated 100 Mbit/s Ethernet switch and a slave configuration.
Connection type
SWD: Plug, 8-pole
Push in terminals, Supply voltage
2 x RJ45 (2-channel switch), Field bus interface
Push in terminals, Supply voltage
2 x RJ45 (2-channel switch), Field bus interface
Data transfer rate
542 Byte, Fieldbus interface, Output data, max.
125 kBit/s, SmartWire-DT
250 kBit/s, SmartWire-DT
800 Byte, Fieldbus interface, Input data, max.
100 MBit/s, Fieldbus interface
125 kBit/s, SmartWire-DT
250 kBit/s, SmartWire-DT
800 Byte, Fieldbus interface, Input data, max.
100 MBit/s, Fieldbus interface
Interfaces
Module type: PROFINET IO Device
Status display fieldbus interface for APL, SF, BF, LINK, RX/TX with Multi colour LED
Status display fieldbus interface for APL, SF, BF, LINK, RX/TX with Multi colour LED
LED indicator
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of Supply voltage: LED
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of Supply voltage: LED
Status indication of SmartWire-DT network: Configurable green or red LED
Number of modules
99 (SmartWire-DT)
Protocol
PROFINET IO
PROFINET
PROFINET
Station
IP, Station address, Fieldbus interface
SmartWire-DT master, SmartWire-DT network
SmartWire-DT master, SmartWire-DT network
Sicurezza
Explosion safety category for dust
None
Explosion safety category for gas
None
Potential isolation
Supply voltage UAUX: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Verifica di progetto
Equipment heat dissipation, current-dependent Pvid
4.4 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tensione di alimentazione AC 50 Hz (EF007532) | 0 V |
| tensione di alimentazione AC 60 Hz (EF007533) | 0 V |
| tensione di alimentazione DC (EF007534) | 20.4 V |
| tipo di tensione di alimentazione (EF002991) | DC |
| numero di interfacce HW CAN (EF017563) | 0 |
| numero di interfacce HW Industrial Ethernet (EF003020) | 0 |
| numero di interfacce PROFINET (EF006932) | 2 |
| numero di interfacce HW seriali RS232 (EF003021) | 0 |
| numero di interfacce HW seriali RS422 (EF003022) | 0 |
| numero di interfacce HW seriali RS485 (EF003023) | 0 |
| numero di interfacce HW seriali TTY (EF003024) | 0 |
| numero di interfacce HW USB (EF003025) | 1 |
| numero di interfacce HW parallele (EF003026) | 0 |
| numero di interfacce HW wireless (EF006933) | 0 |
| numero di interfacce HW altre (EF003027) | 0 |
| supporta il protocollo per EtherCAT (EF017564) | No |
| supporta il protocollo per TCP/IP (EF003050) | No |
| supporta il protocollo per PROFIBUS (EF003052) | No |
| supporta il protocollo per CAN (EF003053) | No |
| supporta il protocollo per INTERBUS (EF003054) | No |
| supporta il protocollo per ASI (EF003051) | No |
| supporta il protocollo per EIB (EF003055) | No |
| supporta il protocollo pour Modbus (EF003057) | No |
| supporta il protocollo per Data-Highway (EF003058) | No |
| supporta il protocollo per DeviceNet (EF003059) | No |
| supporta il protocollo per SUCONET (EF003060) | No |
| supporta il protocollo per LON (EF003017) | No |
| supporta il protocollo per SERCOS (EF006657) | No |
| supporta il protocollo per PROFINET IO (EF007525) | Sì |
| supporta il protocollo per PROFINET CBA (EF007524) | No |
| supporta il protocollo per Foundation Fieldbus (EF007522) | No |
| supporta il protocollo per EtherNet/IP (EF007521) | No |
| supporta il protocollo per AS-Interface Safety at Work (EF007519) | No |
| supporta il protocollo per DeviceNet Safety (EF007520) | No |
| supporta il protocollo per INTERBUS-Safety (EF006662) | No |
| supporta il protocollo per PROFIsafe (EF007526) | No |
| supporta il protocollo per SafetyBUS p (EF007527) | No |
| supporta il protocollo per altri sistemi bus (EF003062) | No |
| standard radio Bluetooth (EF007178) | No |
| standard radio WLAN 802.11 (EF007179) | No |
| standard radio GPRS (EF008523) | No |
| standard radio eGPRS (EDGE) (EF009703) | No |
| standard radio GSM (EF008524) | No |
| standard radio LTE (EF009709) | No |
| standard radio UMTS (EF008525) | No |
| link IO master (EF007298) | No |
| componenti del sistema (EF004118) | Sì |
| grado di protezione (IP) (EF005474) | IP20 |
| con separazione del potenziale (EF003272) | No |
| collegamento bus di campo tramite accoppiatore separato possibile (EF004002) | No |
| montaggio su guida portante possibile (EF003972) | Sì |
| montaggio a parete/diretto possibile (EF007020) | Sì |
| montaggio frontale possibile (EF007016) | No |
| montaggio su rack possibile (EF007018) | No |
| adatto per funzioni di sicurezza (EF001597) | Sì |
| SIL secondo IEC 61508 (EF009889) | senza |
| livello di performance secondo EN ISO 13849-1 (EF007399) | senza |
| risorsa corrispondente (Ex ia) (EF004141) | No |
| risorsa corrispondente (Ex ib) (EF004142) | No |
| categoria di protezione antideflagrante per gas (EF003997) | senza |
| categoria di protezione antideflagrante per polvere (EF003998) | senza |
| certificato per area pericolosa UL classe I (EF017622) | No |
| certificato per area pericolosa UL classe II (EF017625) | No |
| certificato per area pericolosa UL classe III (EF017627) | No |
| certificato per area pericolosa UL divisione 1 (EF017628) | No |
| certificato per area pericolosa UL divisione 2 (EF017629) | No |
| certificato per area pericolosa UL gruppo A (acetilene) (EF017632) | No |
| certificato per area pericolosa UL gruppo B (idrogeno) (EF017633) | No |
| certificato per area pericolosa UL gruppo C (etilene) (EF017635) | No |
| certificato per area pericolosa UL gruppo D (propano) (EF017636) | No |
| certificato per area pericolosa UL gruppo E (polvere metallica) (EF017637) | No |
| certificato per area pericolosa UL gruppo F (polvere carboniosa) (EF017638) | No |
| certificato per area pericolosa UL gruppo G (polvere non conduttiva) (EF017639) | No |
| larghezza (EF000008) | 35 mm |
| altezza (EF000040) | 90 mm |
| profondità (EF000049) | 127 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON PRODUCT CATALOGUE SMART WIRE EN.pdf | 26 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EU5C-SWD-PROFINET Y7-170124 170124 IT_170124.pdf | 5 Mbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
