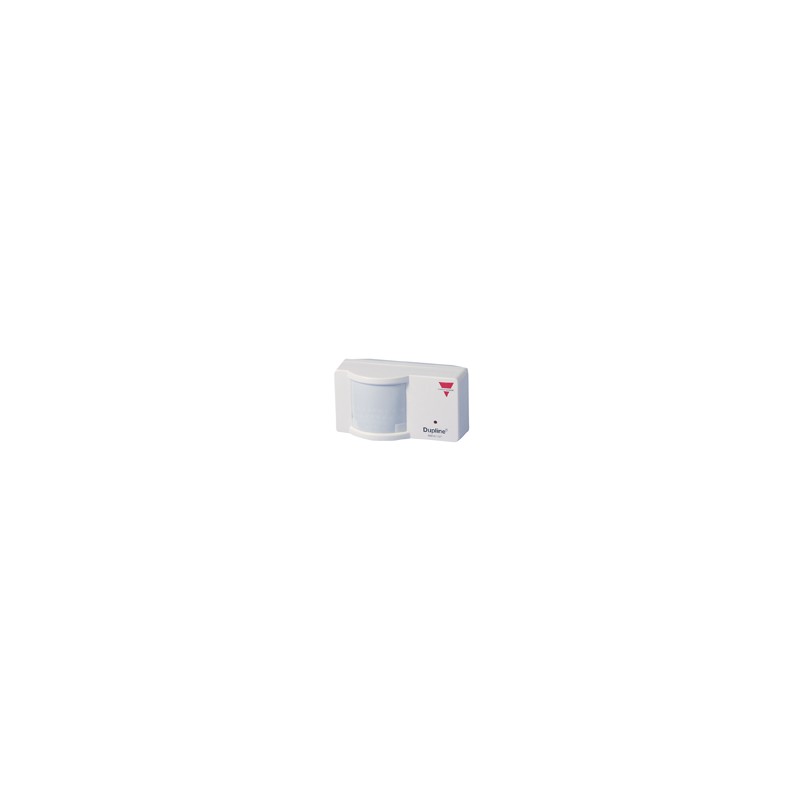

PIR Sensor
Type G 8910 1127
Du line®
Fieldbus Installationbus
• Passive infrared detector (PIR)
• Detects movement by e.g. a person
• Indoor applications
• Dupline® output
• Operating distance: 10 m
• Built-in transmission time: 12 s to 10 min
• Operating angle: 90°
• Walk test: LED indication
• Switch for NO/NC, transmitting channel output
• Channel coding by GAP 1605
• Supplied by Dupline®
Product Description Ordering Key
G 8910 1127
Non-powered Dupline® pas- sive infrared detector with built-in transmitter. For de- tection of movement by e.g.
a person. Used for burglar alarm, light control etc. Built- in timer for delay on operate and transmission time.
Type: Dupline®
Type
Type Selection
Supply Ordering no.
1 channel
PIR detector
By Dupline® G 8910 1127
Supply Specifications
Power supply Supplied by Dupline®
Rated operational current < 2.6 mA with walktest on
< 1.9 mA with walktest off
Input Specifications
Inputs PIR on I/O 1
Lens Dual detecting zones
Segments 24
Levels 3
Angle 90° Operating distance ≤ 10 m
(see radiation diagram) Wave length 7 to 14 µm
Input detection speed 0.5 to 5 pulses/s
Transmission delay
Switch 4 Delay on/off Delay on release 12 s to 10 min *) Switch 2 OFF 12 s to 2 min Switch 2 ON 1 to 10 min
Default channel status
Switch 3 OFF NO Switch 3 ON NC
Output
LED output red LED on I/O 5
Tamper signal on I/O 2
*) The transmission time starts when the respective channel changes its status. The channel returns to its default status when the time has elapsed. Each detection by the PIR will retrigger the timer.
General Specifications
Power ON delay Typ. 1 min. It is therefore advisable to keep the unit connected to Dupline®
Walk test indication LED, red Switch 1 ON Walk test ON Switch 1 OFF Walk test OFF
Delay time adjustment Potentiometer (Transm. timer) controls the range selected by switch 2
Environment
Degree of protection IP 40
For indoor applications
Operating temperature -10° to +50°C (+14° to +122°F) Storage temperature -30° to +70°C (-22° to +158°F)
Connection Screw terminals Terminal D+. Dupline signal Terminal D- Dupline signal
Material
Housing Colour White
Lens Polyethylene
Dimensions (WxHxD) 104 x 55 x 57 mm
Weight Approx. 150 g
Specifications are subject to change without notice (01.12.2006) 1
