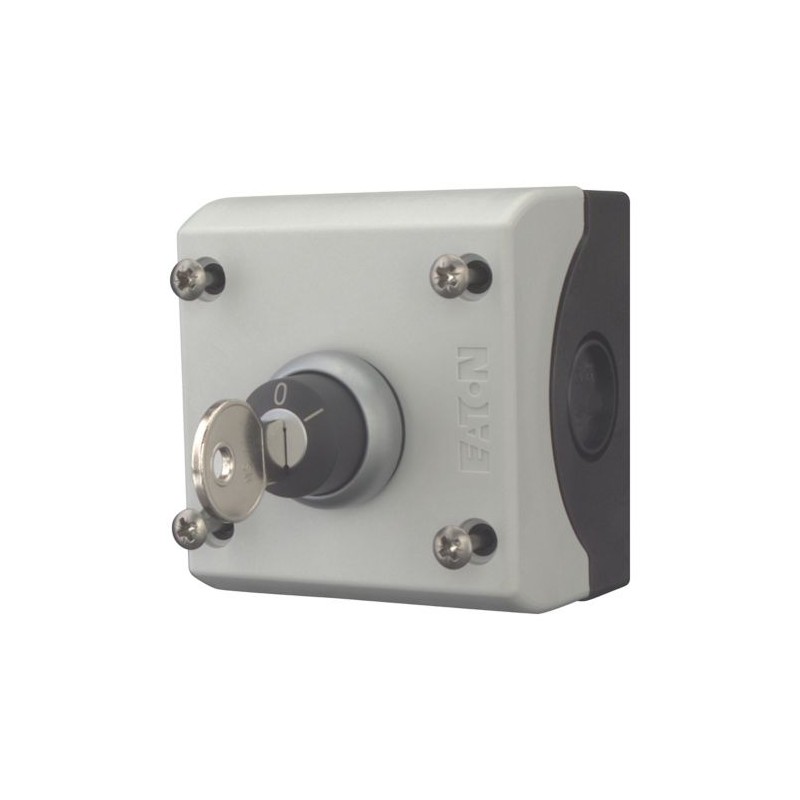

M22-WRS/KC11/I 216526 Y7-216526 EATON ELECTRIC Botonera completa Selector de llave completo Enclavamiento 2 Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

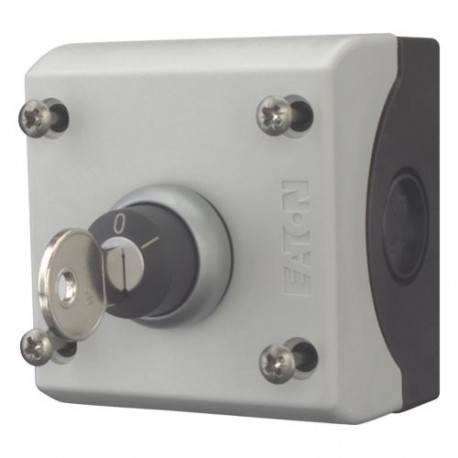

M22-WRS/KC11/I 216526 Y7-216526 EATON ELECTRIC Botonera completa Selector de llave completo Enclavamiento 2

M22-WRS/KC11/I

216526

Y7-216526

EATON-MOELLER

Botonera completa, Selector de llave completo, Enclavamiento, 2

Eaton Moeller® series M22 Key-operated actuator, maintained, 2 positions 0, I, Bezel: titanium, 1 NC, 1 N/O, Enclosure

Dispositivo completo, botón de selección de llave, mecanismo de bloqueo MS1, 2 posiciones, mantenido, llave extraíble en posición I y O, con contacto 1N/O 1 N/C, en caja de montaje en superficie de plástico, sistema RMQ, placa de montaje empotrada, diámetro 22,3 mm, montaje a clip, color del bisel plateado, grado de protección IP67, 69K

Más detalles


Componentes industriales de baja tensión > Combinación de dispositivos de mando y señalización en caja

Auxiliares de mando y señalización

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $76.89
Precio unitario: $76.89
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

productos relacionados

▲

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
216526
EAN
4015082165260
Product Length/Depth
130 mm
Product Height
70 mm
Product Width
72 mm
Product Weight
0.2 kg
Certifications
CE
IEC/EN 60947
UL 508
CSA Class No.: 3211-03
IEC/EN 60947-5
UL File No.: E29184
CSA
CSA File No.: 012528
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
VDE 0660
Model Code
M22-WRS/KC11/I

Features & Functions

Bezel color
Titanium
Color
Light gray
Design
Enclosure
Enclosure color
Gray
Enclosure material
Plastic
Functions
Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Knockouts
2 x M25/20 (cable entry knockouts at the side)
1 x M20 (cable entry knockout at the side)
2 x M16 (cable entry knockouts at the base)
Number of locations
1
RAL-number
7035

General

Accessories
1 key included with supplied equipment.
Degree of protection
IP66
NEMA 4X, 13
Lifespan
100,000 mechanical Operations
Operating frequency
100 Operations/h
Operating torque
0.5 Nm
Product category
RMQ-Titan
Product category
RMQ-Titan
Size
Front diameter: 29.7 mm
Switching angle
60 °
Type

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated control supply voltage (Us) at AC, 50 Hz - min
115 V
Rated control supply voltage (Us) at AC, 50 Hz - max
500 V
Rated control supply voltage (Us) at AC, 60 Hz - min
115 V
Rated control supply voltage (Us) at AC, 60 Hz - max
500 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
220 V

Short-circuit rating

Rated conditional short-circuit current (Iq)
1 kA

Communication

Connection to SmartWire-DT
No
Connection type
Screw connection

Actuator

Actuator function
Key withdrawable in position 0
Key withdrawable in position 1
Maintained
Actuator travel and actuation force (DIN EN 60947-5-1)
4.8 mm
Knob travel
5.7 mm
Number of actuation directions
2

Contacts

Force for positive opening - min
20 N
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 216526 Interruptores de baja tensión (EC000225)
Característica Valor
Número de puestos de mando (EF001372) 1
Número de pulsadores (EF005558) 0
Número de luces indicadoras (EF001965) 0
Número de interruptores de llave (EF005590) 1
Número de interruptores selectores (EF005567) 1
Número de pulsadores de seta (EF006670) 0
Apto para parada de emergencia (EF001433) No
Voltaje nominal de suministro piloto piloto para CA 50 Hz (EF003978) 115 V
Voltaje nominal de suministro piloto piloto para CA 60 Hz (EF003979) 115 V
Voltaje nominal de suministro piloto de piloto para CC (EF003980) 24 V
Color de la parte superior de la carcasa (EF001373) Gris
Color de la carcasa (EF000136) Gris
Material de carcasa (EF001596) Plástico
Número de contactos normalmente abiertos (EF008256) 1
Número de contactos normalmente cerrados (EF008255) 1
Número de contactos inversores (EF008257) 0
Grado de protección (IP) (EF005474) IP66
Grado de protección (NEMA) (EF011959) 4X, 13
