ESR5-NO-31-AC-DC
118704
EATON-MOELLER
1

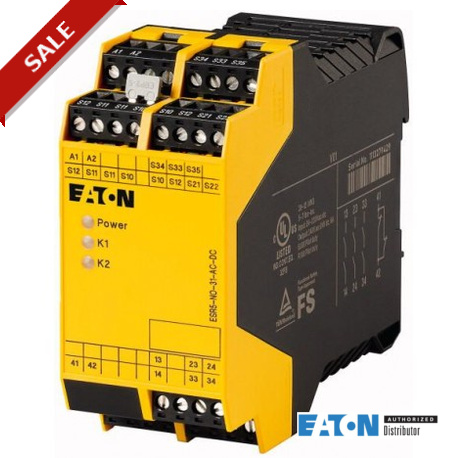

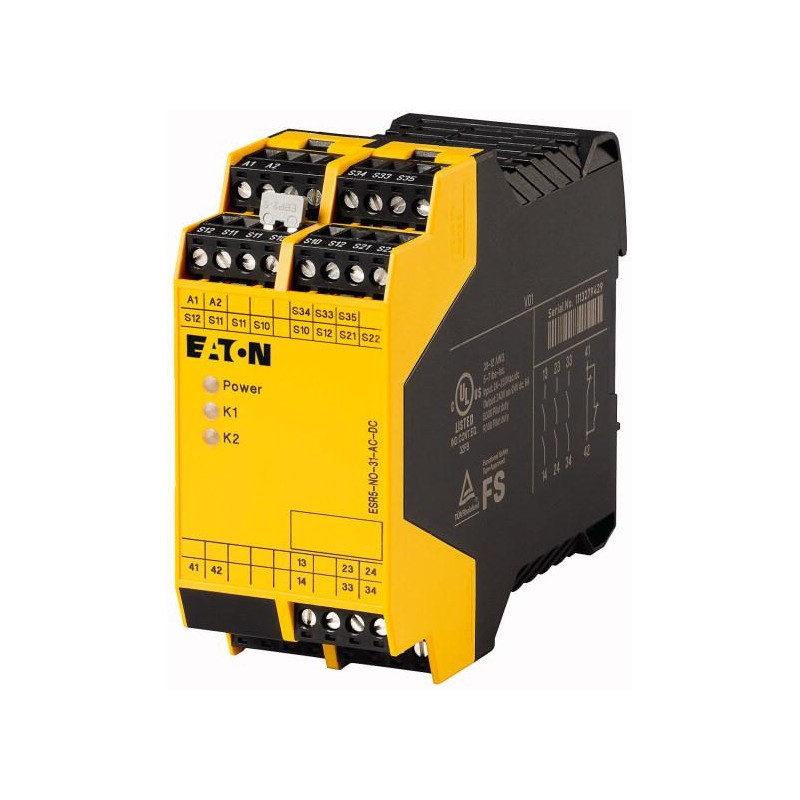

Relé de seguridad para parada de emergencia/Puerta de protección; 24V-230VDC/AC; 3 Rutas de validación
Relés temporizadores (KETR, KEMR, KESR)
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Product range | Electronic safety relays | ||
Basic function | Emergency stop; emergency switching off Protective door Feedback circuit | ||
Features | |||
Mounting width | mm | 45 | |
Automatic or manual start Start button monitoring | |||
Operation | single-channel dual-channel | ||
Supply voltage | Us | 24 V DC 24 V AC, 50/60 Hz 24 V AC/DC - 230 V AC/DC, 50/60 Hz 115 V AC, 50/60 Hz 230 V AC, 50/60 Hz | |
Approval | |||
General | |||
Intended use | Sicherheitsrelais zur Überwachung von Not-Halt- und Schutztürschaltern. Mit Hilfe dieses Modules werden Stromkreise sicherheitsgerichtet unterbrochen. | ||
Policies List | EMV 2004/108/EG, Maschinen 2006/42/EG | ||
Standards | EN ISO 13849-1:2008, EN 62061:2005+AC:2010, EN 61508, Parts 1-7:2001, EN 50178:1997, EN 60204-1:2006+A1:2009 | ||
Dimensions (W x H x D) | mm | 45 x 114.5 x 99 | |
Mounting width | mm | 45 | |
Weight | kg | 0,31 | |
Mounting position | As required | ||
Mounting | Top-hat rail IEC/EN 60715, 35 mm | ||
Connection type | M3 screw terminals | ||
Lifespan, mechanical | Operations | x 106 | 10 |
Terminal capacity | |||
Solid | mm2 | 1x (0.2 – 2.5) 2x (0.2 – 1) | |
Flexible with ferrule | mm2 | 1x (0.25 – 2.5) 2x (0.25 – 1) | |
Solid or stranded | AWG | 24 - 12 | |
Terminal screw | Nm | ||
Pozidriv screwdriver | Size | 2 | |
Standard screwdriver | mm | 0.6 x 3.5 | |
Max. tightening torque | Nm | 0.6 | |
Stripping length | mm | 7 | |
Material | Housing: polyamide PA not reinforced Contacts: Material: silver tin oxide, gold plated (AgSnO2, 0.2 µm Au) | ||
Duty factor | % DF | 100 | |
Operating conditions | |||
Climatic environmental conditions | |||
Climatic proofing | Dry heat to IEC 60068-2-2 Damp heat as per EN 60068-2-3 | ||
Ambient temperature | |||
Operation | ϑ | °C | -20 - +55 |
Storage | ϑ | °C | -25 - +85 |
Condensation | Non-condensing | ||
Atmospheric conditions | |||
relative humidity | % | Max. 75 | |
Air pressure (operation) | hPa | 795 - 1080 | |
Altitude | Above sea level | m | 2000 |
Power loss | P | W | 4.8 |
Ambient conditions, mechanical | |||
Degree of protection to VDE 0470-1 | |||
Enclosures | IP20 | ||
Terminals | IP20 | ||
Degree of Protection | Installation location: ≥ IP54 | ||
B10d [switching cycles] | 300000 | ||
Protection against direct contact when actuated from front (EN 50274) | Finger and back-of-hand proof | ||
Vibrations (IEC/EN 60068-2-6) | 10 - 150 Hz Amplitude: 0.15 mm Acceleration: 2 g | ||
Clearance in air and creepage distances | EN 50178, UL 508, CSA C22.2, No. 14-95 | ||
Rated impulse withstand voltage | Uimp | V AC | 4000 |
Insulation | Basic isolation Safe isolation, reinforced isolation, and 6 kV between input circuit and enable current paths (13-14, 23-24, 33-34) and between (13-14, 23-24, 33-34) with relation to each other. | ||
Overvoltage category/pollution degree | III/2 | ||
Stop category | according to EN60204-1 | 1,26 | |
Technical safety parameters: | |||
Values according to EN ISO 13849-1 | |||
Performance level | according to EN ISO 13849 | PL e | |
Category | according to EN ISO 13849 | Kat. 4 | |
Safety integrity level claim limit | in accordance with 62061 | SILCL 3 | |
Safety integrity level | In accordance with IEC 61508 | SIL 3 | |
Probability of failure per hour | PFHd | x 10-10 | 1.26 |
Prooftest High Demand | Months | 240 | |
Prooftest Low Demand | Months | 59 | |
Rated operational voltage | Ue | V AC | 230 |
Rated operational voltage | Ue | V | 24 - 230 V AC, 24 - 230 V DC |
Permissible range | 0.85 - 1.1 x Ue | ||
Rated insulation voltage | Ui | V AC | 250 |
Quadratic summation current | A2 | 50 A2(ITH2= I12+ I22+ … + IN2) | |
Inrush current | A | min - max0.025 - 6 | |
Minimum switching capacity | W | 0.4 | |
Control circuit | |||
Power supply circuit | |||
AC operated 50/60 Hz | W | 5.8 | |
DC operated | W | 2.9 | |
Fuse for control circuit supply | |||
24 V | short-circuit proof | ||
115 V/230 V | short-circuit proof | ||
Input data | |||
Rated current | mA | S10, S12, S22:35, S34, S35:45 | |
Current consumption | mA | 120 V AC: 20 230 V AC: 10 24 V DC: 120 | |
Voltage at input, starting and feedback circuit | V DC | Approx. 24 | |
Max. resistive load of the cable | R | Ω | |
Technical data for design verification | |||
Rated operational current for specified heat dissipation | In | A | 0 |
Heat dissipation per pole, current-dependent | Pvid | W | 0 |
Equipment heat dissipation, current-dependent | Pvid | W | 0 |
Static heat dissipation, non-current-dependent | Pvs | W | 4.8 |
Heat dissipation capacity | Pdiss | W | 0 |
Operating ambient temperature min. | °C | -25 | |
Operating ambient temperature max. | °C | 55 | |
IEC/EN 61439 design verification | |||
10.2 Strength of materials and parts | |||
10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. | ||
10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.7 Inscriptions | Meets the product standard's requirements. | ||
10.3 Degree of protection of ASSEMBLIES | Meets the product standard's requirements. | ||
10.4 Clearances and creepage distances | Meets the product standard's requirements. | ||
10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
10.9 Insulation properties | |||
10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. | ||
10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. | ||
10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. | ||
10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. | ||
10.11 Short-circuit rating | Is the panel builder's responsibility. | ||
10.12 Electromagnetic compatibility | Is the panel builder's responsibility. | ||
10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Relays (EG000019) / Device for monitoring of safety-related circuits (EC001449) | |||
Electric engineering, automation, process control engineering / Low-voltage switch technology / Monitoring equipment (low-voltage switch technology) / Device for monitoring of safety-related circuits ([email protected] [ACO304008]) | |||
Model | Basic device | ||
Suitable for monitoring of position switches | Yes | ||
Suitable for monitoring of emergency-stop circuits | Yes | ||
Suitable for monitoring of valves | No | ||
Suitable for monitoring of optoelectronic protection equipment | No | ||
Suitable for monitoring of tactile sensors | No | ||
Suitable for monitoring of magnetic switches | No | ||
Suitable for monitoring of proximity switches | No | ||
Type of electric connection | Screw connection | ||
Rail mounting possible | Yes | ||
Rated control supply voltage Us at AC 50HZ | V | 0 - 26.4 | |
Rated control supply voltage Us at AC 60HZ | V | 0 - 0 | |
Rated control supply voltage Us at DC | V | 0 - 0 | |
Voltage type for actuating | AC/DC | ||
With detachable clamps | Yes | ||
Evaluation inputs | One- and two-channel | ||
With start input | Yes | ||
With muting function | No | ||
With feedback circuit | Yes | ||
Release-delay | s | 0 - 0 | |
Number of outputs, safety related, undelayed, with contact | 3 | ||
Number of outputs, safety related, delayed, with contact | 0 | ||
Number of outputs, safety related, undelayed, semiconductors | 0 | ||
Number of outputs, safety related, delayed, semiconductors | 0 | ||
Number of outputs, signalling function, undelayed, with contact | 1 | ||
Number of outputs, signalling function, delayed, with contact | 0 | ||
Number of outputs, signalling function, undelayed, semiconductors | 0 | ||
Number of outputs, signalling function, delayed, semiconductors | 0 | ||
Category according to EN 954-1 | 4 | ||
Type of safety acc. IEC 61496-1 | - | ||
Stop category acc. to IEC 60204 | 0 | ||
Performance level acc. to EN ISO 13849-1 | Level e | ||
SIL according to IEC 61508 | 3 | ||
With approval for TÜV | Yes | ||
With approval for BG BIA | No | ||
With approval according to UL | Yes | ||
Width | mm | 45 | |
Height | mm | 99 | |
Depth | mm | 114.5 |
Product Standards | IEC/EN see Technical Data; UL 508; CSA-C22.2 No. 14-95; CE marking | ||
UL File No. | E29184 | ||
UL Category Control No. | NKCR; NKCR7 | ||
CSA File No. | UL report applies to both US and Canada | ||
CSA Class No. | 3211-83; 3211-03 | ||
North America Certification | UL listed, certified by UL for use in Canada | ||
Degree of Protection | IEC: IP20, UL/CSA Type: - |
