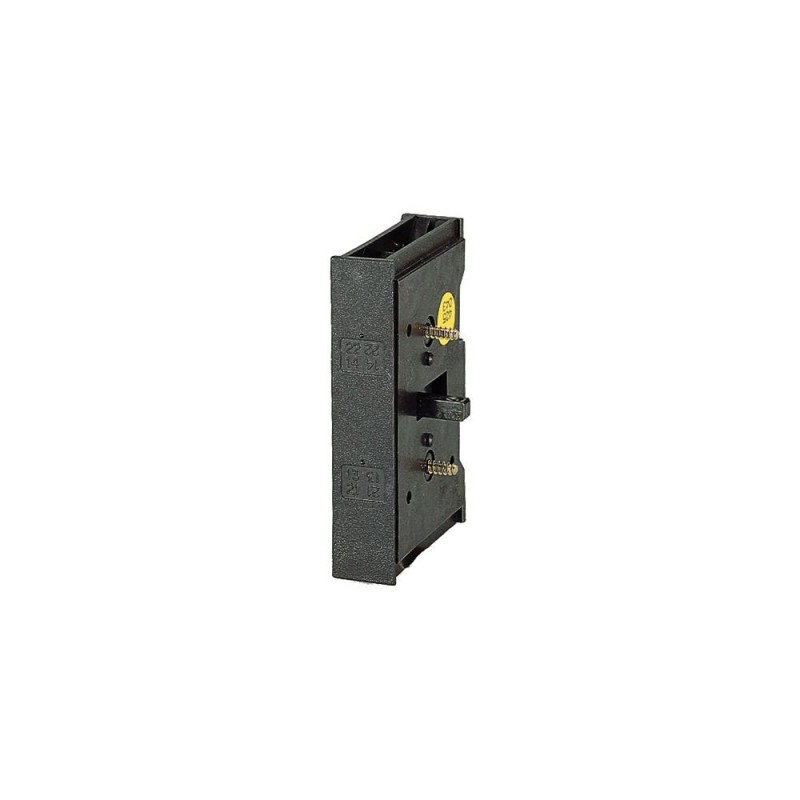

N-P3Z 064805 Y7-64805 EATON ELECTRIC Módulo para conductor Neutro 4º polos Para P3-.../Z Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

N-P3Z 064805 Y7-64805 EATON ELECTRIC Módulo para conductor Neutro 4º polos Para P3-.../Z

N-P3Z

064805

Y7-64805

EATON-MOELLER

Módulo para conductor Neutro; 4º polos; Para P3-.../Z

Eaton Moeller® series Neutral conductor, switched neutral

Accesorios para interruptores de levas T/interruptores-seccionadores P según IEC/EN60947-3, diseño general: material aislante-caja de montaje en superficie, montaje empotrado, montaje central, montaje trasero Montaje en tablero de distribución de servicio IVS. Los interruptores T cam capaces, robustos y compactos se utilizan en la industria, el trabajo manual y la gestión de servicios de construcción. Una variedad de circuitos estándar están disponibles para su selección. Se implementan circuitos especiales específicos del cliente como complementos. Las posibilidades son casi ilimitadas aquí. La amplia gama de accesorios completa la gama de interruptores y complementa las posibilidades de aplicación.

Más detalles


Interruptores de baja tensión > Accesorios para la tecnología de conmutación de baja tensión

Interruptores Seccionadores y de Levas

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $21.74
Precio unitario: $21.74

*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Comprados juntos habitualmente

Más vendidos

Más Información



Especificaciones generales

Product Name
Eaton Moeller® series Accessory Neutral conductor
Catalog Number
064805
EAN
4015080648055
Product Length/Depth
40.5 mm
Product Height
82.2 mm
Product Width
18 mm
Product Weight
0.07 kg
Certifications
CSA File No.: 012528
UL
CSA-C22.2 No. 14-05
CSA Class No.: 3211-05
IEC/EN 60947-3
CE
CSA
UL 508
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL File No.: E36332
Model Code
N-P3Z

General

Accessory/spare part type
Neutral terminal
Mounting position
Right side
Left side
Type

Condiciones climáticas ambientales

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Secciones de conexión

Stripping length (main cable)
13.5 mm

Especificaciones eléctricas

Rated operational current (Ie) - max
90 A

Verificación del diseño

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
7.5 W
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 064805 Interruptores de baja tensión (EC002498)
Característica Valor
Tipo de accesorio/repuesto (EF000215) Terminal neutral
Accesorio (EF013236)
Recambio (EF013237) No

Datasheet - PDF
