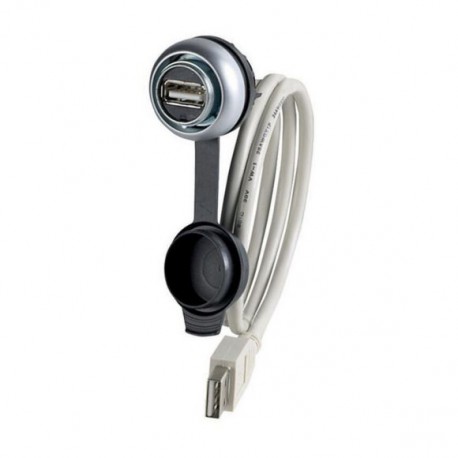

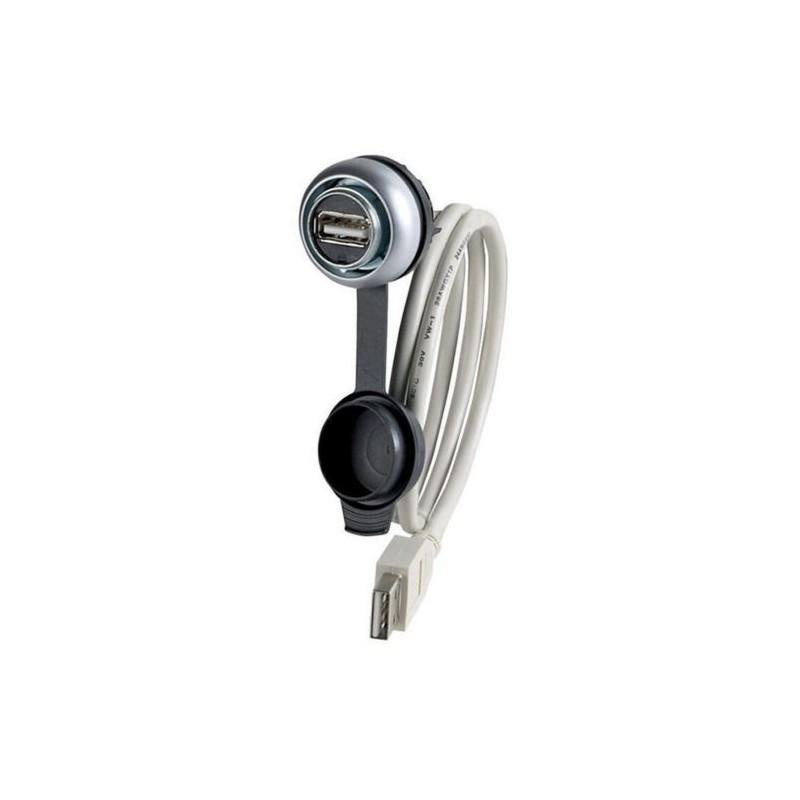

M22-USB-SA-150 147543 Y7-147543 EATON ELECTRIC Interfaz USB 2.0 22 mm Hembra/cable 1.5 m Anillo Titanio Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

M22-USB-SA-150 147543 Y7-147543 EATON ELECTRIC Interfaz USB 2.0 22 mm Hembra/cable 1.5 m Anillo Titanio

M22-USB-SA-150

147543

Y7-147543

EATON-MOELLER

Interfaz USB 2.0, 22 mm, Hembra/cable 1.5 m, Anillo Titanio

Eaton Moeller® series M22 Bulkhead interface, 1.5 m, Prefabricated cable with permanently connected USB 3.0 Type A plug, Bezel: titanium

Interfaz de mamparo, Accesorios generales, Cable prefabricado con conector USB 3.0 tipo A conectado permanentemente, Longitud del cable: 1,5 m, Grado de protección: IP65 (con tapa cerrada), IP20 (con enchufe conectado), Bisel: titanio, Conexión a SmartWire-DT: no, Para usar con: Montaje frontal, Número de polos: 9

Más detalles


Componentes industriales de baja tensión > Accesorios para dispositivos de control

Auxiliares de mando y señalización

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $48.38
Precio unitario: $48.38
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Comprados juntos habitualmente

▲

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series M22 Accessory Bulkhead interface
Catalog Number
147543
EAN
4015081439942
Product Length/Depth
120 mm
Product Height
30 mm
Product Width
120 mm
Product Weight
0.14 kg
Certifications
IEC/EN 6113-2
UL
UL 508
Certified by UL for use in Canada
CSA Class No.: none
UL Category Control No.: DUXR, DUXR7
CE
UL File No.: E330994
CSA-C22.2 No. 142
UL report applies to both US and Canada
Catalog Notes
Prefabricated cable with permanently connected USB 3.0 Type A plug
Model Code
M22-USB-SA-150

Features & Functions

Bezel color
Titanium
Design
USB 3.0 A
Number of poles
Nine-pole

General

Accessory/spare part type
Accessory
Degree of protection
IP65 (with closed cover)
IP20 (with plug connected)
NEMA 12 (with closed cover)
Lifespan, mechanical
100 insertion cycles
Limit value class
3
Mounting depth
70 mm
Opening diameter
22.5 mm
Used with
Used for USB connection

Climatic environmental conditions

Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
25 °C
Ambient storage temperature - max
80 °C

Electrical rating

Insulation resistance
≥ 100 MΩ
Nominal current
900 A
Nominal voltage - max
30 V
Rated operational voltage
5 V AC/DC
Resistance
< 30 mΩ (volume resistance)

Communication

Connection to SmartWire-DT
No
Data transfer rate
5 GBit/s, max.

Contacts

Contact material
CuSn, gold-plated
Contact type
1:1
Force for positive opening - min
0 N

Cable

Cable length
1.5 m
Cable sheath material
Polyvinyl chloride (PVC)
Outer cable diameter
6.1 mm
Permitted bending radius
15 x cable diameter

Design verification

Heat dissipation capacity Pdiss
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 147543 Interruptores de baja tensión (EC002024)
Característica Valor
Tipo de accesorio eléctrico/pieza de repuesto (EF005722) Otros
Tipo de accesorio mecánico/pieza de repuesto (EF005994) Otros
Accesorio (EF013236) Sí
Recambio (EF013237) No

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-USB-SA-150 Y7-147543 147543 EN_289241.pdf 3 Mbytes M22-USB-SA-150 Y7-147543 147543 EN_289241.pdf
