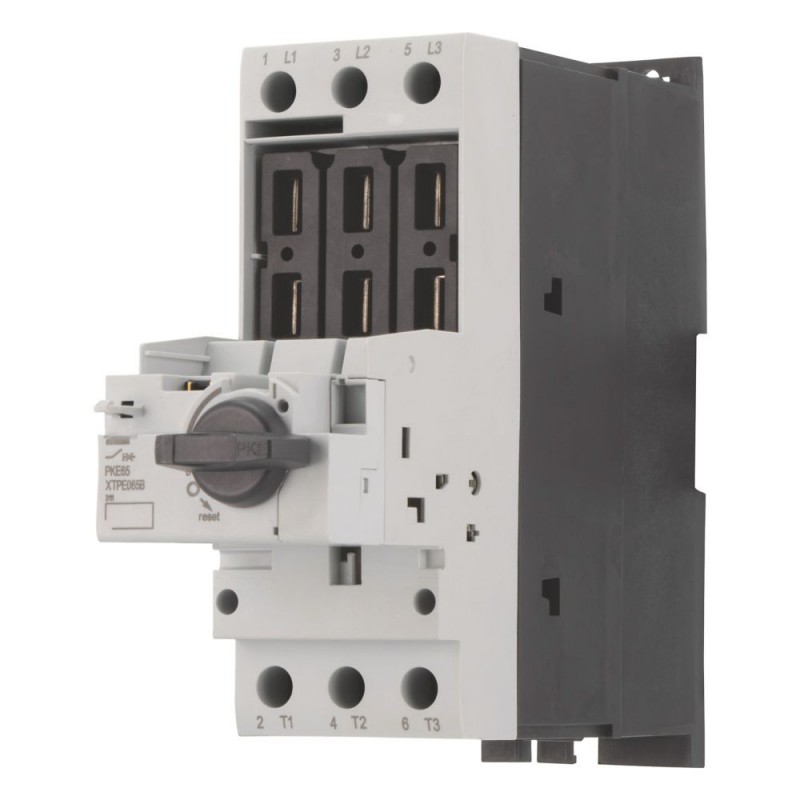

PKE65 138258 Y7-138258 EATON ELECTRIC Interruptor protector de motor electrónico 3 polos 65 A Aparato base
PKE65
138258
Y7-138258
EATON-MOELLER
Interruptor protector de motor electrónico; 3 polos; 65 A; Aparato base
Eaton Moeller® series PKE65 Circuit-breaker, Basic device with standard knob, Electronic, 65 A, Without overload releases
Dispositivo básico-interruptor automático de protección del motor, función de aislamiento, se puede ampliar sin herramientas con PKE-XTU... Unidades de control electrónico para la protección del motor o la protección del sistema/cable. Ampliable con contactos auxiliares, liberación de tensión, manijas de acoplamiento de puerta limitadoras de corriente.
Componentes industriales de baja tensión > Disyuntor de protección del motor
Interruptores Protectores de Motor Electrónicos
Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER
Comprados juntos habitualmente
▲Más vendidos
▲Más Información
▲Especificaciones generales
Product Name
Eaton Moeller® series PKE Motor-protective circuit-breaker
Catalog Number
138258
EAN
4015081350384
Product Length/Depth
187 mm
Product Height
162 mm
Product Width
55 mm
Product Weight
1.231 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-10
IEC 60947-4-1
UL 508
VDE
UL File No.: E36332
CE
IEC/EN 60947
UL
CSA
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA File No.: 165628
UL 60947-4-1
IEC/EN 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC 60947-4-1
UL 508
VDE
UL File No.: E36332
CE
IEC/EN 60947
UL
CSA
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA File No.: 165628
UL 60947-4-1
IEC/EN 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
Model Code
PKE65
Características y Funciones
Actuator type
Turn button
Features
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Fitted with:
Standard knob
Functions
Line and cable protection
Motor protection
Motor protection for heavy starting duty
System protection
Motor protection
Motor protection for heavy starting duty
System protection
Number of poles
Three-pole
Number of poles
Three-pole
General
Degree of protection
IP20
Terminals: IP00
Terminals: IP00
Lifespan, electrical
50,000 operations (at 400V, AC-3)
Lifespan, mechanical
30,000 Operations (Main conducting paths)
Operating frequency
60 Operations/h
Overload release current setting - min
0 A
Overload release current setting - max
65 A
Overvoltage category
III
Pollution degree
3
Product category
Motor protective circuit breaker
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Suitable for
Also motors with efficiency class IE3
Temperature compensation
-5 - 40 °C to IEC/EN 60947, VDE 0660
-25 - 55 °C, Operating range
-25 - 55 °C, Operating range
Condiciones ambientales y mecánicas
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Condiciones climáticas ambientales
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Secciones de conexión
Terminal capacity (flexible with ferrule)
2 x (0.75 - 25) mm², ferrule to DIN 46228
1 x (0.75 - 35) mm², ferrule to DIN 46228
1 x (0.75 - 35) mm², ferrule to DIN 46228
Terminal capacity (solid)
1 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
Terminal capacity (solid/stranded AWG)
14 - 2
Stripping length (main cable)
14 mm
Tightening torque
1 Nm, Screw terminals, Control circuit cables
3.3 Nm, Screw terminals, Main cable
3.3 Nm, Screw terminals, Main cable
Especificaciones eléctricas
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
65 A
Rated operational power at AC-3, 220/230 V, 50 Hz
0 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
0 kW
Rated operational voltage (Ue) - min
690 V
Rated operational voltage (Ue) - max
690 V
Rated uninterrupted current (Iu)
65 A
Clasificación de cortocircuito
Short-circuit release
Basic device fixed 15.5 x Iu, Trip Blocks
± 20% tolerance, Trip blocks
± 20% tolerance, Trip blocks
Capacidad de conmutación
Switching capacity
65 A, AC-3 up to 690 V
Comunicación
Connection
Screw terminals
Verificación del diseño
Equipment heat dissipation, current-dependent Pvid
12.9 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
4.3 W
Rated operational current for specified heat dissipation (In)
65 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Ajuste actual de liberación de sobrecarga (EF002336) | 0 A |
| Rango de ajuste de liberación instantánea de cortocircuito (EF007131) | 0 A |
| Con protección de sobrecarga térmica (EF006233) | No |
| Sensible a fallo de fase (EF007400) | No |
| Técnica de liberación (EF007007) | Electrónico |
| Tensión nominal de funcionamiento (EF001435) | 690 V |
| Intensidad nominal permanente Iu (EF001389) | 65 A |
| Potencia de funcionamiento nominal a 230 V CA-3 (EF007025) | 0 kW |
| Potencia de funcionamiento nominal en CA-3, 400 V (EF001364) | 0 kW |
| Tipo de conexión del circuito de corriente principal (EF006819) | Conexión roscada |
| Ejecución del elemento accionador (EF006976) | Botón giratorio (mando) |
| Construcción del dispositivo (EF008240) | Técnica integrada fija para dispositivo integrado |
| Con interruptor auxiliar integrado (EF001387) | No |
| Con liberación de baja tensión integrada (EF001390) | No |
| Número de polos (EF001391) | 3 |
| Corriente límite nominal de cortocircuito en la corriente de corte a 400 V CA (EF007049) | 0 kA |
| Grado de protección (IP) (EF005474) | IP20 |
| Altura (EF000040) | 162 mm |
| Anchura (EF000008) | 55 mm |
| Profundidad (EF000049) | 187 mm |
