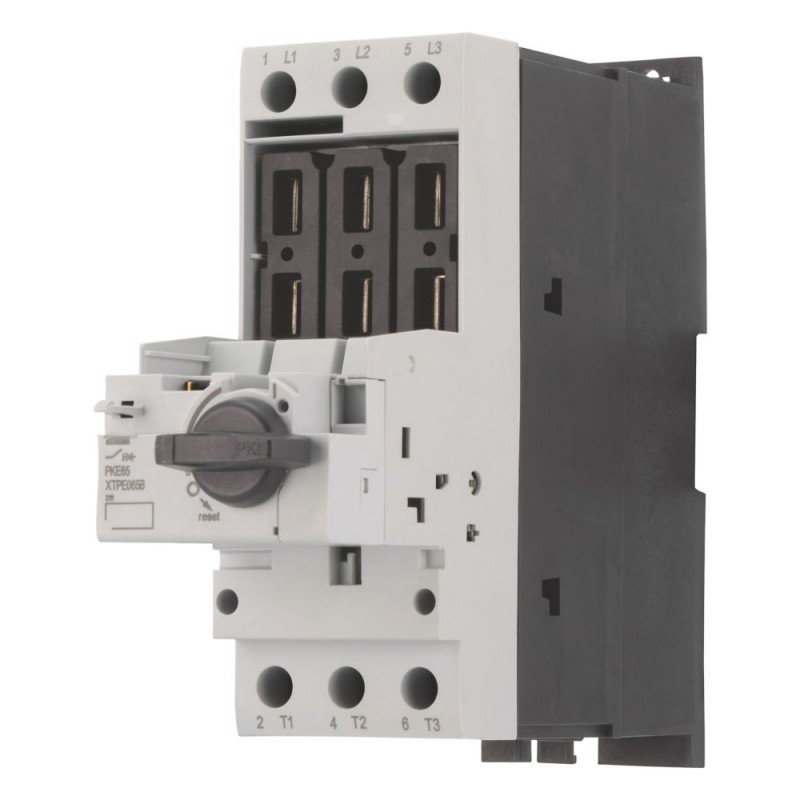

PKE65 138258 Y7-138258 EATON ELECTRIC Interruttore automatico, apparecchio base 3p, per unità di sgancio sfi..
PKE65
138258
Y7-138258
EATON-MOELLER
Interruttore automatico, apparecchio base 3p, per unità di sgancio sfilabile
Interruttore elettronico di protezione del motore a 3 poli 65 A Dispositivo di base
Eaton Moeller® series PKE65 Circuit-breaker, Basic device with standard knob, Electronic, 65 A, Without overload releases
Dispositivo di base: interruttore automatico di protezione del motore, funzione di isolamento, può essere ampliato senza attrezzi con PKE-XTU... Centraline elettroniche per la protezione del motore o dell'impianto/cavo. Espandibile con contatti ausiliari, sganciatore di tensione, maniglie di accoppiamento porta limitatrici di corrente.
Apparecchi elettrici a bassa tensione > Interruttore automatico salva motore
Interruttori di protezione motore elettronici
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series PKE Motor-protective circuit-breaker
Catalog Number
138258
EAN
4015081350384
Product Length/Depth
187 mm
Product Height
162 mm
Product Width
55 mm
Product Weight
1.231 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-10
IEC 60947-4-1
UL 508
VDE
UL File No.: E36332
CE
IEC/EN 60947
UL
CSA
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA File No.: 165628
UL 60947-4-1
IEC/EN 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC 60947-4-1
UL 508
VDE
UL File No.: E36332
CE
IEC/EN 60947
UL
CSA
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA File No.: 165628
UL 60947-4-1
IEC/EN 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
Model Code
PKE65
Features & Functions
Actuator type
Turn button
Features
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Fitted with:
Standard knob
Functions
Line and cable protection
Motor protection
Motor protection for heavy starting duty
System protection
Motor protection
Motor protection for heavy starting duty
System protection
Number of poles
Three-pole
General
Degree of protection
IP20
Terminals: IP00
Terminals: IP00
Lifespan, electrical
50,000 operations (at 400V, AC-3)
Lifespan, mechanical
30,000 Operations (Main conducting paths)
Operating frequency
60 Operations/h
Overload release current setting - min
0 A
Overload release current setting - max
65 A
Overvoltage category
III
Pollution degree
3
Product category
Motor protective circuit breaker
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Suitable for
Also motors with efficiency class IE3
Temperature compensation
-5 - 40 °C to IEC/EN 60947, VDE 0660
-25 - 55 °C, Operating range
-25 - 55 °C, Operating range
Ambient conditions, mechanical
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
Terminal capacity (flexible with ferrule)
2 x (0.75 - 25) mm², ferrule to DIN 46228
1 x (0.75 - 35) mm², ferrule to DIN 46228
1 x (0.75 - 35) mm², ferrule to DIN 46228
Terminal capacity (solid)
1 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
2 x (0.75 - 16) mm²
Terminal capacity (solid/stranded AWG)
14 - 2
Stripping length (main cable)
14 mm
Tightening torque
1 Nm, Screw terminals, Control circuit cables
3.3 Nm, Screw terminals, Main cable
3.3 Nm, Screw terminals, Main cable
Electrical rating
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
65 A
Rated operational power at AC-3, 220/230 V, 50 Hz
0 kW
Rated operational voltage (Ue) - min
690 V
Rated operational voltage (Ue) - max
690 V
Rated uninterrupted current (Iu)
65 A
Short-circuit rating
Short-circuit release
Basic device fixed 15.5 x Iu, Trip Blocks
± 20% tolerance, Trip blocks
± 20% tolerance, Trip blocks
Switching capacity
Switching capacity
65 A, AC-3 up to 690 V
Communication
Connection
Screw terminals
Design verification
Equipment heat dissipation, current-dependent Pvid
12.9 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
4.3 W
Rated operational current for specified heat dissipation (In)
65 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| campo di corrente dell'interruttore di sovraccarico (EF002336) | 0 A |
| intervallo di regolazione dell'attivatore di corto circuito non ritardato (EF007131) | 0 A |
| con protezione termica da sovratensioni (EF006233) | No |
| sensibile a guasto di fase (EF007400) | No |
| tecnica di intervento (EF007007) | elettronico |
| tensione d'esercizio nominale (EF001435) | 690 V |
| corrente permanente nominale Iu (EF001389) | 65 A |
| potenza d'esercizio nominale per AC-3, 230 V (EF007025) | 0 kW |
| potenza d'esercizio nominale per AC-3, 400 V (EF001364) | 0 kW |
| tipo di collegamento circuito elettrico principale (EF006819) | raccordo a vite |
| tipo di elemento di azionamento (EF006976) | manopola rotativa |
| tipologia costruttiva dell'apparecchio (EF008240) | apparecchio da incasso, tecnica a installazione fissa |
| con interruttore ausiliario integrato (EF001387) | No |
| con sganciatore di minima tensione integrato (EF001390) | No |
| numero di poli (EF001391) | 3 |
| corrente limite nominale di disinserzione al corto circuito a 400 V, AC (EF007049) | 0 kA |
| grado di protezione (IP) (EF005474) | IP20 |
| altezza (EF000040) | 162 mm |
| larghezza (EF000008) | 55 mm |
| profondità (EF000049) | 187 mm |
