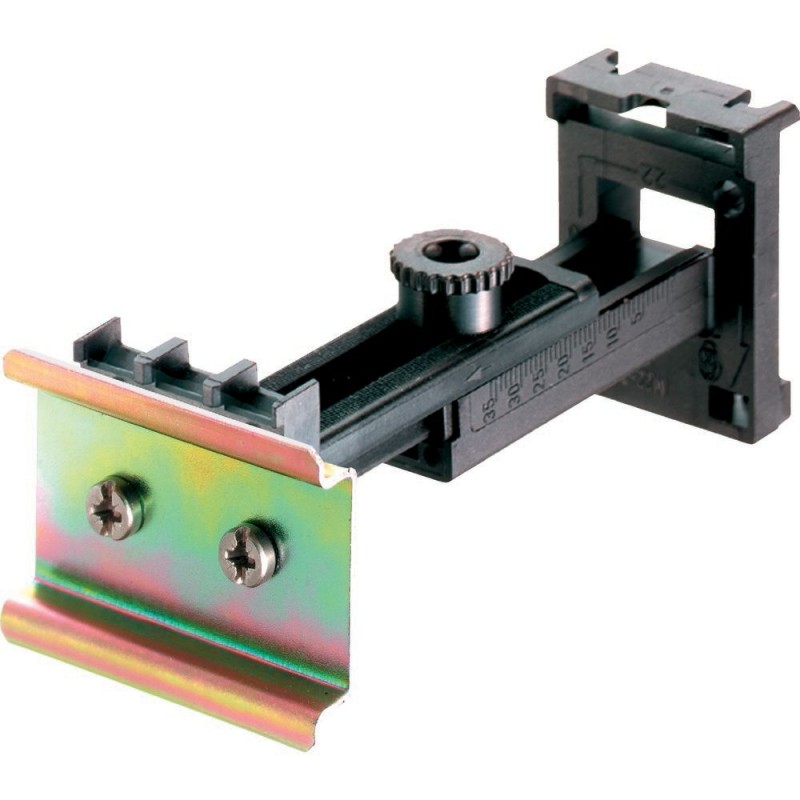

M22-TA 226161 Y7-226161 EATON ELECTRIC Adaptador Telescopico Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

M22-TA 226161 Y7-226161 EATON ELECTRIC Adaptador Telescopico

M22-TA

226161

Y7-226161

EATON-MOELLER

Adaptador Telescopico

Eaton Moeller® series M22 Telescopic adapters

Adaptador telescópico para ajustar la profundidad de montaje con el montaje trasero, ajustable de 115 a 155 mm, con tornillo y encaje con, con riel de copa IEC/EN 60715 ancho 44 mm, para aparamenta peso máx. 0,3 kg

Más detalles


Componentes industriales de baja tensión > Accesorios para dispositivos de control

Interruptores Protectores de Motor

Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON-MOELLER

Precio total: $14.51
Precio unitario: $14.51
Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Si nuestro precio no es el mejor solicítenos presupuesto Solicitar presupuesto

Más vendidos

▲

Más Información

▲


Especificaciones generales

Product Name
Eaton Moeller® series M22 Accessory Telescopic clip
Catalog Number
226161
EAN
4015082261610
Product Length/Depth
80 mm
Product Height
40 mm
Product Width
45 mm
Product Weight
0.043 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 94-91
EN 60947-5
CSA Std. C22.2 No. 14-05
IEC 60947-5
UL 508
VDE
UL
CE
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC/EN 60947-5
CSA
UL File No.: E29184
Model Code
M22-TA

Features & Functions

Fitted with:
35 mm top-hat rail (according to IEC/EN 60715)
Functions
For equalization of the mounting depth of rear mounting devices in CI enclosures, and in cabinets with mounting depths of 115 - 155 mm
For mounting of EASY, FAZ, PKZ, DIL etc. weighing ≤ 0.3 kg

General

Accessory/spare part type
Accessory
Product category
Product category
  • Accessories
  • Compact PLCs
  • Control relay easyRelay
Used with
PKE
EC4P
easy200/500/700/800
PKZM0
MFD-CP8

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 226161 Interruptores de baja tensión (EC002024)
Característica Valor
Tipo de accesorio eléctrico/pieza de repuesto (EF005722) Otros
Tipo de accesorio mecánico/pieza de repuesto (EF005994) Otros
Accesorio (EF013236) Sí
Recambio (EF013237) No

Datasheet - PDF

▲
Título: Tamaño: Tipo:
PDF CATALOGO EATON CONTROL Y AUTOMATIZACION ES.pdf 9 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-TA Y7-226161 226161 EN_289241.pdf 3 Mbytes M22-TA Y7-226161 226161 EN_289241.pdf
