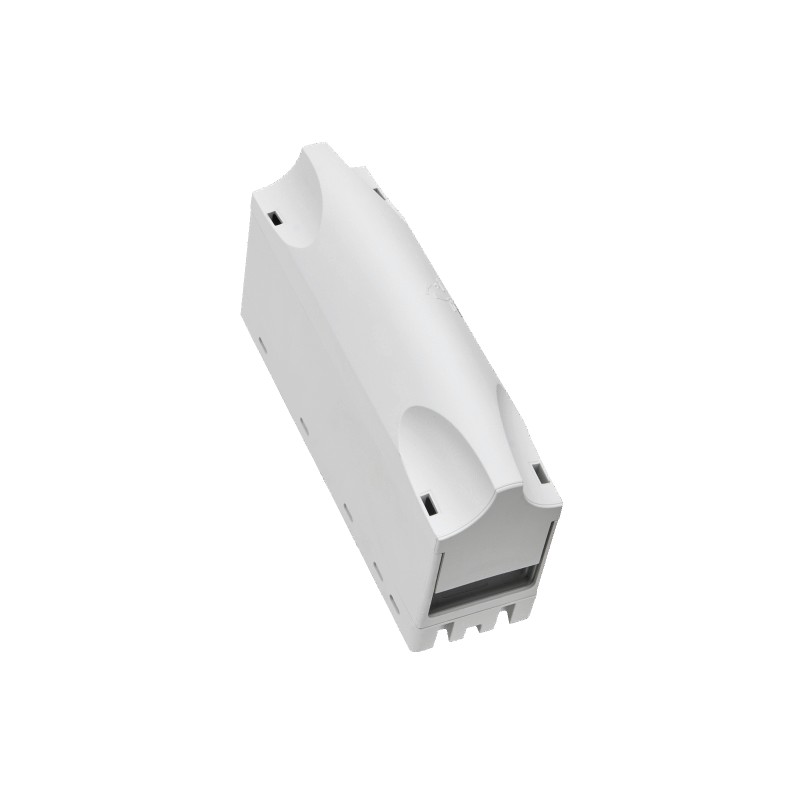

01593 WÖHNER Crito CrossBoard, 125A, connection module for cable from 6 to 50mm2 per flange and also junctio..
01593
WÖHNER
Crito CrossBoard, 125A, connection module for cable from 6 to 50mm2 per flange and also junction bridge of two CrossBoard platforms, An-45mm
connection module 50 mm², 3-pole (01593)
Home > WÖHNER
Brand new product in its original packaging covered by the warranties and certifications provided by WÖHNER
Often bought together
▲Best sellers
▲More info
▲Part No.: 01593
CRITO®CrossBoard
connection module 50 mm², 3-pole
with box terminals 6 - 50 mm² / AWG 10 - AWG 1
System
CrossBoard®
| Product group | 07 |
| Subgroup | 42 |
| pack size | 1 |
| EAN | 4021267015930 |
Advantages of the product
direct connection to the CrossBoard, cover included
capable of feeding (up to 125 A) 1 or 2 CrossBoards simultaneously with balanced or unbalanced load on the boards.
can be used without cables as a bridge connection between 2 CrossBoards up to 125 A. Feeding a third CrossBoard with cables is acceptable, but the total current cannot exceed 125 A.
touch-safe
CRITO® unlockable from top or bottom
| Katalogseite US | US 2020 : 1.1 |
| eCl@ss 6.1 | 27141146 |
| eCl@ss 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WOEHNER EN.pdf | 5 Mbytes |
|
