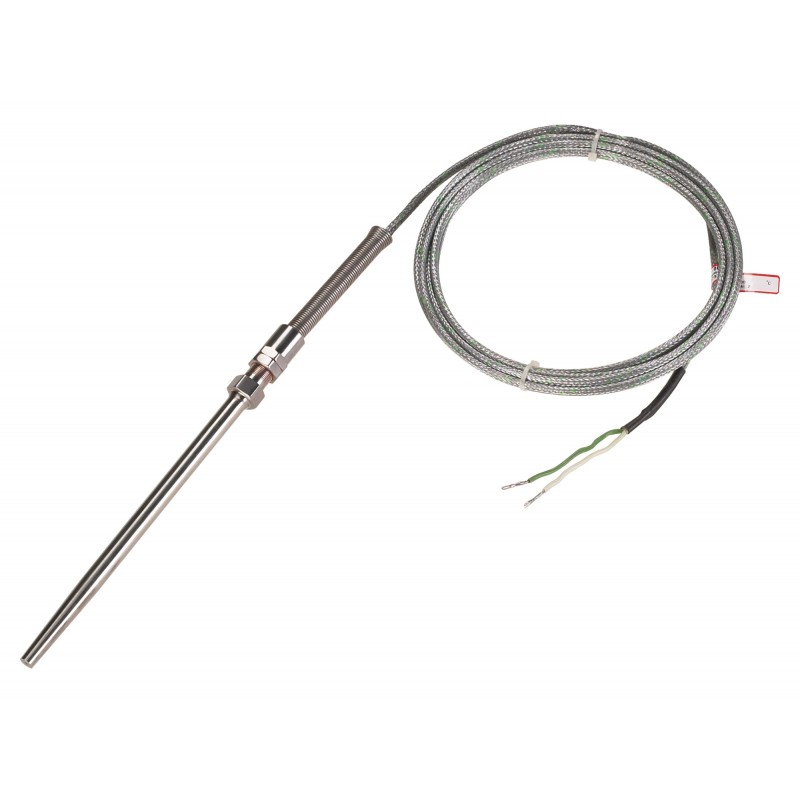

087U4198 DANFOSS CONTROLES INDUSTRIALES Temperature sensor, MBT 5111
087U4198
DANFOSS INDUSTRIAL AUTOMATION
Temperature sensor, MBT 5111
Temperature sensor, MBT 5111, 130 mm, NPT,1/4-18, ANSI/ASME B1.20.1
Temperature sensors - DANFOSS INDUSTRIAL AUTOMATION > Temperature Sensors Type MBT 3270 - DANFOSS INDUSTRIAL AUTOMATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS INDUSTRIAL AUTOMATION
Best sellers
▲More info
▲Temperature range [°C]: -50 - 800, Thermocouple: 2 x NiCr-Ni, Type K, Output signal: mV, Protection tube material: AISI 316 TI, Electrical connection: Cable, Electrical connection size: 4 wire
Product details
| Gross weight | 0.629 Kilogram |
| Net weight | 0.566 Kilogram |
| Volume | 0.972 Liter |
| EAN | 5702428898126 |
| Type | MBT 5111 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Gross weight | 0.629 Kilogram |
| Net weight | 0.566 Kilogram |
| Volume | 0.972 Liter |
| EAN | 5702428898126 |
| Type | MBT 5111 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Ambient temperature max. [°C] | 200 °C |
| Ambient temperature max. [°F] | 392 °F |
| Approval | CE |
| Cable length [in] | 394 in |
| Cable length [m] | 10 m |
| Cable tempr. range [°C] [max] | 260 °C |
| Cable tempr. range [°C] [min] | -60 °C |
| Cable tempr. range [°F] [max] | 500 °F |
| Cable tempr. range [°F] [min] | -76 °F |
| Cable type | PFA TC, screened |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection material | Brass |
| Connection standard | ANSI/ASME B1.20 |
| Connection type | NPT |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 4 wire |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Extension length [in] | 5.1 in |
| Extension length [mm] | 130 mm |
| In scope of WEEE | Yes |
| Insertion length [in] | 5.1 in |
| Insertion length [mm] | 130 mm |
| Insertion type | Variable |
| Output signal | mV |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Brass |
| Process connection size | 1/4-18 |
| Process connection standard | ANSI/ASME B1.20.1 |
| Process connection type | NPT |
| Protection tube diameter [in] | 0.236 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 6992421c-ca63-4034-a839-d31715530d6d |
| SCIP dossier product name | MBT 5111/5114 |
| Sensor element standard | EN 60584-2 |
| Sensor element tolerance | Class 2 |
| Sensor Insert | Fixed |
| Temperature range [°C] [max] | 800 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 1472 °F |
| Temperature range [°F] [min] | -58 °F |
| Thermocouple | 2 x NiCr-Ni, Type K |
| Thermocouple design std. | EN 61515 |
| Thermocouple tolerance | EN 60584-2 Class 2 |
| Type designation | 00 MBT 5111-1100-0130-111-1 01 -1000-000-0000 |
| Ambient temperature max. [°C] | 200 °C |
| Ambient temperature max. [°F] | 392 °F |
| Approval | CE |
| Cable length [in] | 394 in |
| Cable length [m] | 10 m |
| Cable tempr. range [°C] [max] | 260 °C |
| Cable tempr. range [°C] [min] | -60 °C |
| Cable tempr. range [°F] [max] | 500 °F |
| Cable tempr. range [°F] [min] | -76 °F |
| Cable type | PFA TC, screened |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection material | Brass |
| Connection standard | ANSI/ASME B1.20 |
| Connection type | NPT |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 4 wire |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Extension length [in] | 5.1 in |
| Extension length [mm] | 130 mm |
| In scope of WEEE | Yes |
| Insertion length [in] | 5.1 in |
| Insertion length [mm] | 130 mm |
| Insertion type | Variable |
| Output signal | mV |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Brass |
| Process connection size | 1/4-18 |
| Process connection standard | ANSI/ASME B1.20.1 |
| Process connection type | NPT |
| Protection tube diameter [in] | 0.236 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 6992421c-ca63-4034-a839-d31715530d6d |
| SCIP dossier product name | MBT 5111/5114 |
| Sensor element standard | EN 60584-2 |
| Sensor element tolerance | Class 2 |
| Sensor Insert | Fixed |
| Temperature range [°C] [max] | 800 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 1472 °F |
| Temperature range [°F] [min] | -58 °F |
| Thermocouple | 2 x NiCr-Ni, Type K |
| Thermocouple design std. | EN 61515 |
| Thermocouple tolerance | EN 60584-2 Class 2 |
| Type designation | 00 MBT 5111-1100-0130-111-1 01 -1000-000-0000 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS Fluid Control, Pressure and Temperature Monitoring and Control EN .pdf | 29 Mbytes |
|
| PDF TEMPERATURE SENSORS EN .pdf | 465 Kbytes |
|
| 087U4198 087U4198 FR_087U4042.pdf | 1 Mbytes |
|
