SKVS 13,5/GL 10060618 WISKA Light grey cable glands RAL 7035, PA IP68, flexible protection input range from ..
SKVS 13,5/GL
10060618
WISKA
25
Light grey cable glands RAL 7035, PA IP68, flexible protection input range from 6.0 to 12.0mm, pg.13 thread

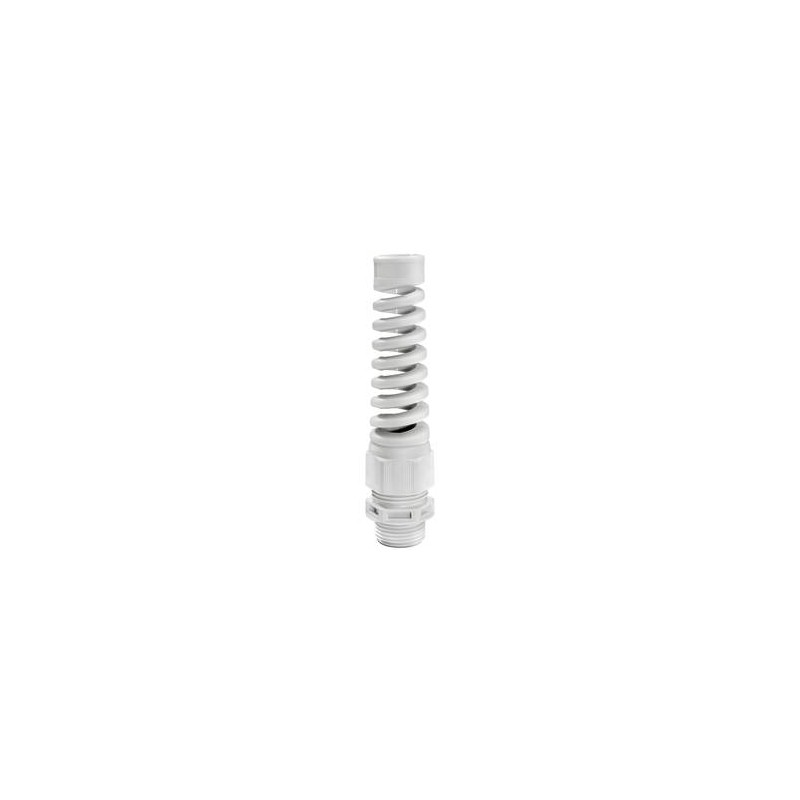

Cable gland with bend protection, polyamide, Pg 13,5 RAL 7035
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -20 °C |
| Temp. range max | 80 °C |
| Glow wire test | 750 °C |
| Thread type | PG |
| Ø Connection thread D | 13,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 12 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 105 mm |
| Type of cable anchorage | A |
| Product Color | RAL 7035 |
| Type | SKVS 13,5 |
| Order no. RAL 7035 | 10060618 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| SKVS 13,5/GL 10060618 EN_10060618.pdf | 316 Kbytes |
|
