SMKV 7
10062061
WISKA
100
Metal hexagonal cable glands, IP54, range from 5.0 to 7.0mm, thread PG 07

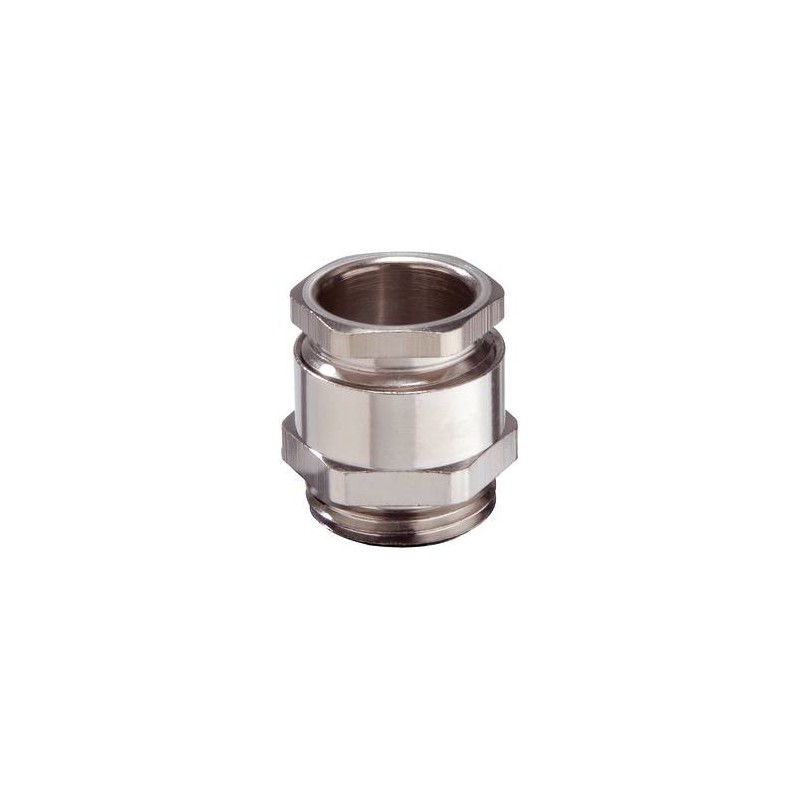

Cable gland hexagonal, brass nickel-plated, Pg 7, with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Brass nickel-plated |
Material sealing gasket | Soft rubber |
Temp. range min | -40 °C |
Temp. range max | 70 °C |
Protection class | IP54 |
Thread type | PG |
Ø Connection thread D | 7 |
Length screw-in thread L | 5 mm |
Ø cable diameter min | 5 mm |
Ø cable diameter max | 7 mm |
Key width SW1 | 13 mm |
Key width SW2 | 14 mm |
Collar diameter E1 | 15 mm |
Collar diameter E2 | 16 mm |
Total length TL | 20,5 mm |
Impact category | 6 |
Surface | Nickel-plated |
Order no. nickel-plated | 10062061 |
Type | SMKV 7 |
Packing unit | 100 |
ETIM-Classification | EC000441 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE WISKA EN.pdf | 12 Mbytes | |
SMKV 7 10062061 EN_10062061.pdf | 261 Kbytes |
