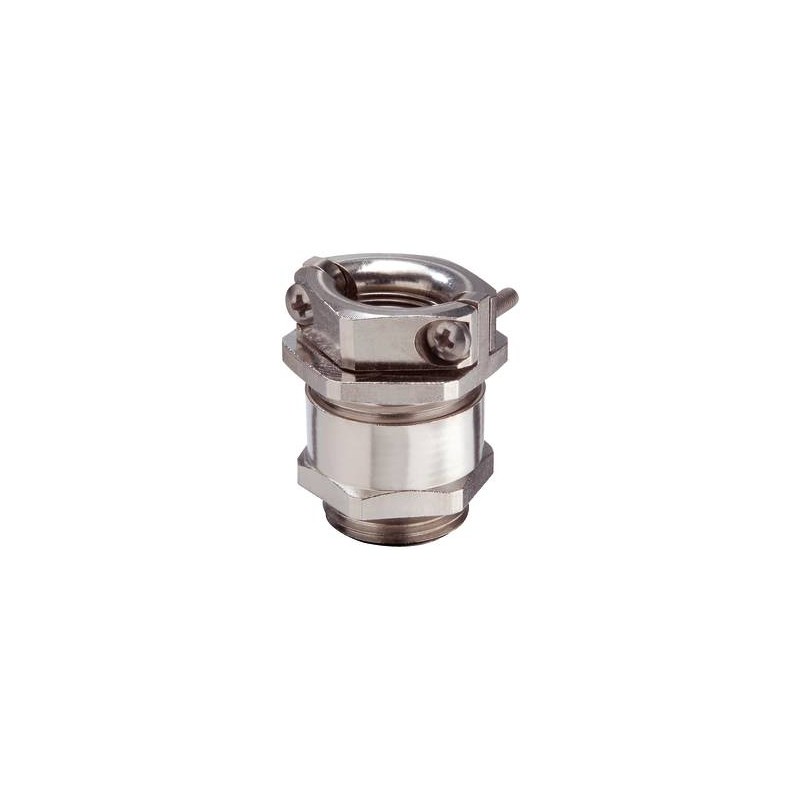

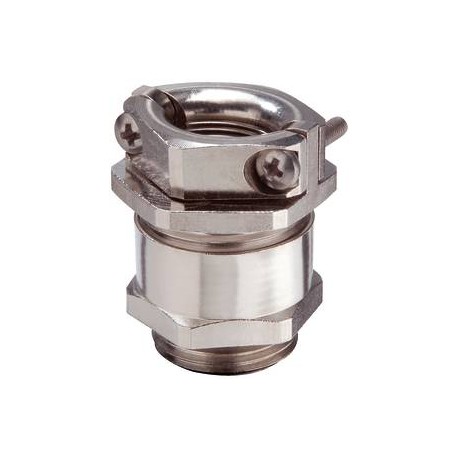

SKMKV 16 10062135 WISKA Metal hexagonal cable glands + IP54 flange clamping, 6.5 to 16.0mm range, Pg.16 thre..
SKMKV 16
10062135
WISKA
50
Metal hexagonal cable glands + IP54 flange clamping, 6.5 to 16.0mm range, Pg.16 thread
Cable gland hexagonal, brass nickel-plated, Pg 16 with external strain relief
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -40 °C |
| Temp. range max | 70 °C |
| Protection class | IP54 |
| Thread type | PG |
| Ø Connection thread D | 16 |
| Length screw-in thread L | 6,5 mm |
| Ø cable diameter min | 6,5 mm |
| Ø cable diameter max | 16 mm |
| Key width SW1 | 27 mm |
| Key width SW2 | 24 mm |
| Collar diameter E1 | 30 mm |
| Collar diameter E2 | 27 mm |
| Total length TL | 34 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062135 |
| Type | SKMKV 16 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKMKV 16 10062135 EN_10062135.pdf | 284 Kbytes |
|
