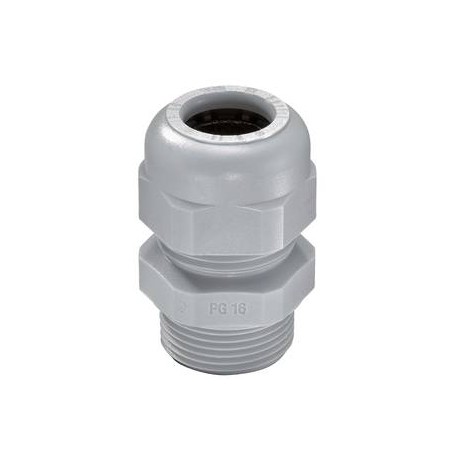

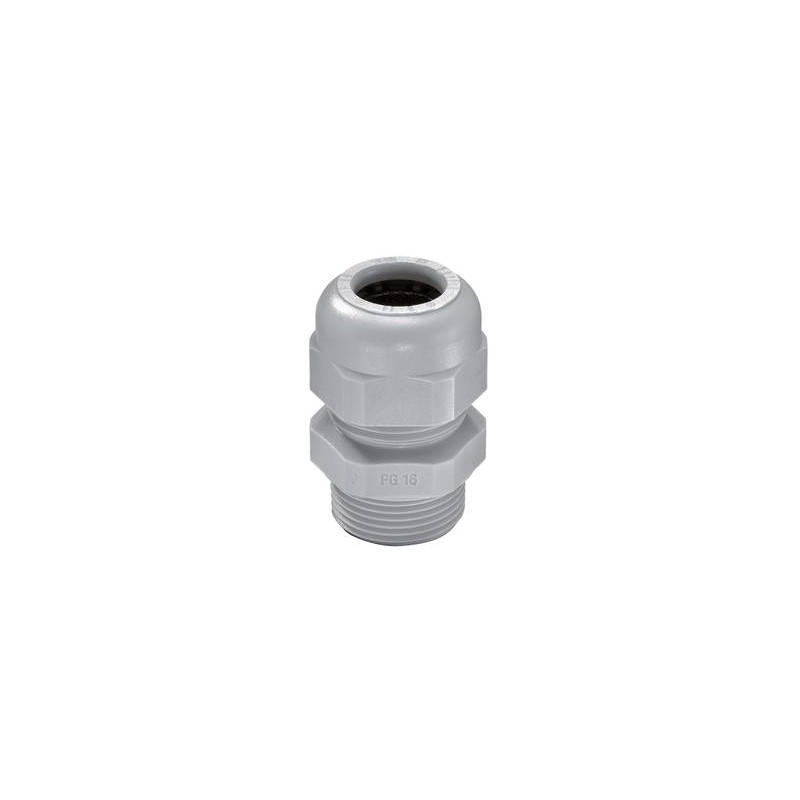

SKV 16/GL 10066005 WISKA Light grey cable glands RAL 7035, PA IP68, range from 8.0 to 14.0mm, thread PG 16
SKV 16/G
10066005
WISKA
50
Light grey cable glands RAL 7035, PA IP68, range from 8.0 to 14.0mm, thread PG 16
Cable gland, polyamide, Pg 16 RAL 7001
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min) |
| Thread type | PG |
| Ø Connection thread D | 16 |
| Length screw-in thread L | 11 mm |
| Ø cable diameter min | 8 mm |
| Ø cable diameter max | 14 mm |
| Key width SW | 27 mm |
| Collar diameter (E) | 29 mm |
| Total length TL | 38 mm - 44 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Product Color | RAL 7001 |
| Order no. RAL 7001 | 10066005 |
| Type | SKV 16 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| SKV 16/G 10066005 EN_10066005.pdf | 260 Kbytes |
|
