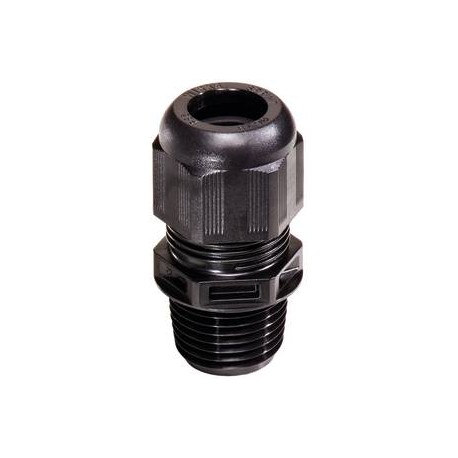

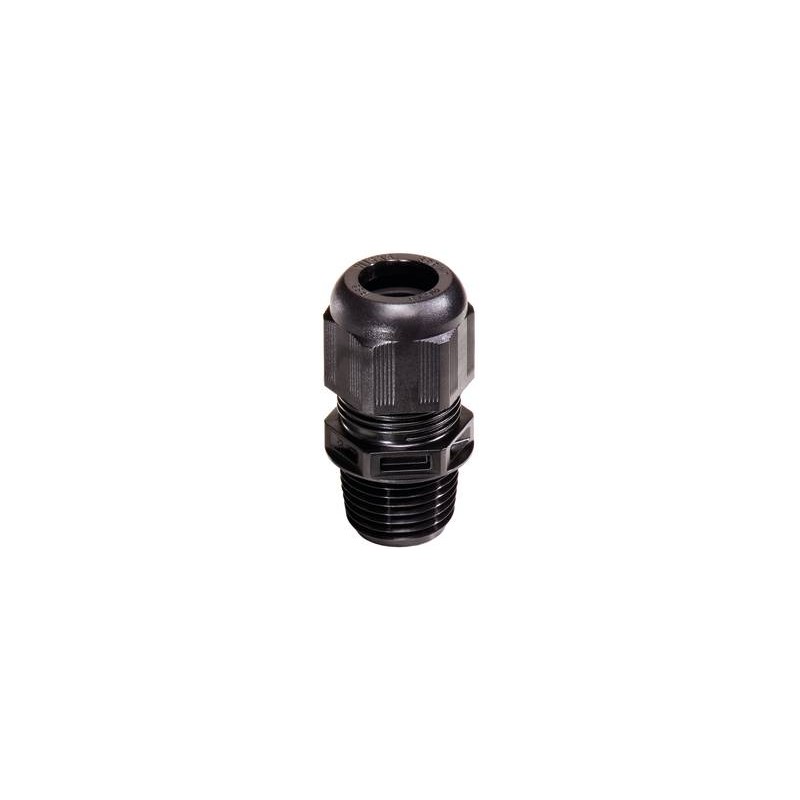

NSKV 1 1/2 LT/B 10061953 WISKA PA cable glands, black RAL 9005 IP68 -60oC, range from 21.0mm to 35.0mm, NPT ..
NSKV 1 1/2 LT/B
10061953
WISKA
4
PA cable glands, black RAL 9005 - IP68 -60oC, range from 21.0mm to 35.0mm, NPT thread 1-1/2
Cable gland LowTemp, polyamide, NPT 1 1/2", RAL 9005
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | NPT |
| Ø Connection thread D | 1 1/2" |
| Length screw-in thread L | 18 mm |
| Ø cable diameter min | 21 mm |
| Ø cable diameter max | 35 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 61 mm |
| Total length TL | 65 mm - 79 mm |
| Glow wire test | 750 °C |
| Type of cable anchorage | A |
| Install. torques fitting | 30 N m |
| Install. torques cap nut | 30 N m |
| Product Color | RAL 9005 |
| Order no. RAL 9005 | 10061953 |
| Type | NSKV 1 1/2 LT |
| Packing unit | 4 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| NSKV 1 1/2 LT/B 10061953 EN_10061953.pdf | 362 Kbytes |
|
