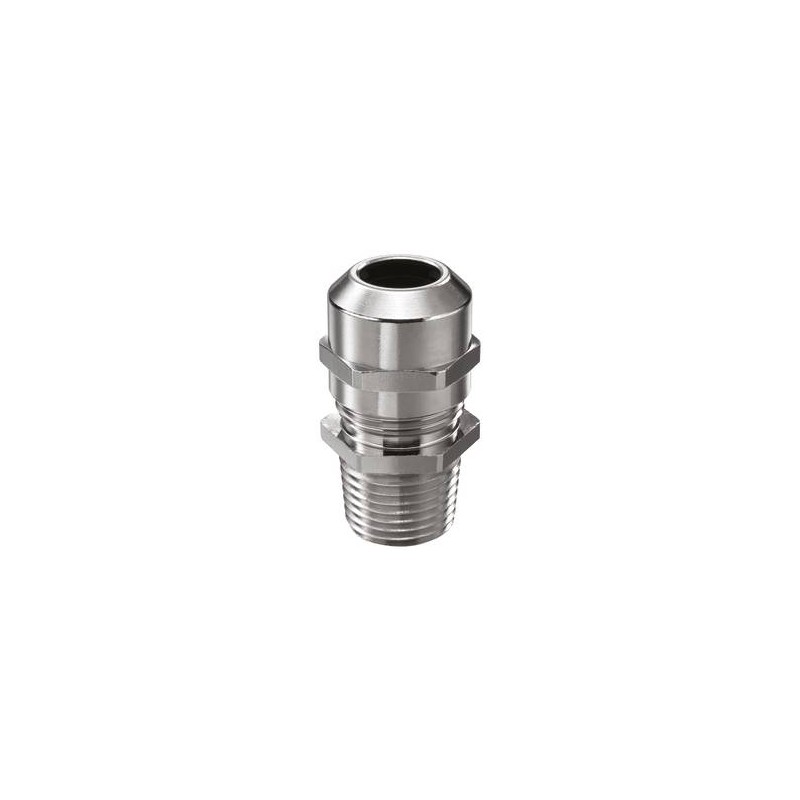

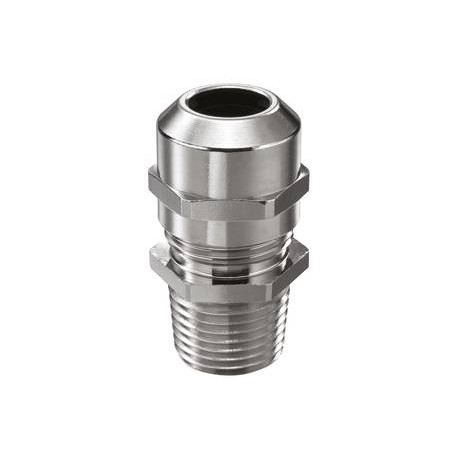

NMSKV 1 10065484 WISKA IP68 metal cable glands, range from 13.0mm to 21.0mm, NPT thread 1
NMSKV 1
10065484
WISKA
25
IP68 metal cable glands, range from 13.0mm to 21.0mm, NPT thread 1
Cable gland, brass nickel-plated, 1"
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | NPT |
| Ø Connection thread D | 1" |
| Length screw-in thread L | 20 mm |
| Ø cable diameter min | 13 mm |
| Ø cable diameter max | 21 mm |
| Ø cable diameter UL | 14,6 mm - 19,5 mm |
| Key width SW | 36 mm |
| Collar diameter (E) | 40 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 20 N m |
| Install. torques cap nut | 20 N m |
| Impact category | 6 |
| Total length TL | 46 mm - 53 mm |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065484 |
| Type | NMSKV 1 |
| Packing unit | 25 |
| ETIM-Classification | EC000441 |
| Remarks: When using a locknut NMMU, an additional connection thread gasket EADR must be used to achieve protection class IP69 / IP68. | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| NMSKV 1 10065484 EN_10065484.pdf | 357 Kbytes |
|
