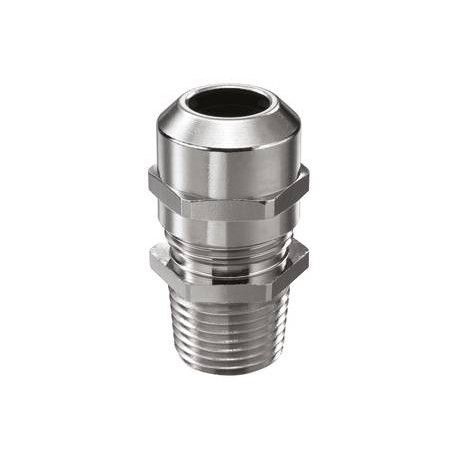

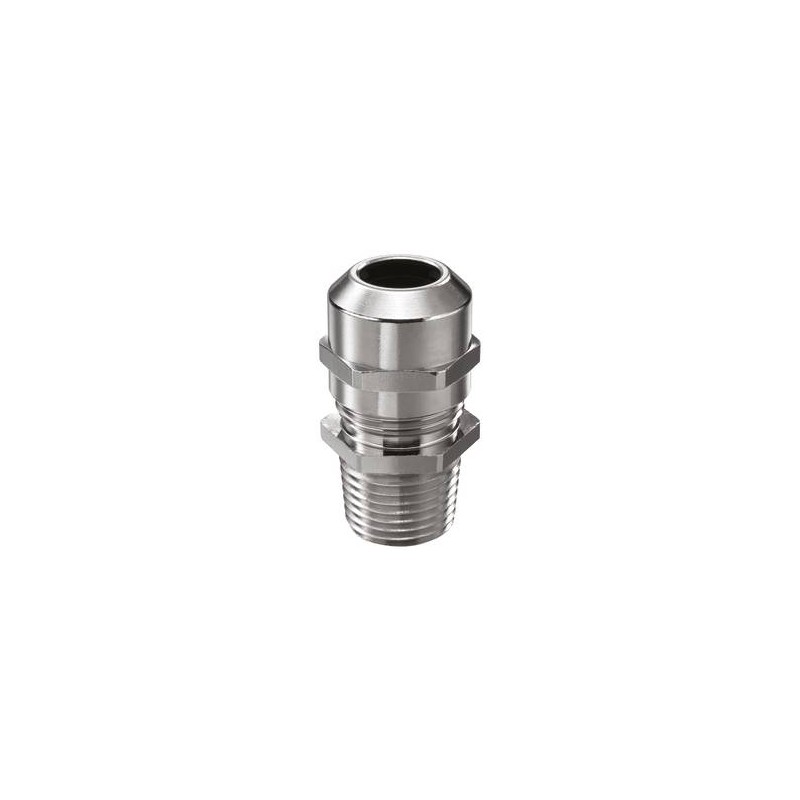

NMSKV 3/8 10065481 WISKA IP68 metal cable glands, range from 4.5mm to 10.0mm, NPT 3/8 thread
NMSKV 3/8
10065481
WISKA
50
IP68 metal cable glands, range from 4.5mm to 10.0mm, NPT 3/8 thread
Cable gland, brass nickel-plated, NPT 3/8"
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | NPT |
| Ø Connection thread D | 3/8" |
| Length screw-in thread L | 13 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 6 |
| Total length TL | 35 mm - 42 mm |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10065481 |
| Type | NMSKV 3/8 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
| Remarks: When using a locknut NMMU, an additional connection thread gasket EADR must be used to achieve protection class IP69 / IP68. | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| NMSKV 3/8 10065481 EN_10065481.pdf | 356 Kbytes |
|
