View larger

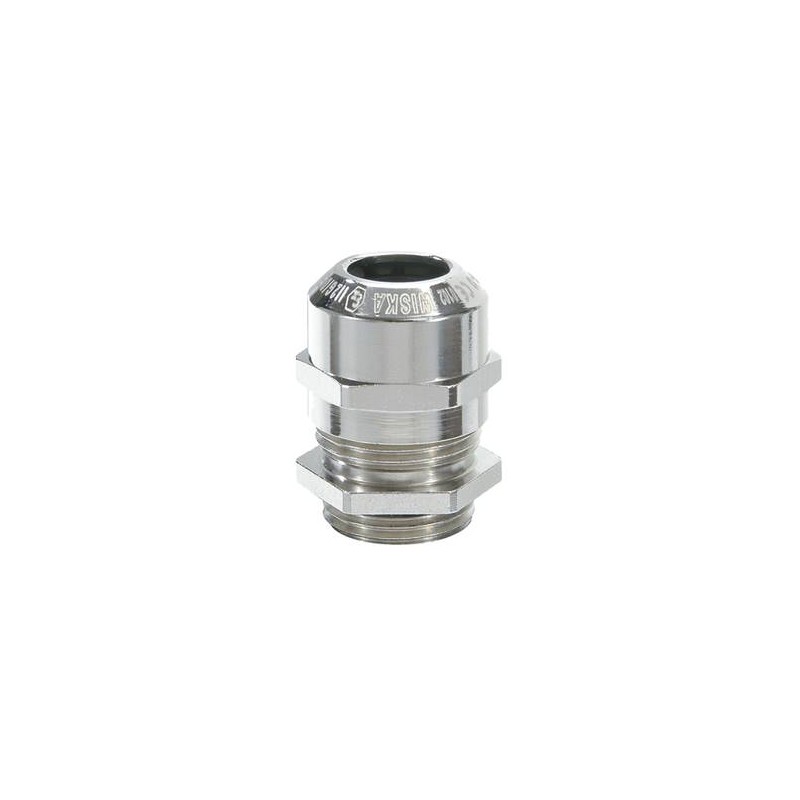

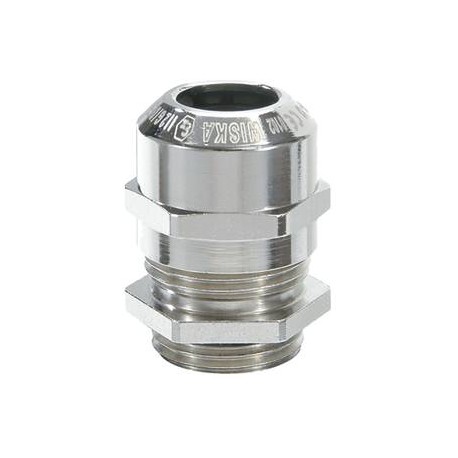

NMSKE 3/8 10101083 WISKA METAL cable glands "ATEX" IP68, range from 5.0mm to 10.0mm, NPT 3/8 thread
NMSKE 3/8
10101083
WISKA
50
METAL cable glands "ATEX" IP68, range from 5.0mm to 10.0mm, NPT 3/8 thread
Ex-cable gland, brass nickel-plated, NPT 3/8"
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material clamping cage | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Thread type | NPT |
| Ø Connection thread D | 3/8" |
| Length screw-in thread L | 13 mm |
| Ø cable diameter min | 5 mm |
| Ø cable diameter max | 10 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 35 mm - 42 mm |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10101083 |
| Type | NMSKE 3/8 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
| Remarks: When using a locknut NMMU, an additional connection thread gasket EADR must be used to achieve protection class IP66 / IP68. | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| NMSKE 3/8 10101083 EN_10101083.pdf | 329 Kbytes |
|
