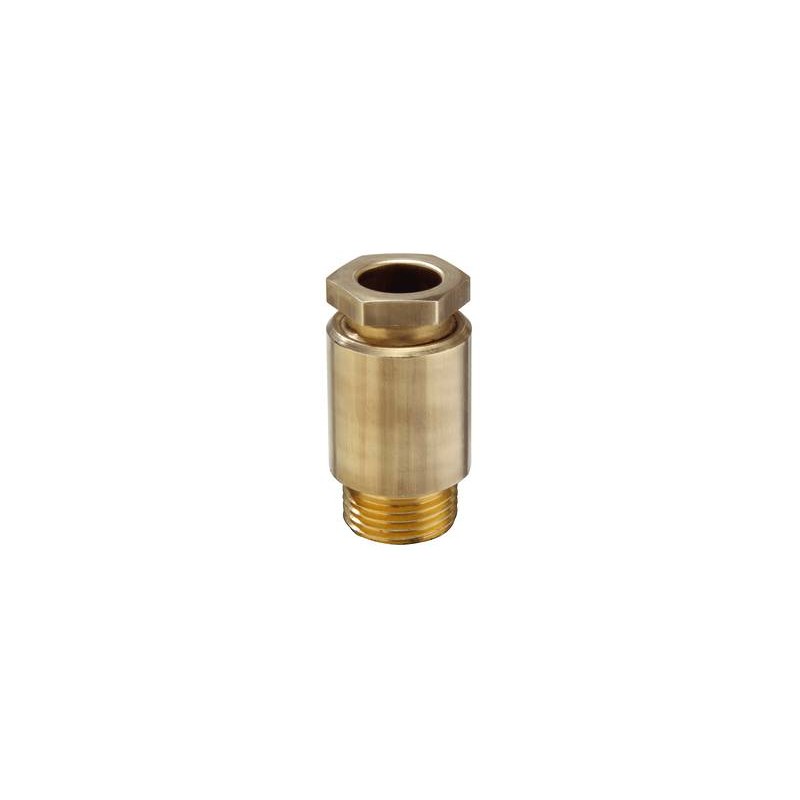

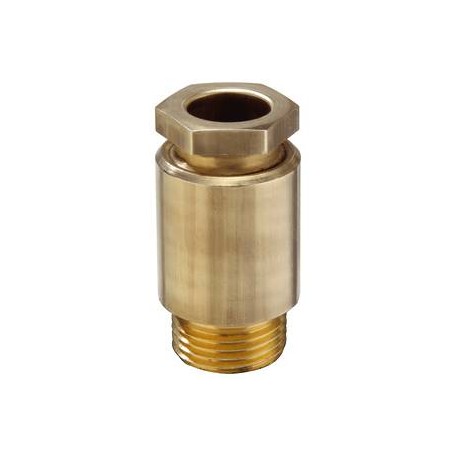

KVM 80-Z64*/lb 10010858 WISKA Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range 62 to 66m..
KVM 80-Z64*/lb
10010858
WISKA
Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range 62 to 66mm, thread M80
Cable gland, brass, DIN 89280, M80
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass |
| Material sealing gasket | EPDM |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 80 |
| Lead | 2 |
| Length screw-in thread L | 18 mm |
| Ø cable diameter min | 62 mm |
| Ø cable diameter max | 66 mm |
| Key width SW | 85 mm |
| Collar diameter (E) | 91 mm |
| Total length TL | 79 mm |
| Install. torques fitting | 30 N m |
| Install. torques cap nut | 30 N m |
| Impact category | 6 |
| Advice | * Similar to DIN 89280 |
| Surface | Bright |
| Order no. bright | 10010858 |
| Type | KVM 80-Z64 |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| KVM 80-Z64*/lb 10010858 EN_10010858.pdf | 369 Kbytes |
|
