KEM 50/63
10063576
WISKA
5
Light grey RAL 7035 thread amplifier, PA external thread M50, interior M63

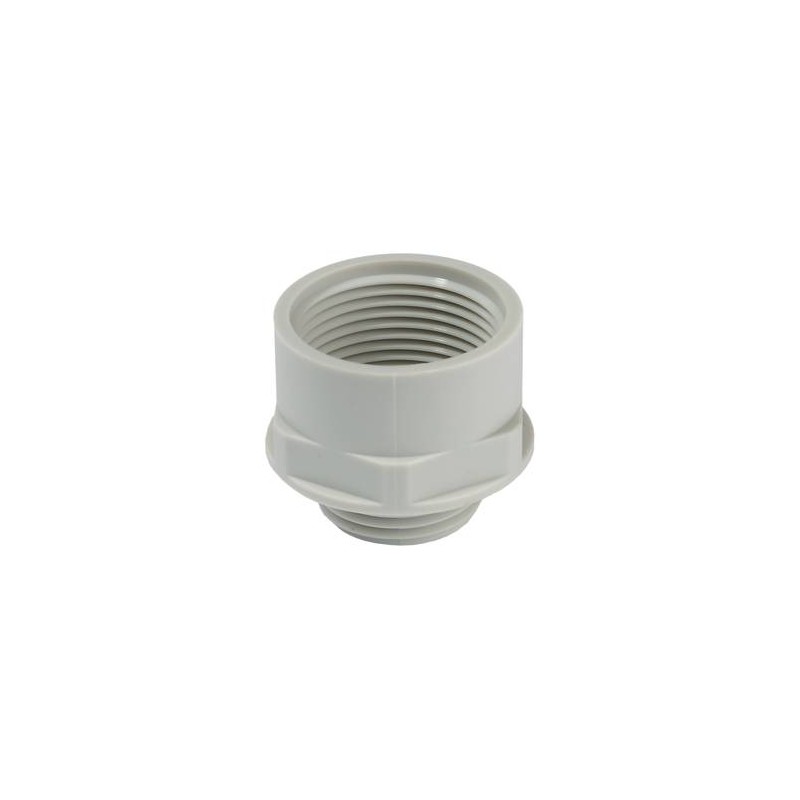

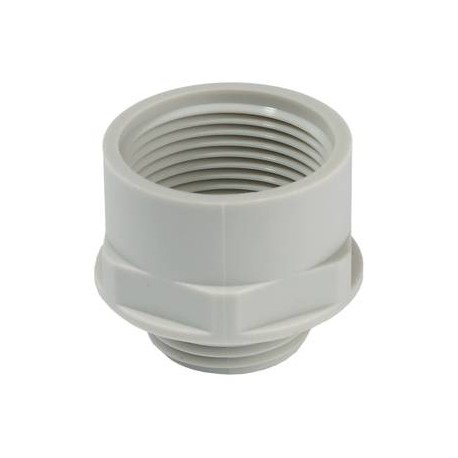

Enlargement adaptor, polyamide, RAL 7035, M50 / M63
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material | Polyamide, fibre reinforced |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Glow wire test | 650 °C |
Thread type outer | M |
Ø outer thread | 50 |
Lead outer | 1,5 |
Length screw-in thread L | 14 mm |
Thread type inner | M |
Ø inner thread | 63 |
Lead inner | 1,5 |
Length internal thread | 15,5 mm |
Total length TL | 32 mm |
Key width SW | 68 mm |
Collar diameter (E) | 75 mm |
Product Color | RAL 7035 |
Order no. RAL 7035 | 10063576 |
Type | KEM 50/63 |
Packing unit | 5 |
ETIM-Classification | EC000938 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes | |
PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes | |
PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes | |
KEM 50/63 10063576 EN_10063576.pdf | 178 Kbytes |
