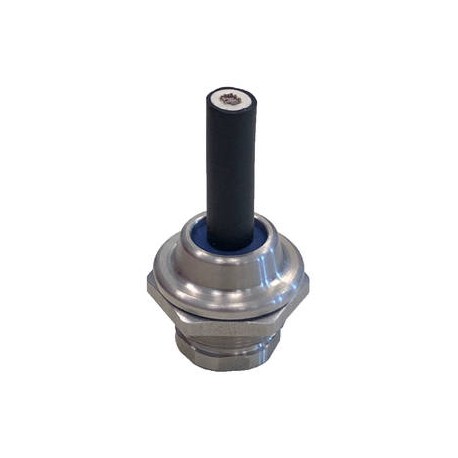

HGSM 32 FD Pack 10103627 WISKA AISI 303 stainless glands, IP69K pack silicone gaskets, for 9 to 23mm range, ..
HGSM 32 FD Pack
10103627
WISKA
AISI 303 stainless glands, IP69K pack silicone gaskets, for 9 to 23mm range, M32 thread

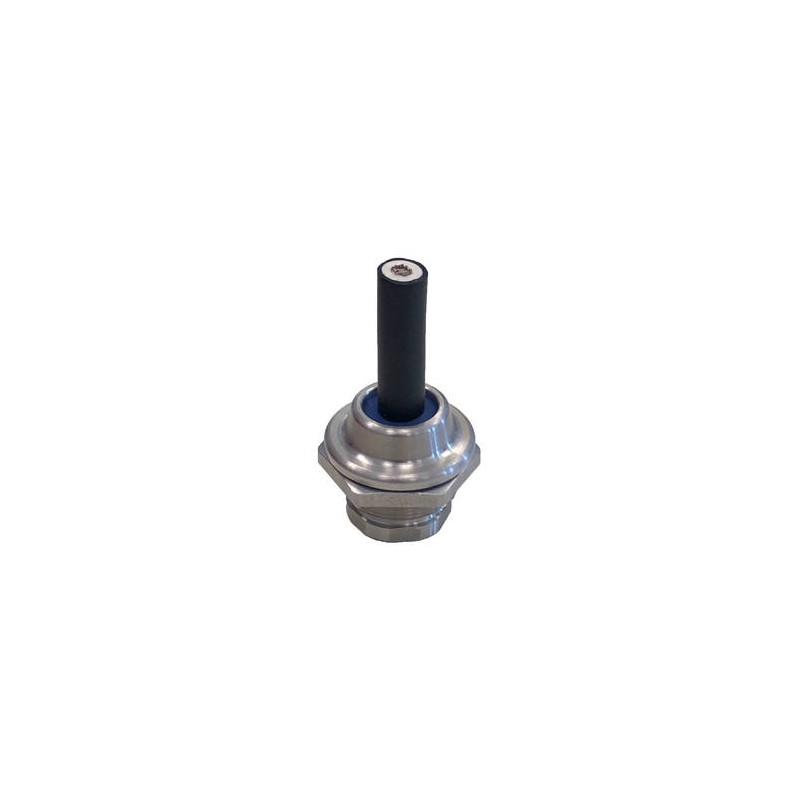

Cable gland, stainless steel, M32
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Stainless steel A2 (1.4305) |
| Material sealing gasket | Silicone |
| Temp. range min | -60 °C |
| Temp. range max | 180 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Thread type | M |
| Ø Connection thread D | 32 |
| Lead | 0,75 |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 23 mm |
| Key width SW1 | 28 mm |
| Key width SW2 | 36 mm |
| Collar diameter E1 | 30 mm |
| Collar diameter E2 | 40 mm |
| LxWxS (max) | 30x32x10mm |
| BxL | 38x11mm |
| Total length TL | 27,5 mm - 39,5 mm |
| Advice | Incl. sealing rings, locknut |
| WISKA-Order no. | 10103627 |
| Type | HGSM 32 FD pack |
| Packing unit | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| HGSM 32 FD Pack 10103627 EN_10103627.pdf | 253 Kbytes |
|
