ESKVZ 20/B 10060724 WISKA PA cable glands, black RAL 9005 + flange clamping ,IP68, range 6 to 13mm, thread M..
ESKVZ 20/B
10060724
WISKA
50
PA cable glands, black RAL 9005 + flange clamping ,IP68, range 6 to 13mm, thread M20

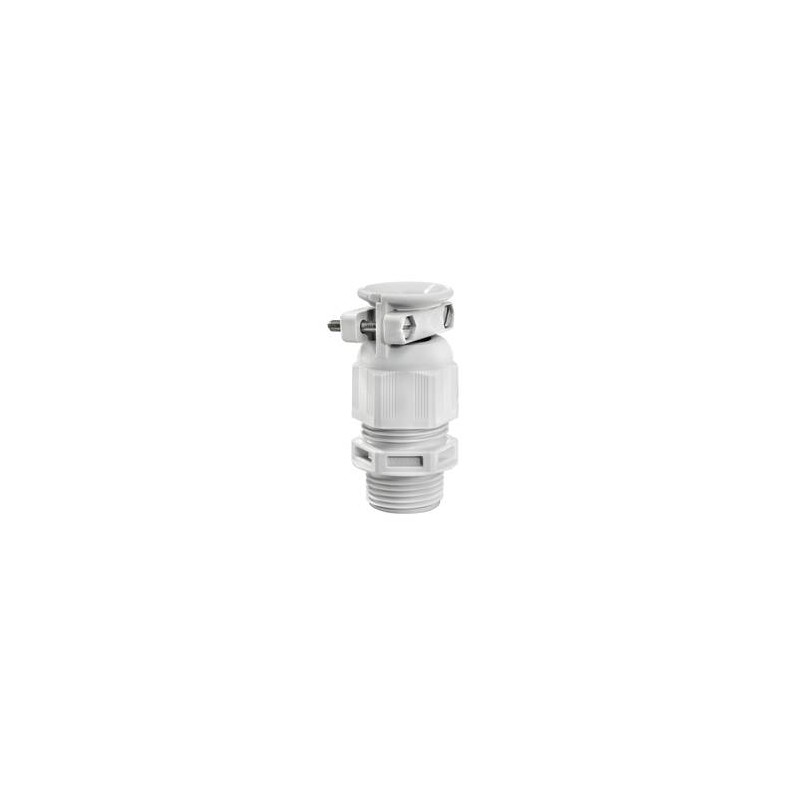

Cable gland with external strain relief, polyamide, M20, RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 20 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Ø cable diameter UL | 7,5 mm - 11,3 mm |
| Key width SW | 24 mm |
| Collar diameter (E) | 27 mm |
| Total length TL | 49 mm - 58 mm |
| Type of cable anchorage | B |
| Install. torques fitting | 4 N m |
| Install. torques cap nut | 4 N m |
| Impact category | 2 |
| Torque clamp srew | 0,4 N m |
| Product Color | RAL 7035 |
| Type | ESKVZ 20 |
| Order no. RAL 7035 | 10060724 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKVZ 20/B 10060724 EN_10060724.pdf | 240 Kbytes |
|
