ESMKV 12 10062870 WISKA Metal hexagonal cable glands, IP54, range from 4 to 6mm, thread M12
ESMKV 12
10062870
WISKA
100
Metal hexagonal cable glands, IP54, range from 4 to 6mm, thread M12

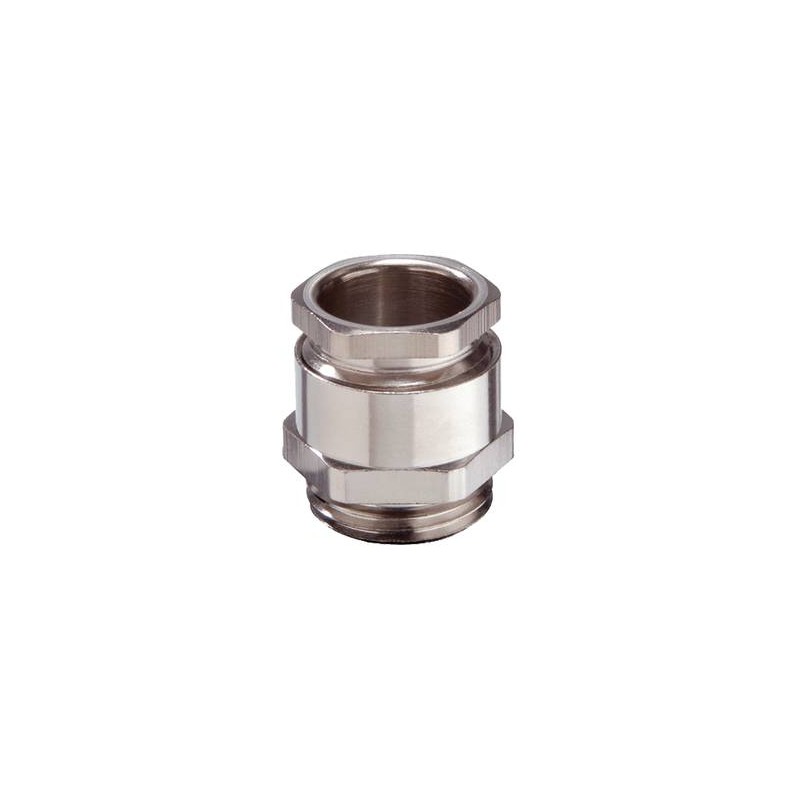

Cable gland hexagonal, brass nickel-plated, M12, with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 5 mm |
| Ø cable diameter min | 4 mm |
| Ø cable diameter max | 6 mm |
| Key width SW1 | 12 mm |
| Key width SW2 | 14 mm |
| Collar diameter E1 | 13 mm |
| Collar diameter E2 | 16 mm |
| Total length TL | 20 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10062870 |
| Type | ESMKV 12 |
| Packing unit | 100 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESMKV 12 10062870 EN_10062870.pdf | 210 Kbytes |
|
