ESKVS 12/B 10061276 WISKA PA cable glands, black RAL 9005 IP68, ent. Protec. flexible, range from 3 to 7mm, ..
ESKVS 12/B
10061276
WISKA
100
PA cable glands, black RAL 9005 - IP68, ent. Protec. flexible, range from 3 to 7mm, thread M12

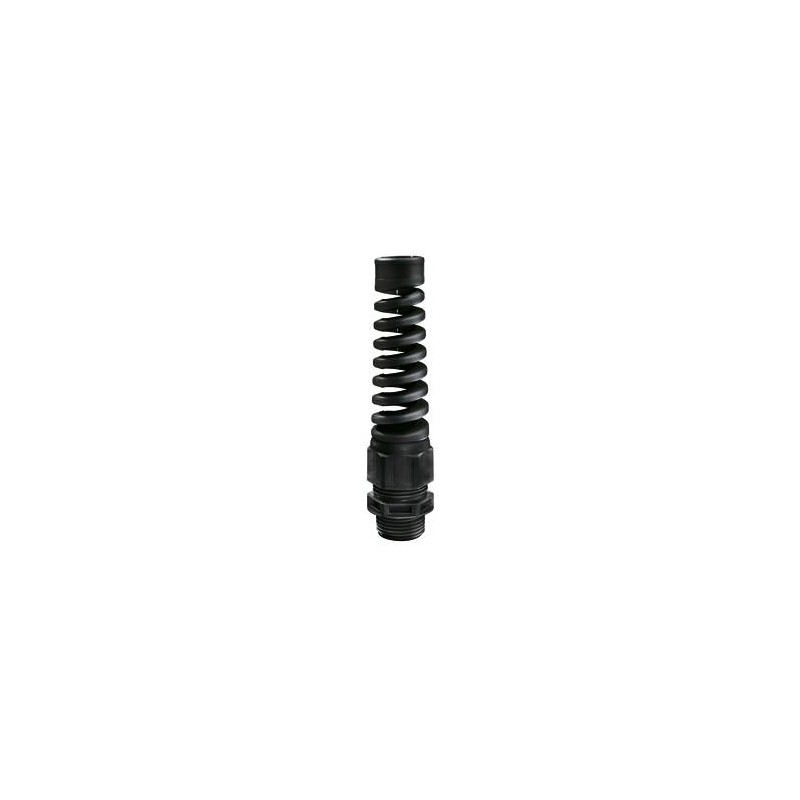

Cable gland with bend protection, polyamide, M12, RAL 9005
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 7 mm |
| Ø cable diameter UL | 4,1 mm - 6 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 72 mm - 77 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 2 N m |
| Install. torques cap nut | 2 N m |
| Impact category | 2 |
| Product Color | RAL 9005 |
| Type | ESKVS 12 |
| Order no. RAL 9005 | 10061276 |
| Packing unit | 100 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKVS 12/B 10061276 EN_10061276.pdf | 435 Kbytes |
|
