ESKV-RDE 20/G
10064986
WISKA
50

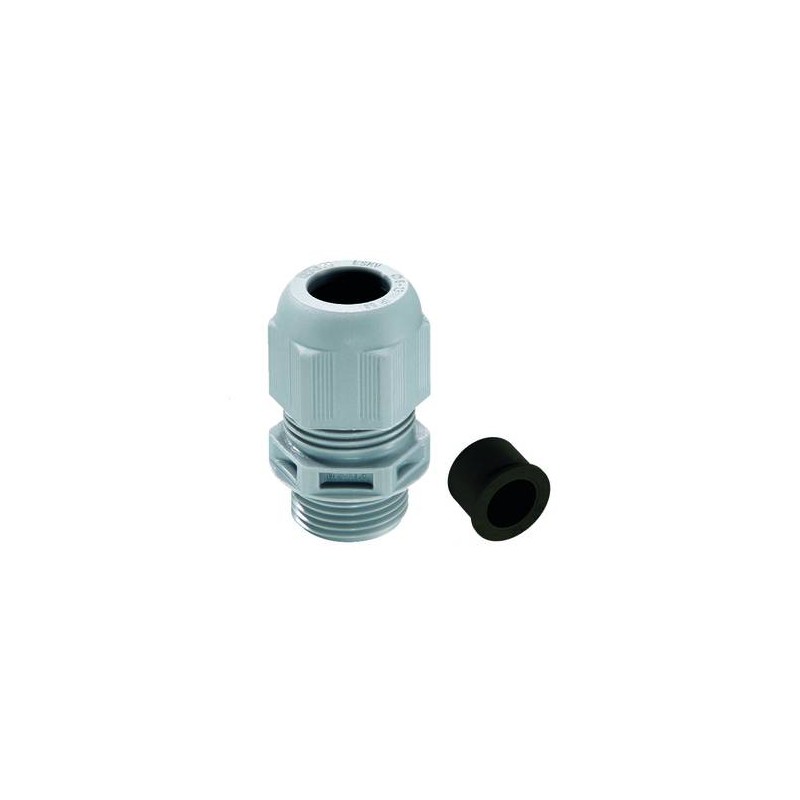

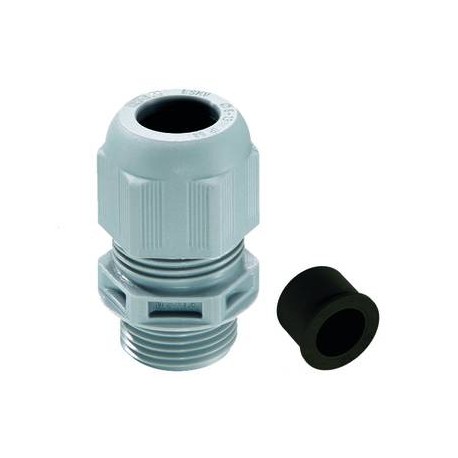

PA cable glands, dark grey RAL 7001 - IP68, range from 4 to 8mm, thread M20
Cable gland with reduction sealing insert, polyamide, M20, RAL 7001
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Material cable gland | Polyamide |
Material sealing gasket | EPDM |
Temp. range min | -40 °C |
Temp. range max | 100 °C |
Protection class | IP68 (5 bar 30 min), IP69 |
Thread type | M |
Ø Connection thread D | 20 |
Lead | 1,5 |
Length screw-in thread L | 10 mm |
Ø cable diameter min | 4 mm |
Ø cable diameter max | 13 mm |
Key width SW | 24 mm |
Collar diameter (E) | 27 mm |
Total length TL | 36 mm - 45 mm |
Glow wire test | 750 °C |
Type of cable anchorage | A |
Install. torques fitting | 4 N m |
Install. torques cap nut | 3 N m |
Impact category | 3 |
Advice | With reduction insert |
Product Color | RAL 7001 |
Order no. RAL 7001 | 10064986 |
Type | ESKV-RDE 20 |
Packing unit | 50 |
ETIM-Classification | EC000441 |
