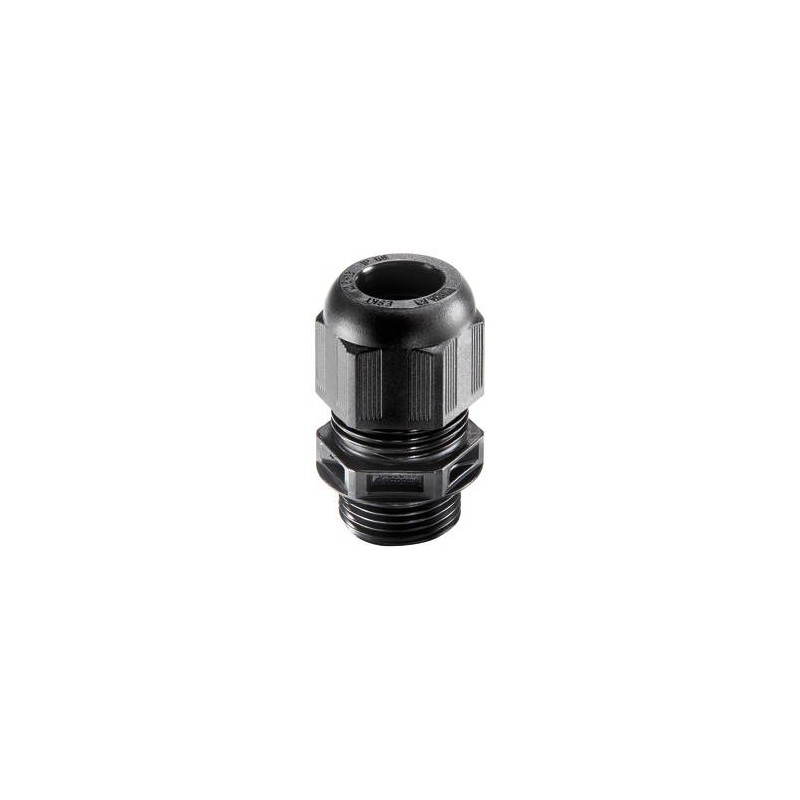

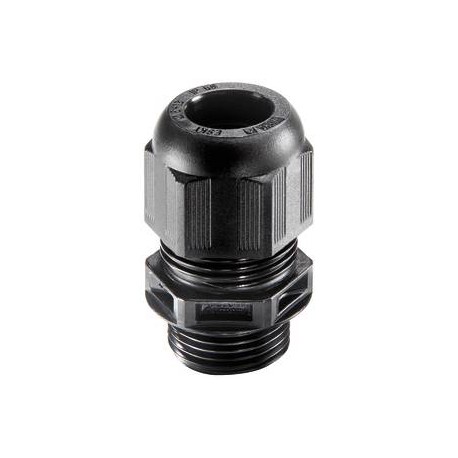

ESKV 40/B RW 10105815 WISKA PA cable glands, black RAL 9005 IP68, range from 16 to 28mm, thread M40, EN 45545
ESKV 40/B RW
10105815
WISKA
10
PA cable glands, black RAL 9005 - IP68, range from 16 to 28mm, thread M40, EN 45545
Railway cable gland, polyamide M40, RAL 9005 with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material cable gland | polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 960 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Product Color | RAL 9005 |
| Thread type | M |
| Ø Connection thread D | 40 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 16 mm |
| Ø cable diameter max | 28 mm |
| Ø cable diameter UL | 17,4 mm - 26,4 mm |
| Key width SW | 46 mm |
| Collar diameter (E) | 51 mm |
| Total length TL | 52 mm - 65 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 20 N m |
| Impact category | 4 |
| Install. torques cap nut | 20 N m |
| Equipment | Incl. connection thread gasket |
| Order no. RAL 9005 | 10105815 |
| Type | ESKV 40 RW |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| ESKV 40/B RW 10105815 EN_10105815.pdf | 402 Kbytes |
|
