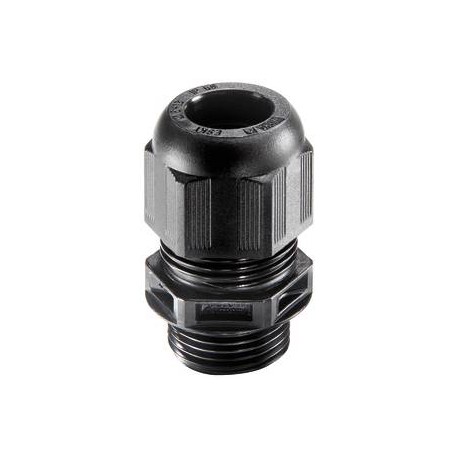

ESKV 25/B RW 10105813 WISKA PA cable glands, black RAL 9005 IP68, range from 9 to 17mm, thread M25, EN 45545
ESKV 25/B RW
10105813
WISKA
50
PA cable glands, black RAL 9005 - IP68, range from 9 to 17mm, thread M25, EN 45545

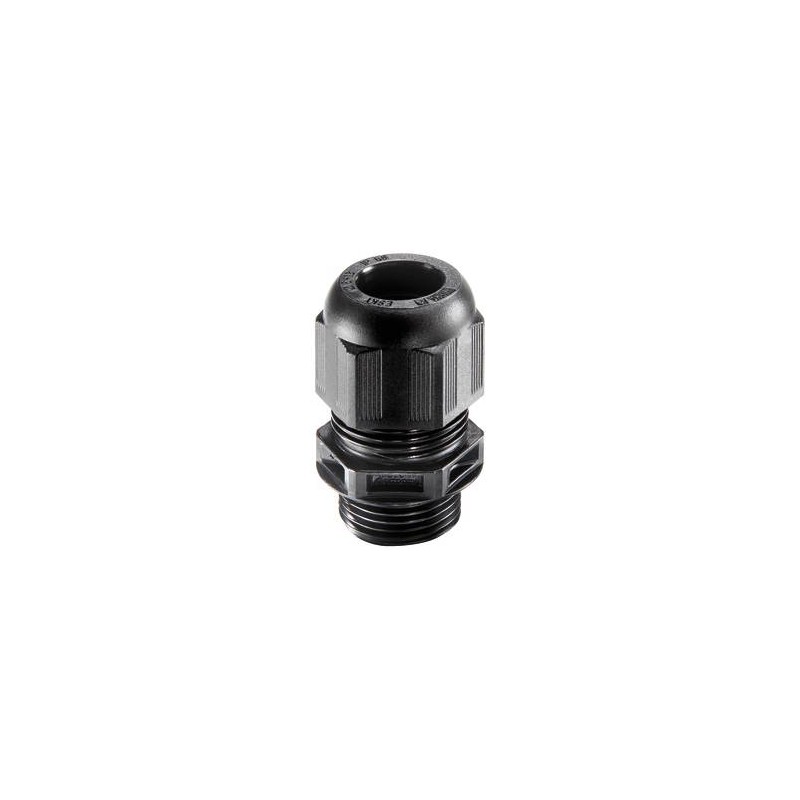

Railway cable gland, polyamide M25, RAL 9005 with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | polyamide UL94-V0 |
| Hazard level EN acc. 45545 | R22=HL3 / R23=HL3 / R24=HL3 |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 960 °C |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Product Color | RAL 9005 |
| Thread type | M |
| Ø Connection thread D | 25 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Ø cable diameter UL | 10,8 mm - 15,8 mm |
| Key width SW | 29 mm |
| Collar diameter (E) | 32 mm |
| Total length TL | 38 mm - 47 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 10 N m |
| Impact category | 4 |
| Install. torques cap nut | 4 N m |
| Order no. RAL 9005 | 10105813 |
| Type | ESKV 25 RW |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| ESKV 25/B RW 10105813 EN_10105813.pdf | 401 Kbytes |
|
