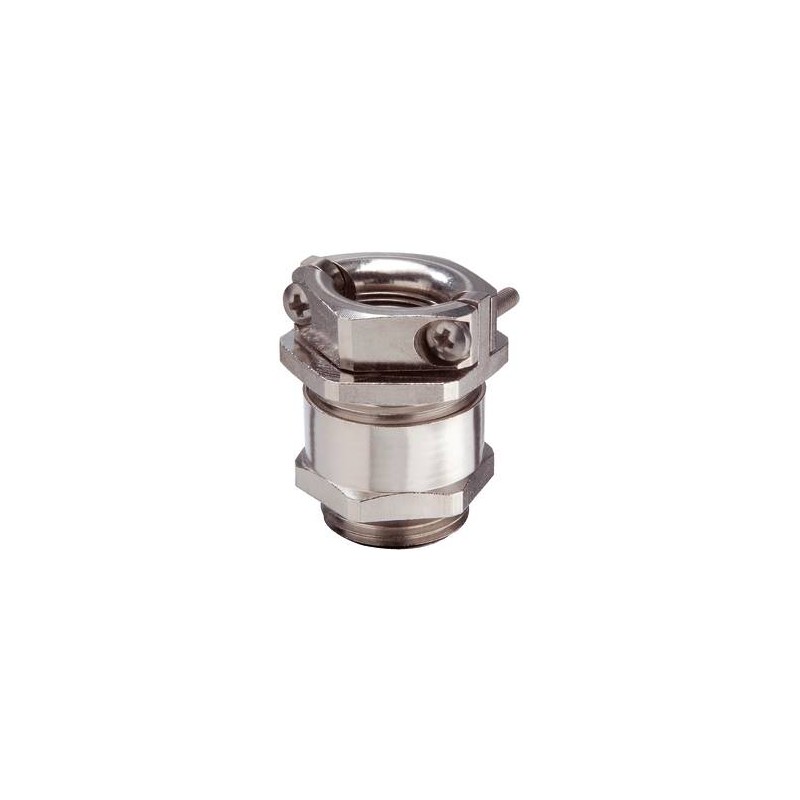

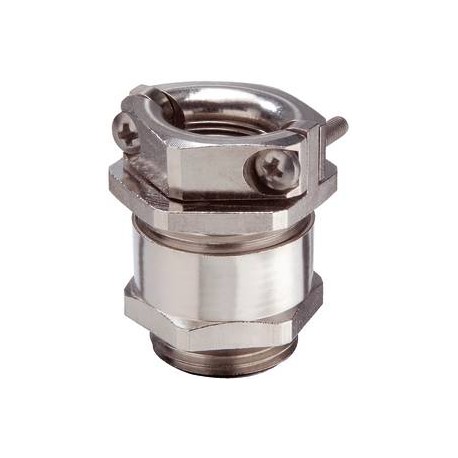

ESKMKV 50 10063138 WISKA Metal hexagonal cable glands + IP54 flange clamping, 21 to 35mm range, M50 thread
ESKMKV 50
10063138
WISKA
10
Metal hexagonal cable glands + IP54 flange clamping, 21 to 35mm range, M50 thread
Cable gland hexagonal, brass nickel-plated, M50, external strain relief
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Soft rubber |
| Temp. range min | -30 °C |
| Temp. range max | 80 °C |
| Protection class | IP54 |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 29 mm |
| Ø cable diameter max | 40 mm |
| Key width SW1 | 59 mm |
| Key width SW2 | 57 mm |
| Collar diameter E1 | 65 mm |
| Collar diameter E2 | 60 mm |
| Total length TL | 52 mm |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10063138 |
| Type | ESKMKV 50 |
| Packing unit | 5 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| ESKMKV 50 10063138 EN_10063138.pdf | 277 Kbytes |
|
