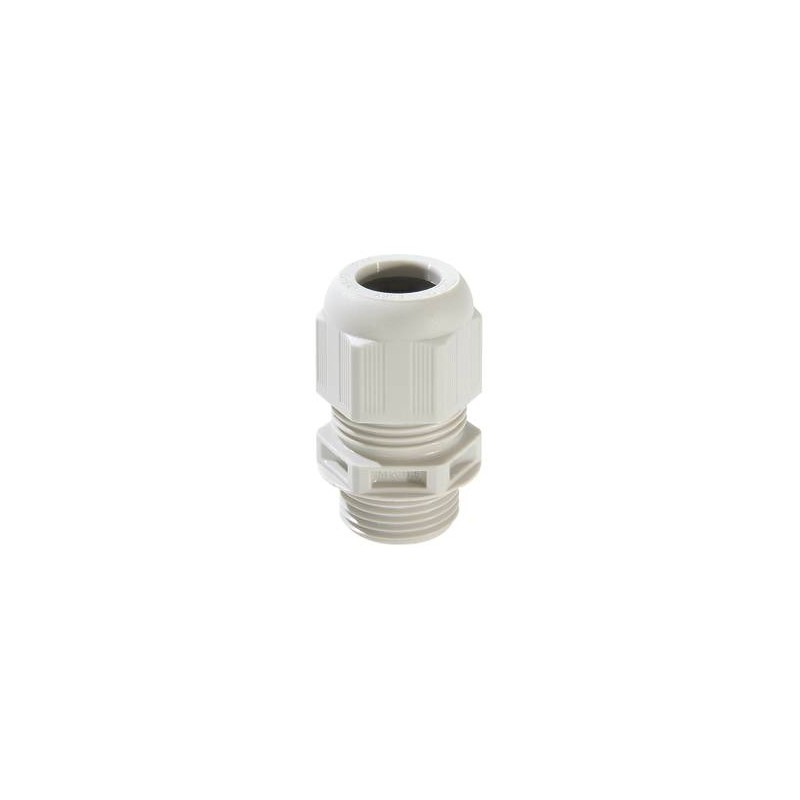

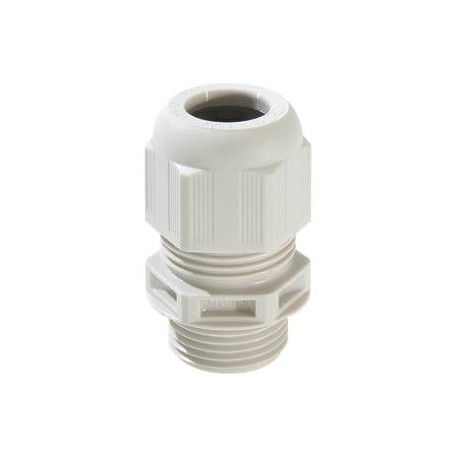

ESKV 16/GL 10066411 WISKA PA cable glands, light grey RAL 7035 IP68, range from 4.5 to 10mm, thread M16
ESKV 16/GL
10066411
WISKA
50
PA cable glands, light grey RAL 7035 - IP68, range from 4.5 to 10mm, thread M16
Cable gland, polyamide, M16, RAL 7035 with short thread
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Often bought together
▲Best sellers
▲More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Protection class | IP69, IP68 (5 bar 30 min) |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 10 mm |
| Ø cable diameter UL | 6 mm - 8,6 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 31 mm - 37 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 3,5 N m |
| Install. torques cap nut | 1,5 N m |
| Impact category | 3 |
| Product Color | RAL 7035 |
| Type | ESKV 16 |
| Order no. RAL 7035 | 10066411 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| ESKV 16/GL 10066411 EN_10066411.pdf | 309 Kbytes |
|
