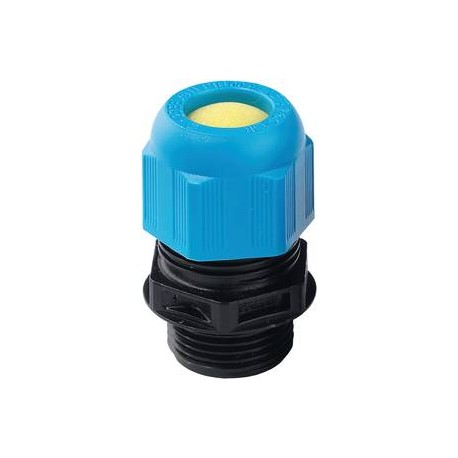

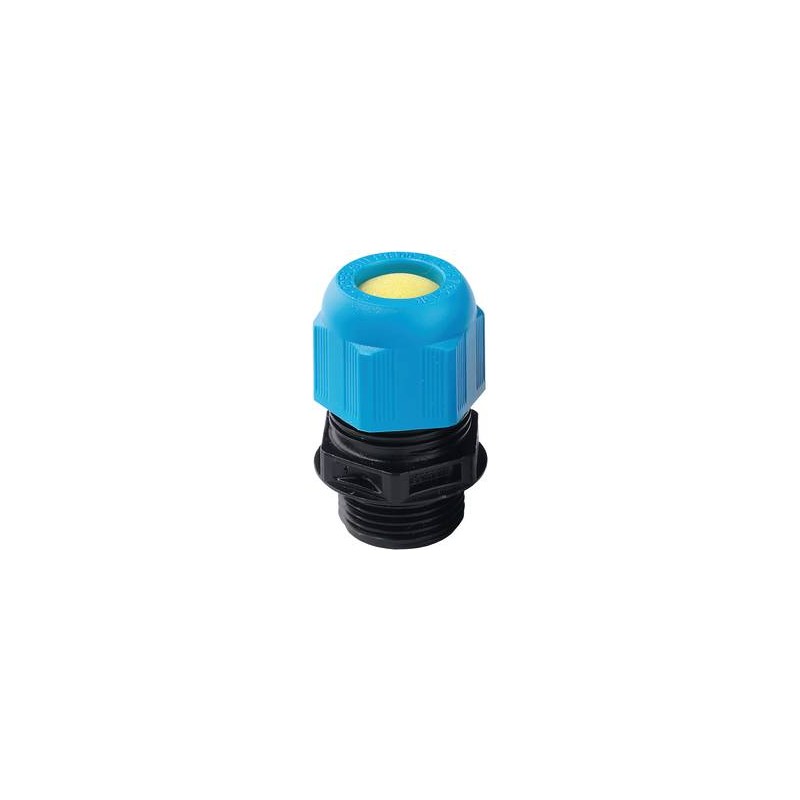

ESKE/1-i 16 10103372 WISKA Blue PA cable glands "ATEX" IP68, intrinsic safety, range from 4.5 to 9mm, thread..
ESKE/1-i 16
10103372
WISKA
50
Blue PA cable glands "ATEX" IP68, intrinsic safety, range from 4.5 to 9mm, thread M16
Ex-cable gland, polyamide with short thread, RAL 9005/5012, M16
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
More info
▲Features
| Material cable gland | Polyamide |
| Material sealing gasket | EPDM |
| Temp. range min | -40 °C |
| Temp. range max | 75 °C |
| Protection class | IP66 / IP68 (5 bar 30 min) |
| Type of protection | Ex eb, Ex tb |
| Ex-Certificate | ATEX, IECEx |
| Glow wire test | 750 °C |
| Thread type | M |
| Ø Connection thread D | 16 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 4,5 mm |
| Ø cable diameter max | 9 mm |
| Key width SW | 20 mm |
| Collar diameter (E) | 22 mm |
| Total length TL | 31 mm - 37 mm |
| Install. torques fitting | 1,8 N m |
| Install. torques cap nut | 1,3 N m |
| Equipment | Incl. connection thread gasket |
| Product Color | RAL 5012 / RAL 9005 |
| Order no. RAL 9005 | 10103372 |
| Type | ESKE/1-i 16 |
| Packing unit | 50 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG WISKA CABLE ENTRIES AND PROTECTION EN.pdf | 8 Mbytes |
|
| PDF CATALOG WISKA JUCTION BOXES EN.pdf | 3 Mbytes |
|
| PDF CATALOG WISKA LIGHTING INSTALLATION AND MARITIME APP EN.pdf | 5 Mbytes |
|
| ESKE/1-i 16 10103372 EN_10103372.pdf | 350 Kbytes |
|
