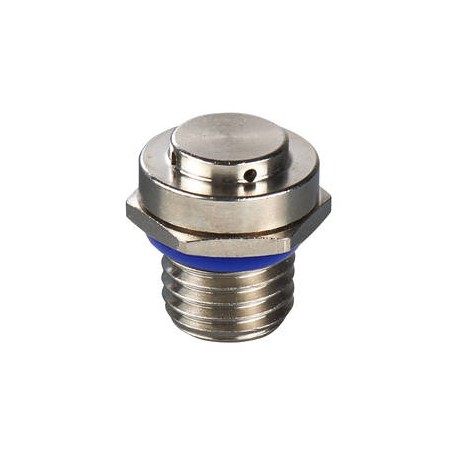

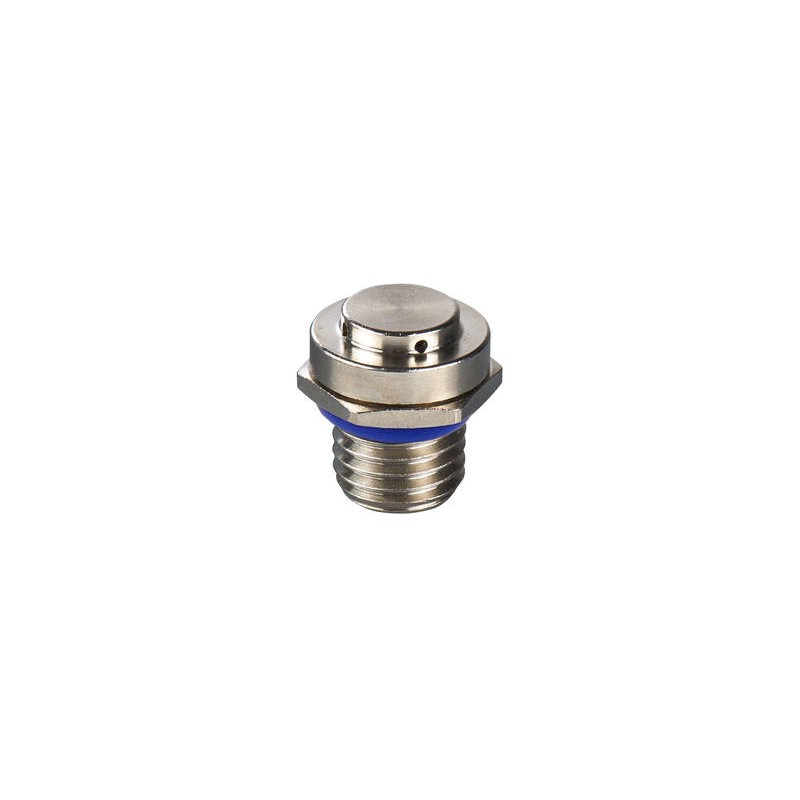

EMVPS 12 HF 10103266 WISKA VentPLUG High Flow metal compensating cap, IP69K, M12 thread
EMVPS 12 HF
10103266
WISKA
10
VentPLUG High Flow metal compensating cap, IP69K, M12 thread
Pressure compensation plug, brass nickel-plated, M12
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | Silicone, EPDM |
| Material membrane | ePTFE HF |
| Airflow at 70mbar | 34 l/h |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 / IP69 |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 10 mm |
| Key width SW | 16 mm |
| Collar diameter (E) | 18 mm |
| Total length TL | 17,5 mm |
| Tightening torque | 2 N m |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10103266 |
| Type | EMVPS 12 HF |
| Packing unit | 10 |
| Remarks: VentPLUG pressure compensation unit with raised venting Airflow 34 l/h at 70mbar | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EMVPS 12 HF 10103266 EN_10103266.pdf | 267 Kbytes |
|
