EMSKV 50 EMV-S 10102279 WISKA Metal cable glands, IP68 for "EMC" (interleaved ring), range 21 to 35mm, threa..
EMSKV 50 EMV-S
10102279
WISKA
10

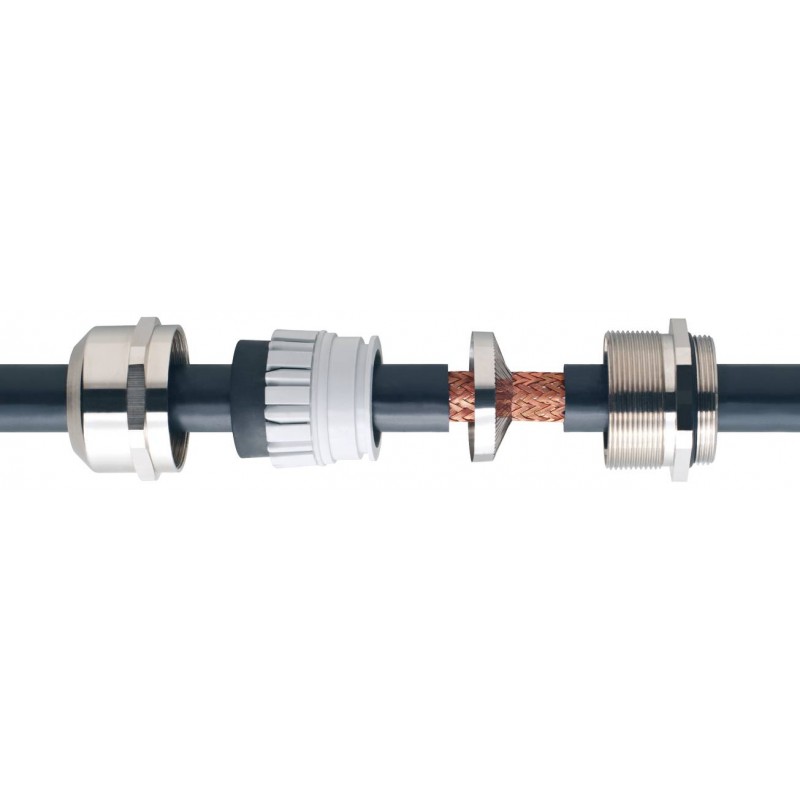

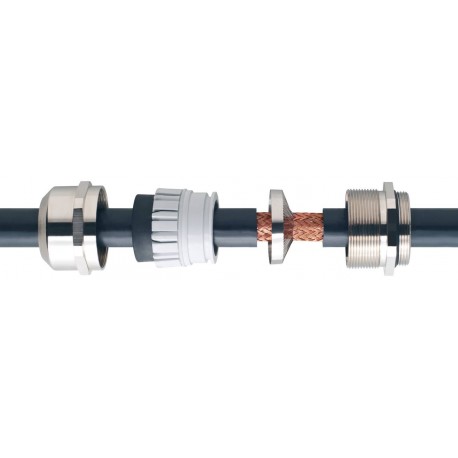

Metal cable glands, IP68 for "EMC" (interleaved ring), range 21 to 35mm, thread M50
EMC-cable gland, brass nickel-plated with short thread, M50
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide |
| Material earthing insert | Stainless steel 1.4310 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø cable diameter min | 21 mm |
| Ø cable diameter max | 35 mm |
| Cable Ø shield external | 18 mm - 32 mm |
| Key width SW | 55 mm |
| Collar diameter (E) | 61 mm |
| Total length TL | 51 mm - 62 mm |
| Type of cable anchorage | A |
| Install. torques cap nut | 30 N m |
| Install. torques fitting | 30 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10102279 |
| Type | EMSKV 50 EMV-S |
| Packing unit | 10 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKV 50 EMV-S 10102279 EN_10102279.pdf | 198 Kbytes |
|
