EMSKV 75 EMV-Z 10100963 WISKA Metal cable glands, IP68 for "EMC", range from 48 to 63mm, thread M75
EMSKV 75 EMV-Z
10100963
WISKA
Metal cable glands, IP68 for "EMC", range from 48 to 63mm, thread M75

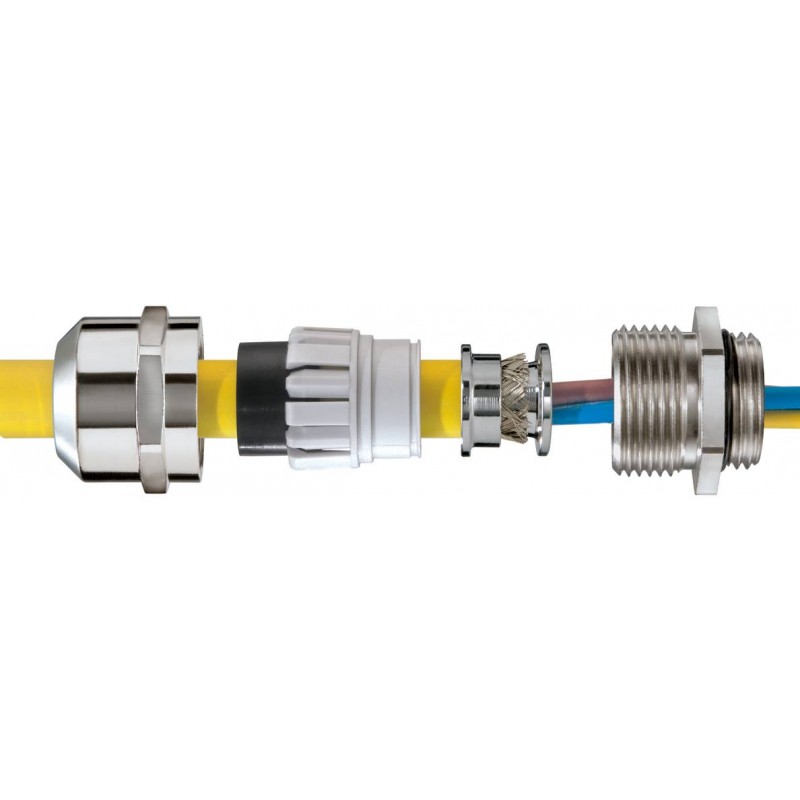

EMC-cable gland, brass with short thread
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material cable gland | Brass nickel-plated |
| Material sealing gasket | EPDM |
| Material clamping cage | Polyamide |
| Material earthing insert | Brass chromium-plated |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Protection class | IP68 (5 bar 30 min), IP69 |
| Thread type | M |
| Ø Connection thread D | 75 |
| Lead | 1,5 |
| Length screw-in thread L | 12 mm |
| Ø cable diameter min | 48 mm |
| Ø cable diameter max | 62 mm |
| Ø cable below cable shield | 58 mm |
| Key width SW | 82 mm |
| Collar diameter (E) | 90 mm |
| Total length TL | 67 mm - 81 mm |
| Type of cable anchorage | A |
| Install. torques fitting | 40 N m |
| Install. torques cap nut | 40 N m |
| Impact category | 6 |
| Surface | Nickel-plated |
| Order no. nickel-plated | 10100963 |
| Type | EMSKV 75 EMV-Z |
| Packing unit | 1 |
| ETIM-Classification | EC000441 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EMSKV 75 EMV-Z 10100963 EN_10100963.pdf | 210 Kbytes |
|
