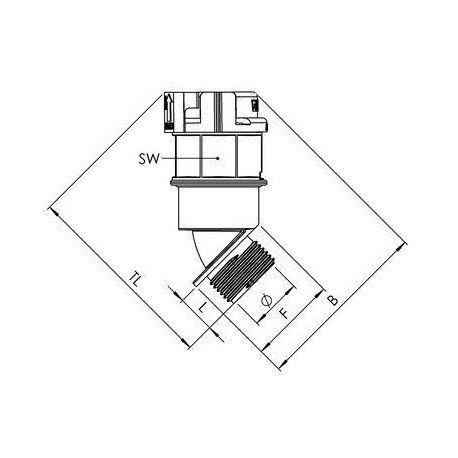

EBF45-36-50/G 10108875 WISKA Elbow fitting 45o PA grey IP68 for DN36/42 tube, M50 thread
EBF45-36-50/G
10108875
WISKA
10
Elbow fitting 45o PA grey IP68 for DN36/42 tube, M50 thread
Conduit fitting, 45° angle, plastic, RAL 7031, NW 36 / M50
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material Conduit fitting | polyamide UL94-V0 |
| Material Connection thread | polyamide UL94-V0 |
| Material sealing gasket | TPU |
| Protection class | IP68, IP66 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Operational areas | EN 45545 - Railway |
| NW | 36 |
| Thread type | M |

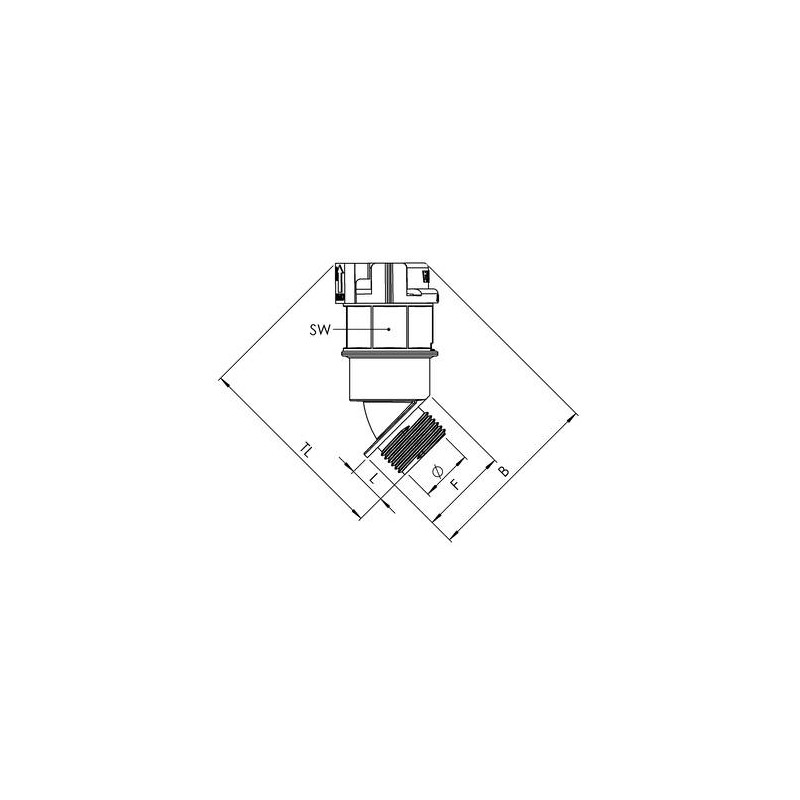

| Ø Connection thread D | 50 |
| Lead | 1,5 |
| Length screw-in thread L | 16 mm |
| Ø inside | 33,5 mm |
| Ø Gasket F | 59 mm |
| Key width SW | 50 mm |
| Width B | 98,4 mm |
| Total length TL | 95,9 mm |
| Type of conduit fitting | 45° Angle |
| UL 1696 | Yes |
| Product Color | RAL 7031 |
| Type | EBF45-36-50-BG |
| Order no. RAL 7031 | 10108875 |
| Packing unit | 10 |
| ETIM-Classification | EC001176 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| EBF45-36-50/G 10108875 EN_10108875.pdf | 218 Kbytes |
|
