WISKAEBF90-48-63/B 10108897 WISKA Elbow fitting 90o PA black IP68 for DN48/54 tube, M63 thread

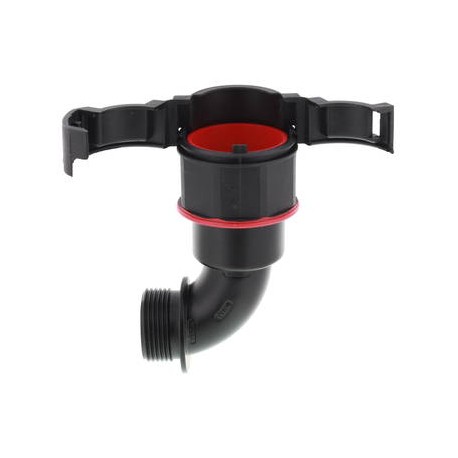

WISKA EBF90-48-63/B 10108897 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EBF90-48-63/B 10108897 WISKA Elbow fitting 90o PA black IP68 for DN48/54 tube, M63 thread

Reference: EBF90-48-63/B

Code: 10108897

Manufacturer: WISKA

Description:

Elbow fitting 90o PA black IP68 for DN48/54 tube, M63 thread
Conduit fitting, 90° angle, plastic

Categories:

  • WISKA

Brand new product in its original packaging covered by the warranties and certifications provided by WISKA

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 146,81 €

Unit Price: 29,362 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3-4 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

LogoLogoLogoLogoLogoLogo
Material Conduit fittingpolyamide UL94-V0
Material Connection threadpolyamide UL94-V0
Material sealing gasketTPU
Protection classIP68, IP66
Temp. range min-40 °C
Temp. range max100 °C
Operational areasEN 45545 - Railway
NW48
Thread typeM
Ø Connection thread D63
Lead1,5
Length screw-in thread L17,5 mm
Ø inside44 mm
Ø Gasket F72 mm
Key width SW60 mm
Width B140,9 mm
Total length TL90,2 mm
Type of conduit fitting90° Angle
UL 1696Yes
Product ColorRAL 9005
TypeEBF90-48-63-BK
Order no. RAL 900510108897
Packing unit5
ETIM-ClassificationEC001176

DATASHEET - PDF

Title
Size
Type
EBF90-48-63/B 10108897 EN_10108897.pdf
267 Kbytes
PDF CATALOGUE WISKA EN
16 Mbytes
