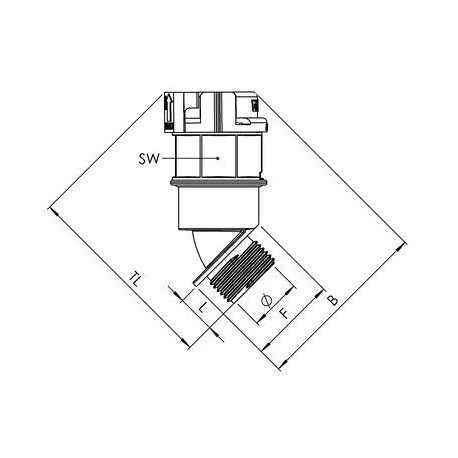

EBF45-10-12/G 10108870 WISKA Elbow fitting 45o PA grey IP68 for DN10/13 tube, M12 thread
EBF45-10-12/G
10108870
WISKA
50
Elbow fitting 45o PA grey IP68 for DN10/13 tube, M12 thread
Conduit fitting, 45° angle, plastic, RAL 7031, NW 10 / M12
Home > WISKA
* Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material Conduit fitting | polyamide UL94-V0 |
| Material Connection thread | polyamide UL94-V0 |
| Material sealing gasket | TPU |
| Protection class | IP68, IP66 |
| Temp. range min | -40 °C |
| Temp. range max | 100 °C |
| Operational areas | EN 45545 - Railway |
| NW | 10 |
| Thread type | M |
| Ø Connection thread D | 12 |
| Lead | 1,5 |
| Length screw-in thread L | 9 mm |
| Ø inside | 7 mm |
| Ø Gasket F | 18 mm |
| Key width SW | 20 mm |
| Width B | 48,3 mm |
| Total length TL | 50,6 mm |
| Type of conduit fitting | 45° Angle |
| UL 1696 | Yes |
| Product Color | RAL 7031 |
| Type | EBF45-10-12-BG |
| Order no. RAL 7031 | 10108870 |
| Packing unit | 50 |
| ETIM-Classification | EC001176 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 12 Mbytes |
|
| EBF45-10-12/G 10108870 EN_10108870.pdf | 218 Kbytes |
|
