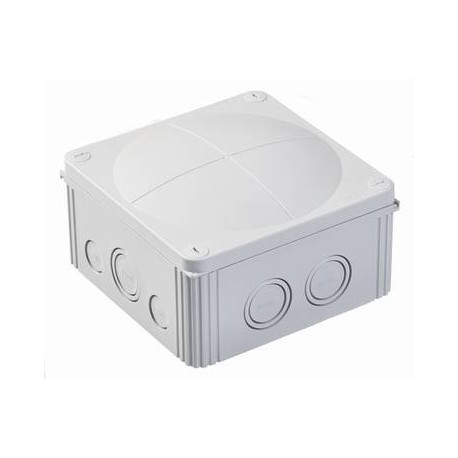

COMBI 1010/5 10060703 WISKA Conex box. pre-cut M20, M25 and M32, + 5P strip, light grey RAL 7035, IP66/67 14..
COMBI 1010/5
10060703
WISKA
2
Conex box. pre-cut M20, M25 and M32, + 5P strip, light grey RAL 7035, IP66/67 140x140x82

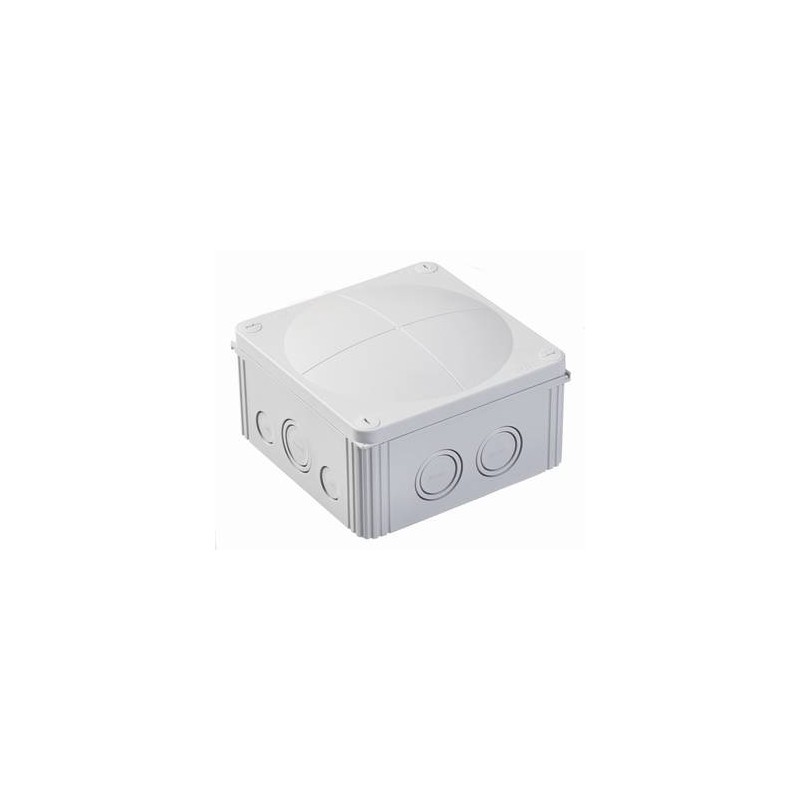

Junction box 140x140x82mm, polypropylene, RAL 7035, with terminal block
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Rated current / A (Terminal) | 57 A |
| Rated cross section | 10 mm² |
| Terminals/poles | 5 x 10,0 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 21 mm |
| External dimensions LxWxH | 140 x 140 x 82mm |
| Using for cable gland |  |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10060703 |
| Type | COMBI 1010/5 LG |
| Packing unit | 2 |
| ETIM-Classification | EC002600 |
| Remarks: IP66: using the QUIXX self sealing membrane screw IP67: using the knockout entry together with ESKV cable gland Equipment: - 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32 - 4 knockouts in the bottom 2x M25/M32; 2x M20/M25 - 4 captive cover screws - including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32 - including terminal block 5-poles, 10mm² Mounting: 4 internal openings outside of the sealing area | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| COMBI 1010/5 10060703 EN_10060703.pdf | 346 Kbytes |
|
