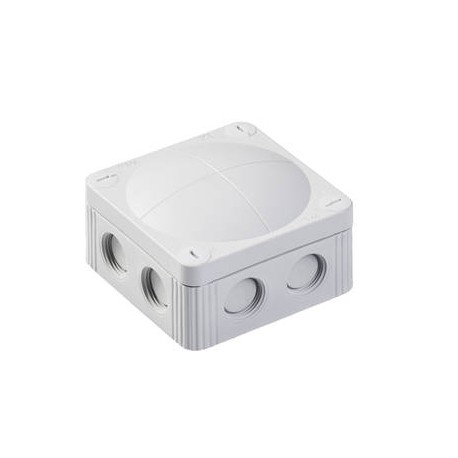

COMBI 308/empty 10060400 WISKA Conex box. + membrane or inlet with M20 thread, light grey RAL 7035, IP66 85x..
COMBI 308/empty
10060400
WISKA
5
Conex box. + membrane or inlet with M20 thread, light grey RAL 7035, IP66 85x85x51
Junction box 85x85x51mm, polypropylene, RAL 7035
Home > WISKA
Brand new product in its original packaging covered by the warranties and certifications provided by WISKA
Best sellers
▲More info
▲Features
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 / IP67 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Rated cross section | 4 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 12 mm |
| External dimensions LxWxH | 85 x 85 x 51mm |
| Type of cable gland | M 20 x 1,5 |
| Using for cable gland |  |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10060400 |
| Type | COMBI 308 LG |
| Packing unit | 5 |
| ETIM-Classification | EC002600 |
| Remarks: IP66: using the membrane entry IP67: using the threaded entry together with ESKV cable gland Equipment: - 8 M20 threaded membrane entries - 4 captive cover screws - including mounting clip Fixing: With mounting clip or 4 internal openings outside of the sealing area | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE WISKA EN.pdf | 16 Mbytes |
|
| COMBI 308/empty 10060400 EN_10060400.pdf | 383 Kbytes |
|
