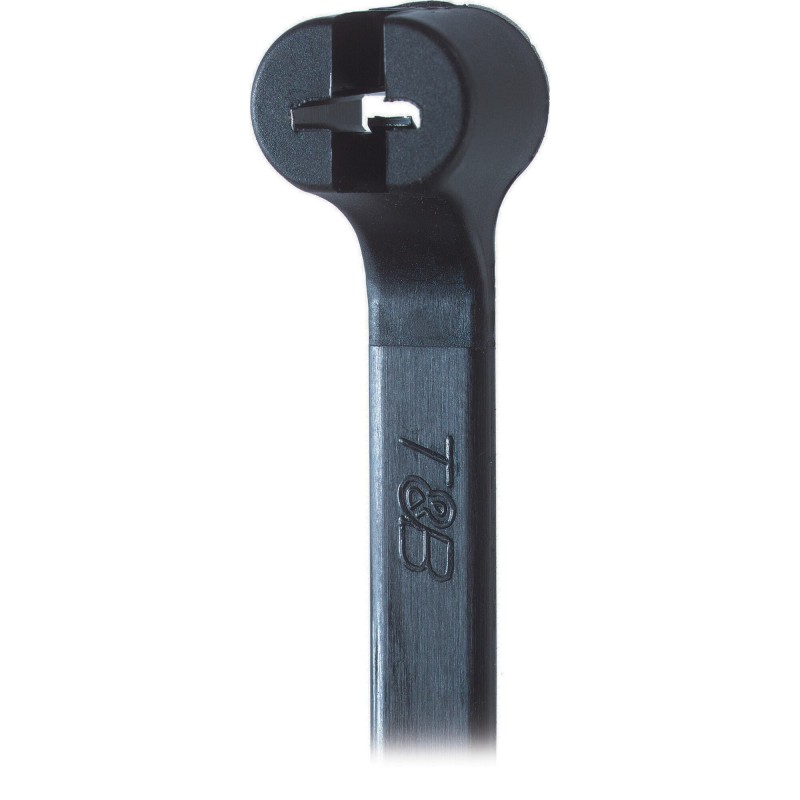

TY234MX-RW 7TAG009050R0005 THOMAS AND BETTS TY234MX FOR RAILWAY
TY234MX-RW
7TAG009050R0005
THOMAS AND BETTS
1000
TY234MX FOR RAILWAY
BRIDA TYRAP 356x2,3 RAIL
Fasteners > Cable tie
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- TY234MX-RW
- Product ID:
- 7TAG009050R0005
- EAN:
- 5415022260533
- Catalog Description:
- TY234MX FOR RAILWAY
- Long Description:
- Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F) for Railway, Weather and Ultraviolet Resistant, Length of 355.6mm (14.0 Inches), Width of 2.4mm (0.09 Inch), Thickness of 1.0mm (0.039 Inch), Minimum Bundle Diameter 1.5mm (0.06 Inch), Maximum Bundle Diameter 102mm (4 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds)
Ordering
- EAN:
- 5415022260533
- UPC:
- 786209801470
- Country of Origin:
- United States (US)
- Selling Unit of Measure:
- each
Dimensions
- Product Net Width:
- 0.09in
2.4 mm
- Product Net Depth / Length:
- 14in
356 mm
Container Information
- Package Level 1 Units:
- 1000 piece
- Package Level 1 Width:
- 3 in
76 mm
- Package Level 1 Height:
- 19 in
483 mm
- Package Level 1 Depth / Length:
- 14 in
356 mm
- Package Level 2 Units:
- 10000 piece
- Package Level 2 Width:
- 9.37 in
238 mm
- Package Level 2 Height:
- 19.75 in
502 mm
- Package Level 2 Depth / Length:
- 11.5 in
292 mm
Technical UL/CSA
- Flammability According to UL94:
- V-2
Additional Information
- Brand / Label:
- Ty-Rap
- Bundle Diameter:
- 0.06 to 4.02 in
1.6 to 102 mm
- Color:
- Black
- Effective Date:
- 20130927
- Lock Type:
- Stainless Steel Barb
- Material:
- Nylon/Polyamide 6.6
- Product Name:
- PLASTIC CABLE TIE
- Product Type:
- Railway
- Standards:
- UL E49405
- Tensile Strength:
- 18 lb
80 N
- Thickness:
- 0.039 in
1 mm
Certificates and Declarations
- Data Sheet, Technical Information:
- TY234MX-RW
- Declaration of Conformity - CE:
- 9AKK107492A9841
Classifications
- ETIM 6:
- EC000046 - Cable tie
- ETIM 7:
- EC000046 - Cable tie
- ETIM 8:
- EC000046 - Cable tie
- UNSPSC:
- 39121703
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5034 >> Cable ties
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| TY234MX-RW 7TAG009050R0005 EN_7TAG009050R0005.pdf | 95 Kbytes |
|
