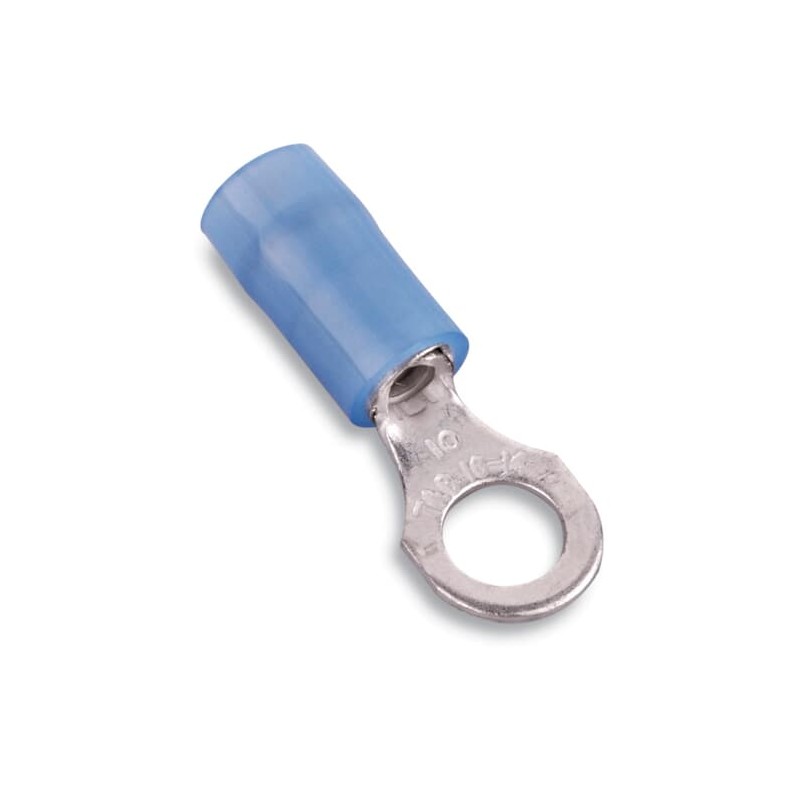

RB14-14 7TAI029810R0011 THOMAS AND BETTS INS NYL RING TERM 18-14 1/4IN BLUE
RB14-14
7TAI029810R0011
THOMAS AND BETTS
100
INS NYL RING TERM 18-14 1/4IN BLUE
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- RB14-14
- Product ID:
- 7TAI029810R0011
- EAN:
- 5414363077435
- Catalog Description:
- INS NYL RING TERM 18-14 1/4IN BLUE
- Long Description:
- Nylon Insulated Ring Terminal, Length 1.08 Inches, Width .47 Inches, Maximum Insulation .162, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
Ordering
- EAN:
- 5414363077435
Dimensions
- Product Net Weight:
- .003lb
1.361 g
Container Information
- Package Level 1 Units:
- 100 piece
- Package Level 1 Width:
- 1.3 in
33 mm
- Package Level 1 Height:
- 3.5 in
89 mm
- Package Level 1 Depth / Length:
- 2.5 in
64 mm
- Package Level 2 Units:
- 500 piece
- Package Level 2 Width:
- 9.6 in
244 mm
- Package Level 2 Height:
- 8.7 in
221 mm
- Package Level 2 Depth / Length:
- 15 in
381 mm
- Package Level 3 Units:
- 5000 piece
- Package Level 3 Width:
- 8.1 in
206 mm
- Package Level 3 Height:
- 10.4 in
264 mm
- Package Level 3 Depth / Length:
- 12.1 in
307 mm
Additional Information
- Brand / Label:
- Sta-Kon
- Color:
- Blue
- Material:
- Copper
- Number of Batteries:
- 0
- Product Name:
- "Electrical terminal,<1000v"
- Product Type:
- Nylon Insulated Ring Terminal
- Special Functions:
- Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
- Standards:
- UL E9809
- UPC:
- 786210804170
- Voltage Rating:
- 600 V
- Wire Size:
- 18-14 AWG
Certificates and Declarations (Document Number)
Classifications
- ETIM 6:
- EC001052 - Solderless copper terminals for copper conductors
- ETIM 7:
- EC001052 - Solderless copper terminals for copper conductors
- UNSPSC:
- 39121432
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4603 >> Electrical terminals
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| RB14-14 7TAI029810R0011 EN_7TAI029810R0011.pdf | 80 Kbytes |
|
