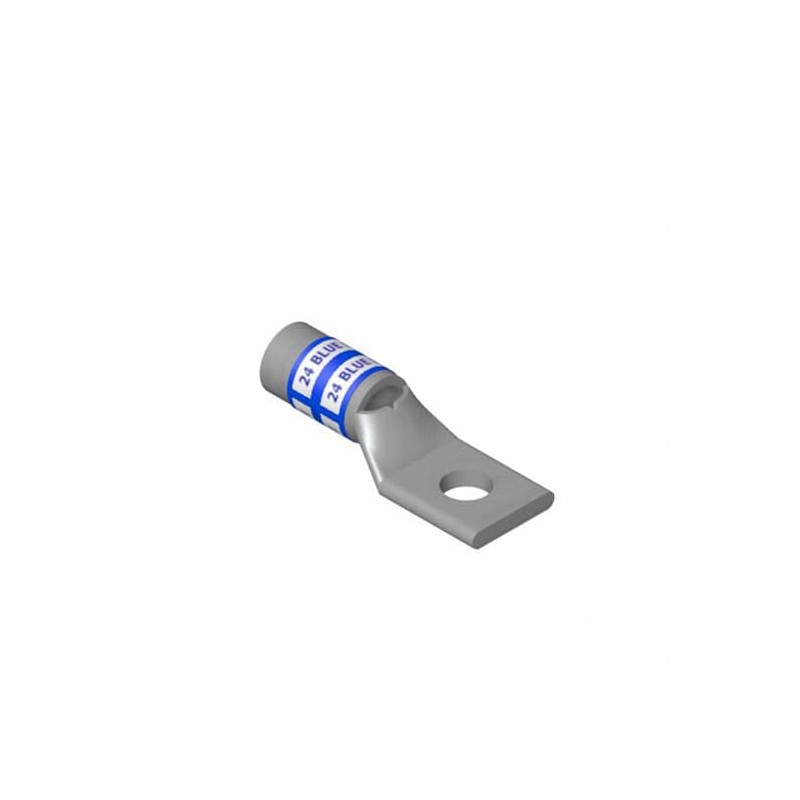

54105 7TAH007100R0003 THOMAS AND BETTS Connectors Type Crimp and Clamp
54105
7TAH007100R0003
THOMAS AND BETTS
50
Connectors Type Crimp and Clamp
#6 CU STD. BRL. 1 HOLE 1/4 BOLT
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- 54105
- Product ID:
- 7TAH007100R0003
- EAN:
- 5414363074243
- Catalog Description:
- #6 CU STD. BRL. 1 HOLE 1/4 BOLT
- Long Description:
- Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #6 AWG Wire, 1/4 Inch Bolt Size, Tin Plated, Die Code 24, Die Color Code Blue
Ordering
- EAN:
- 5414363074243
- Customs Tariff Number:
- 8536904000
Dimensions
- Product Net Weight:
- .015lb
6.803 g
Container Information
- Package Level 1 Units:
- 50 piece
- Package Level 1 Width:
- 2.8 in
71 mm
- Package Level 1 Height:
- 2.3 in
58 mm
- Package Level 1 Depth / Length:
- 3.3 in
84 mm
- Package Level 2 Units:
- 500 piece
- Package Level 2 Width:
- 6.3 in
160 mm
- Package Level 2 Height:
- 4.1 in
104 mm
- Package Level 2 Depth / Length:
- 12.9 in
328 mm
Additional Information
- Brand / Label:
- Color-Keyed
- Cable Size:
- 6 AWG
- Color:
- Blue
- Insulation Material:
- None
- Material:
- Copper
- Number of Batteries:
- 0
- Product Name:
- ELECTRICAL TERMINAL
- Product Type:
- Standard Barrel
- Standards:
- UL E9809
- Stud Size:
- 1/4 in
- UPC:
- 786210541051
- Voltage Rating:
- 35 kV
Certificates and Declarations (Document Number)
Classifications
- ETIM 6:
- EC001051 - Tube cable lug for copper conductors
- ETIM 7:
- EC001051 - Tube cable lug for copper conductors
- UNSPSC:
- 39121405
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4532 >> Cable or wire lug
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| 54105 7TAH007100R0003 EN_7TAH007100R0003.pdf | 75 Kbytes |
|
