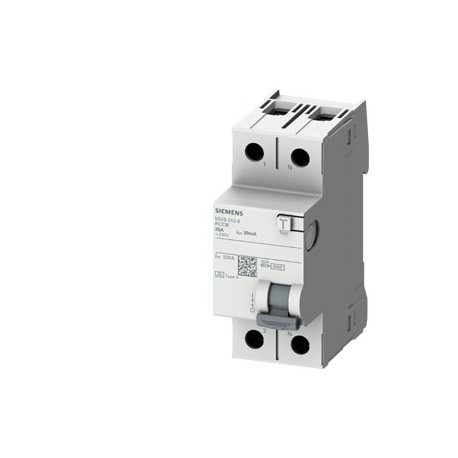

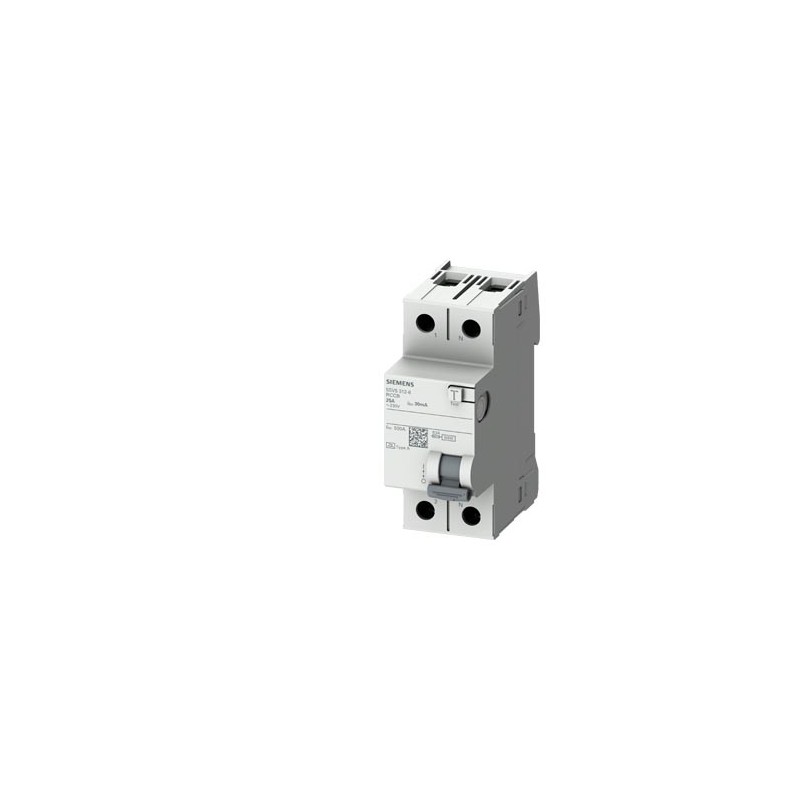

SI0502 5SV5316-0 SIEMENS Differential switch, 2 poles, AC type, Input: 63 A, 30 mA, One AC: 230 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SI0502 5SV5316-0 SIEMENS Differential switch, 2 poles, AC type, Input: 63 A, 30 mA, One AC: 230 V

SI0502

5SV5316-0

SIEMENS

Differential switch, 2 poles, AC type, Input: 63 A, 30 mA, One AC: 230 V

Residual current operated circuit breaker, 2-pole, Type AC, In: 63 A, 30 mA, Un AC: 230 V

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Industrial differential switches from 80 A and 5SM2 blocks

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Differential switch, 2 poles, AC type, Input: 63 A, 30 mA, One AC: 230 V
The version
product trade nameSENTRON
product designationDifferential switch
type of productNo delay
General technical data
number of poles2
size for modular appliances / according to DIN 438801
mechanical service life (maneuver cycles) / typical2 000
short-circuit current / upstream fuse / maximum permissible63 A
short-circuit resistance6 kA
maneuvering/short delay functionNo
overvoltage categoryIii
The supply voltage
supply voltage
With AC / assigned value230 V
• for test/min equipment.195 V
frequency of employment50 Hz
supply voltage frequency / assigned value50 Hz
Kind of protection
degree of IP protectionIP20, for distributor mounting, with connected conductors
Switching capacity
cutting power, current
According to EN 60898 / assigned value0.8 kA
According to IEC 61008-1 / assigned value0.8 kA
dissipation
losses [W]
• with assigned intensity value / with AC / in hot operating state / per pole5.3 W
Max.10.6 W
electricity
differential trigger current/assigned value30 mA
employment intensity
• with 40oC / assigned value63 A
With AC / assigned value63 A
type of defect currentAc
step/permissible intensity7 100 kA
I2t value / admissible110,000 A2's
Product details
product property / without siliconeYes
product expansion / incorporatable / complementary devicesNo
Connections
pluggable/monofilar driver section
Min.0.75 mm2
Max.35 mm2
pluggable/multi-threaded driver section
Min.0.75 mm2
Max.35 mm2
tightening torque / with screw terminals
Min.2.5 Nom
Max.3 Nom
position / network connection cableUp or down
Mechanical Design
height90 mm
width36 mm
depth70 mm
mounting depth70 mm
number of width modules2
type of fixationDIN Profile (REG)
mounting positionaccording to the user's needs
net weight222g
Environmental conditions
ambient temperature / during operation
Min.-25oC
Max.45oC
ambient temperature / during storage
Minimum allowable-40oC
Maximum allowable75oC
number of test cycles / for environmental testing / according to IEC 60068-2-3028
Certificates
reference designations
According to EN 61346-2F
According to IEC 81346-2:2009F

Downloads and manuals

General Product ApprovalDeclaration of Conformity

IMQ

Miscellaneous

EAC

EC/EU-Declaration of Conformity

Learn more
Information- and Downloadcenter (Catalogues, Brochures,...)
Industry Mall (online ordering system)
Service&Support (Manuals, Certificates, Features, FAQ,...)
Image database (product photos, 2D dimensioned drawings, 3D models, connection schemes, ...)
Tender specifications
date
27/04/2021


Additional data

product
Item number (market number)5SV5316-0
Product descriptionDifferential switch, 2 poles, AC type, Input: 63 A, 30 mA, One AC: 230 V
Product familyOrder data synopsis
Product Lifecycle (PLM)PM300:Active product
Price data
Price group / House and local price group34W/1AI
Metal factorL-A-----
Delivery information
Export control regulationsAL : N / ECCN : N
Delivery time20 Day/Days
Net weight (kg)0.216 Kg
Unit of measurement package sizeunavailable
Unit of measurement1 piece
Quantity per package1
Additional product information
Ean4001869429939
Upcunavailable
Commodity code85362010
LKZ_FDB/ CatalogIDLV10.1
Product group5510
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveRoHS compliant since: 01/06/06
Product classB: Restricted return, contact your Siemens partner contact
Mandatory category of return of electrical and electronic equipment after useYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0.1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0.1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
versionclassification
eClass627-14-22-01
eClass7.127-14-22-01
eClass827-14-22-01
eClass927-14-22-01
eClass9.127-14-22-01
ETIM5EC000003
ETIM6EC000003
ETIM7EC000003
ETIM8EC000003
UNSPSC1439-12-16-26
UNSPSC1539-12-16-01
