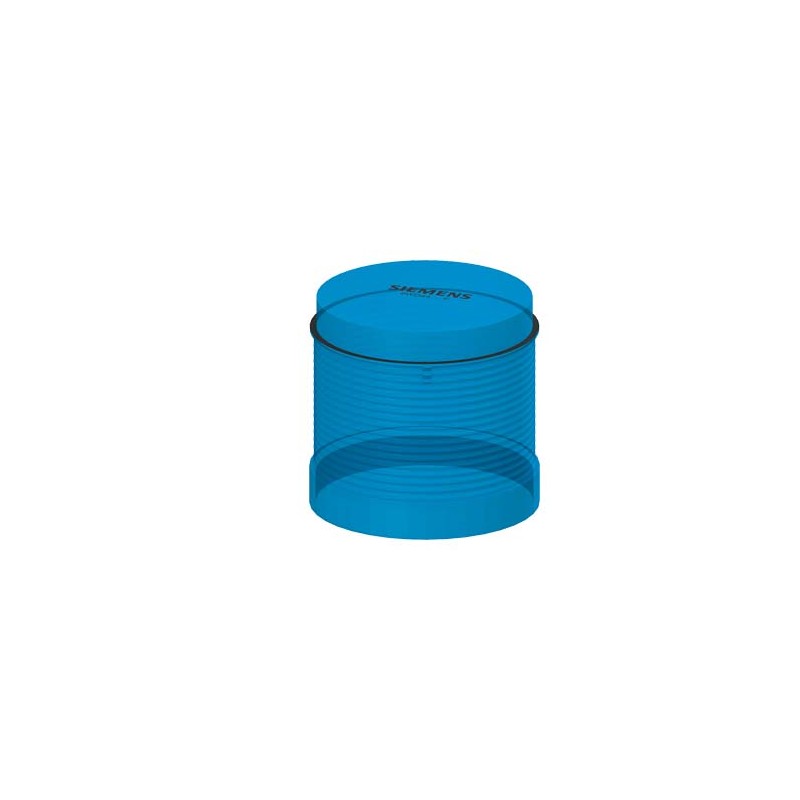

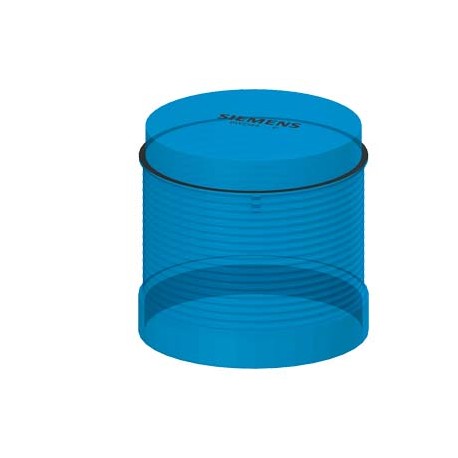

8WD4400-1AF SIEMENS Continuous light element, blue, 12-230 V AC/DC, 70 mm diameter, base BA 15d without ligh.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

8WD4400-1AF SIEMENS Continuous light element, blue, 12-230 V AC/DC, 70 mm diameter, base BA 15d without ligh..

8WD4400-1AF

SIEMENS

Continuous light element, blue, 12-230 V AC/DC, 70 mm diameter, base BA 15d without light element

More details


Low-voltage industrial components > Optical module for signal tower

CONTROL AND CONTACTORS > Commanding and signaling devices

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $51.18
Unit price: $51.18

Quantity Price
1+$51.18
2+$48.77
4+$41.90
5+$40.27
7+$39.24
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

Continuous light element, blue, 12-230 V AC/DC, 70 mm diameter, base BA 15d without light element
product brand nameSIRIUS
product designationContinuous light element
design of the productwithout light source
General technical data
type of voltage of the operating voltageAC/DC
operating voltage
● at DC rated value12 ... 230 V
● at AC at 50 Hz rated value12 ... 230 V
● at AC at 60 Hz rated value12 ... 230 V
reference code
● according to EN 61346-2P
● according to IEC 81346-2P
Lamp
product component light sourceNo
type of light sourcefilament lamp / LED
design of the optical signalcontinuous light
light intensity0.32 cd
light intensity0.25 ... 0.42 cd
socket designBA 15d
Enclosure
height65.5 mm
width70 mm
outer diameter of the signal column element70 mm
materialPC
colorblue
fastening methodBayonet
protection class IPIP65
Ambient conditions
ambient temperature during operation-20 ... +60 °C
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

UK Declaration of Conformity

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:2/25/2021
Date
5/10/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)8WD4400-1AF
Product DescriptionContinuous light element, blue, 12-230 V AC/DC, 70 mm diameter, base BA 15d without light element
Product family8WD44 signaling columns, 70 mm diameter
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,072 Kg
Packaging Dimension76,00 x 74,00 x 69,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209496903
UPC754554780795
Commodity Code85318070
LKZ_FDB/ CatalogIDCC-IC10
Product Group5833
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-12-20
eClass7.127-37-12-20
eClass827-37-12-20
eClass927-37-12-20
eClass9.127-37-12-20
ETIM5EC000232
ETIM6EC000232
ETIM7EC000232
ETIM8EC000232
IDEA44766
UNSPSC1439-12-15-21
UNSPSC1539-12-15-34

ETIM data

ETIM: EC000232 - Optical module for signal tower

Value Unit
Degree of protection (NEMA) (EF011959) -
Function (EF000030) Continuous light
Colour (EF000007) Blue
Outer diameter (EF000015) 70.0mm
Operating voltage at AC 50 Hz (EF008206) ['12', '230']V
Operating voltage at AC 60 Hz (EF008207) ['12', '230']V
Operating voltage at DC (EF008208) ['12', '230']V
Voltage type (EF000187) AC/DC
Lamp type (EF002423) Incandescent lamp/LED
Colour housing (EF000136) Blue
Degree of protection (IP) (EF005474) IP65


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
8WD4400-1AF 8WD4400-1AF EN_8WD4400-1AF.pdf 145 Kbytes 8WD4400-1AF 8WD4400-1AF EN_8WD4400-1AF.pdf
