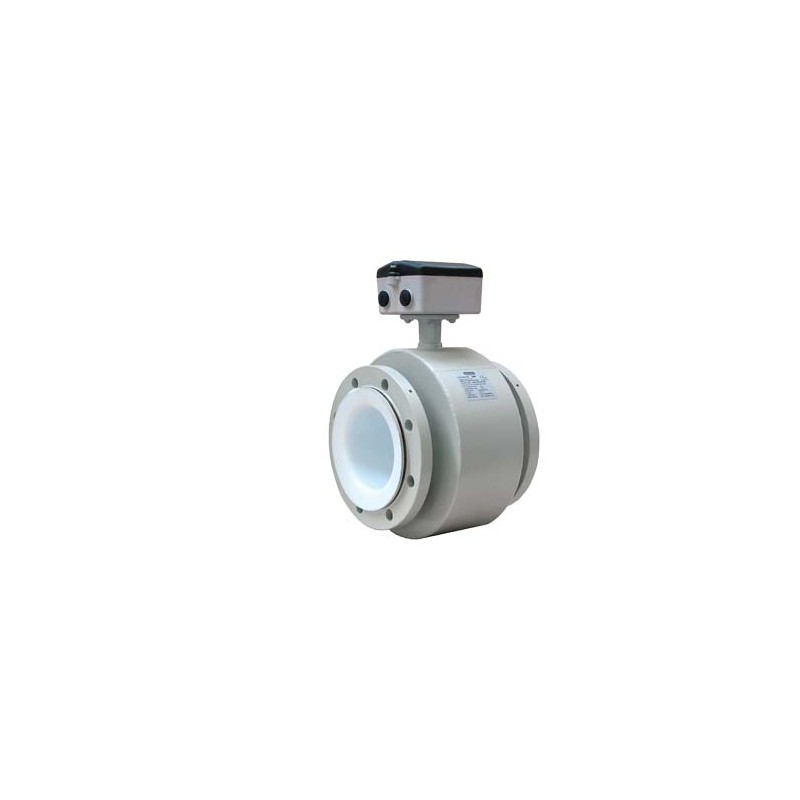

7ME5610-2DJ33-2AA4 SIEMENS SITRANS FM Transmag 911/E Full-bore electromagnetic flow sensor, flanged, diamete..
7ME5610-2DJ33-2AA4
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS FM Transmag 911/E Full-bore electromagnetic flow sensor, flanged, diameter DN 15 to DN 1000 (1/2" to 40"), AC-excited. Suitable for volume flow measurement of liquids (conductive), for use in heavy-duty applications like pulp & paper stock over 3%, mining slurries with magnetic particles. Remote DN25, 1 Inch ANSI B16.5, Class 150 (1/2 Inch - 24 Inch) max 19,6 bar 20C Flange material: Stainless steel flanges (1.4571/316Ti) Liner material: PTFE (without protection washers) Hastelloy C276 / 2.4819 . . 1/2 inch NPT: Stainless Steel Terminalbox
SITRANS FM Transmag 911/E Extremely precise electromagnetic flow sensor, with flange, diameter from DN 15 to DN 1000 (from 1/2" to 40"), alternating current supply. Suitable for continuous volumetric flow measurement of liquids (conductors), designed for high-performance applications, such as paper pulp and cellulose with concentrations greater than 3%, mining sludge with magnetic particles. Separate version Nominal diameter: DN 25 (1") Flange and nominal pressure standard: ANSI B16.5: classe 150 (1/2" à 24"), max 19.6 bar (285 psi) at 20 C (68 F) Flange material: Stainless steel flanges, AISI 316 Ti/1.4571 Coating material: PTFE (without protection discs) Electrode material: Hastelloy C276 / 2.4819. . Grommet/terminal box: 1/2" NPT: Stainless steel terminal box
Transmag 2 Sensor 911/E Remote DN25, 1 Inch ANSI B16.5, Class 150 (1/2 Inch - 24 Inch) max 19,6 bar 20C Flange material: Stainless steel flanges (1.4571/316Ti) Liner material: PTFE (without protection washers) Electrode material: Hastelloy C-4 (mat. No. 2.4610) . . 1/2 inch NPT: Stainless Steel Terminalbox
SENSORS AND COMMUNICATIONS > Magnetic, mass and ultrasonic flow meters
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ME5610-2DJ33-2AA4 | |||||||||||||||||||||||||||||||||
| Product Description | SITRANS FM Transmag 911/E Full-bore electromagnetic flow sensor, flanged, diameter DN 15 to DN 1000 (1/2" to 40"), AC-excited. Suitable for volume flow measurement of liquids (conductive), for use in heavy-duty applications like pulp & paper stock over 3%, mining slurries with magnetic particles. Remote DN25, 1 Inch ANSI B16.5, Class 150 (1/2 Inch - 24 Inch) max 19,6 bar 20C Flange material: Stainless steel flanges (1.4571/316Ti) Liner material: PTFE (without protection washers) Hastelloy C276 / 2.4819 . . 1/2 inch NPT: Stainless Steel Terminalbox | |||||||||||||||||||||||||||||||||
| Product family | SITRANS FM TRANSMAG 2 transmitter with SITRANS FM MAG 911/E sensor | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8F3 / 8F3 | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | |||||||||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 35 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 9,501 Kg | |||||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 90261021 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-3 | |||||||||||||||||||||||||||||||||
| Product Group | 4843 | |||||||||||||||||||||||||||||||||
| Group Code | R3P3 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 | |||||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| SCIP number | ||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
