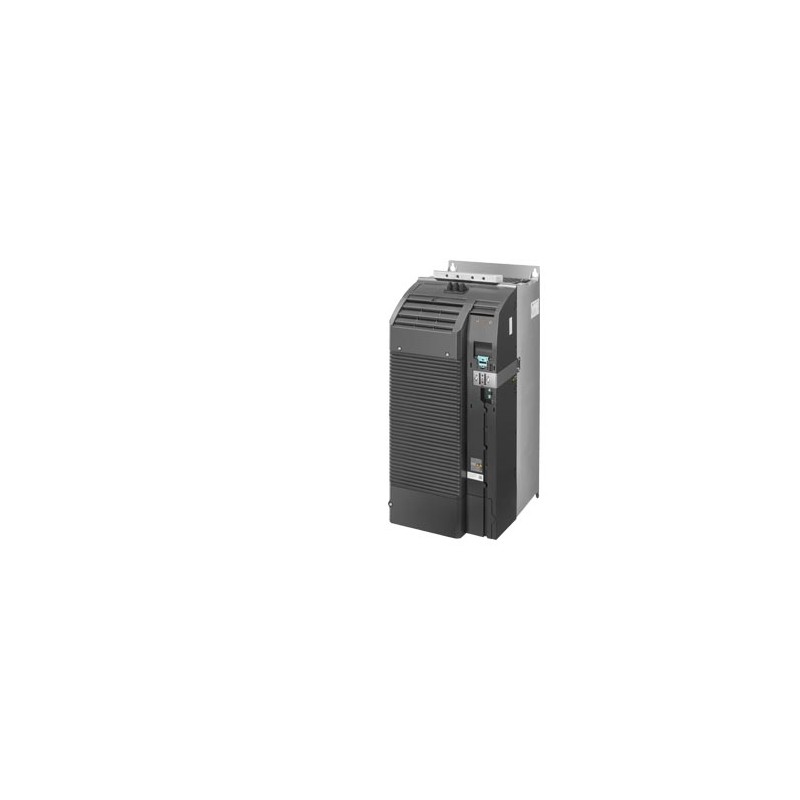

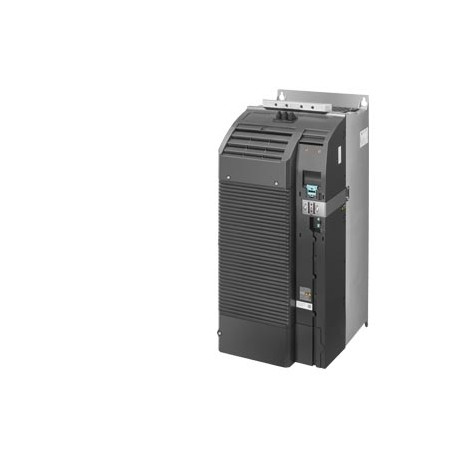

6SL3210-1PH31-4UL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

6SL3210-1PH31-4UL0 SIEMENS SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3..

6SL3210-1PH31-4UL0

SIEMENS

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 110KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 132kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

SINAMICS G120 Power Module PM240-2 without filter, with integrated Chopper 3AC 500-690V +10/-20% 47-63Hz. High overload power: 110KW with 200% 3s,150% 57s,100% 240s Temp. Amb -20 to +50 ºC. Low overload power: 132KW with 150% 3s,110% 57s,100% 240s Temp. Amb -20 to +40 ºC. 708 x 305 x 357 (H x W x D), FSF. Degree of protection: IP20. No Control Unit and control unit. Approved from CU Firmware-Version V4.7 HF8. Manufactured to order. Non-Cancelable Non-Returnable.

More details


Low-voltage industrial components > Frequency converter el 1 kV

DRIVES > SINAMICS G120 Power Modules Size A

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $11,809.48
Unit price: $11,809.48

Quantity Price
1+$11,809.48
2+$11,809.48
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

More info

▲


Technical data

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 110KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 132kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Downloads and manuals

Further information
Industry Online Support (Manuals, Catalogs, Certificates, FAQ, ...)
Industry Mall (Online ordering system)
Date
5/15/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)6SL3210-1PH31-4UL0
Product DescriptionSINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC500-690V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 110KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 132kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
Product familyPower Modules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group339 / 339
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : 3A999A
Standard lead time ex-works30 Day/Days
Net Weight (kg)61,000 Kg
Packaging Dimension469,00 x 745,00 x 385,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4042948668375
UPC804766361920
Commodity Code85044088
LKZ_FDB/ CatalogIDD11.1SD
Product Group9775
Group CodeR220
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2017
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-02-31-01
eClass7.127-02-31-01
eClass827-02-31-01
eClass927-02-31-01
eClass9.127-02-31-01
ETIM5EC001857
ETIM6EC001857
ETIM7EC001857
ETIM8EC001857
IDEA44139
UNSPSC1539-12-10-07

ETIM data

ETIM: EC001857 - Frequency converter =< 1 kV

Value Unit
Number of digital outputs (EF001993) -
Degree of protection (NEMA) (EF011959) -
Number of analogue outputs (EF001995) -
Max. output voltage (EF009560) -V
Number of analogue inputs (EF001994) -
Supporting protocol for BACnet (EF011944) -
Number of digital inputs (EF001992) -
Mains voltage (EF006780) ['500', '690']V
Number of phases input (EF007117) 3
Number of phases output (EF006998) 3
Max. output frequency (EF007350) 550Hz
Nominal output current I2N (EF009561) 142A
Max. output at quadratic load at rated output voltage (EF007366) 132.0kW
Max. output at linear load at rated output voltage (EF007364) 110.0kW
Relative symmetric net frequency tolerance (EF007454) 5%
Relative symmetric net voltage tolerance (EF007453) -10%
With control unit (EF001538) false
Application in industrial area permitted (EF007294) false
Application in domestic- and commercial area permitted (EF007295) false
Supporting protocol for TCP/IP (EF003050) -
Supporting protocol for PROFIBUS (EF003052) -
Supporting protocol for CAN (EF003053) -
Supporting protocol for INTERBUS (EF003054) -
Supporting protocol for ASI (EF003051) -
Supporting protocol for KNX (EF003055) -
Supporting protocol for Modbus (EF003057) -
Supporting protocol for Data-Highway (EF003058) -
Supporting protocol for DeviceNet (EF003059) -
Supporting protocol for SUCONET (EF003060) -
Supporting protocol for LON (EF003017) -
Supporting protocol for PROFINET IO (EF007525) -
Supporting protocol for PROFINET CBA (EF007524) -
Supporting protocol for SERCOS (EF006657) -
Supporting protocol for Foundation Fieldbus (EF007522) -
Supporting protocol for EtherNet/IP (EF007521) -
Supporting protocol for AS-Interface Safety at Work (EF007519) -
Supporting protocol for DeviceNet Safety (EF007520) -
Supporting protocol for INTERBUS-Safety (EF006662) -
Supporting protocol for PROFIsafe (EF007526) -
Supporting protocol for SafetyBUS p (EF007527) -
Supporting protocol for other bus systems (EF003062) -
Number of HW-interfaces industrial Ethernet (EF003020) -
Number of interfaces PROFINET (EF006932) -
Number of HW-interfaces RS-232 (EF003021) -
Number of HW-interfaces RS-422 (EF003022) -
Number of HW-interfaces RS-485 (EF003023) -
Number of HW-interfaces serial TTY (EF003024) -
Number of HW-interfaces USB (EF003025) -
Number of HW-interfaces parallel (EF003026) -
Number of HW-interfaces other (EF003027) -
With optical interface (EF003028) -
With PC connection (EF006107) -
Integrated breaking resistance (EF007293) true
4-quadrant operation possible (EF006803) false
Type of converter (EF006978) U converter
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 708.0mm
Width (EF000008) 305.0mm
Depth (EF000049) 357.0mm
Mains frequency (EF006783) -


Datasheet - PDF

▲
Title: Size: Type:
6SL3210-1PH31-4UL0 6SL3210-1PH31-4UL0 EN_6SL3210-1PH31-4UL0.pdf 243 Kbytes 6SL3210-1PH31-4UL0 6SL3210-1PH31-4UL0 EN_6SL3210-1PH31-4UL0.pdf
