6GK7277-1AA10-0AA0
SIEMENS
1

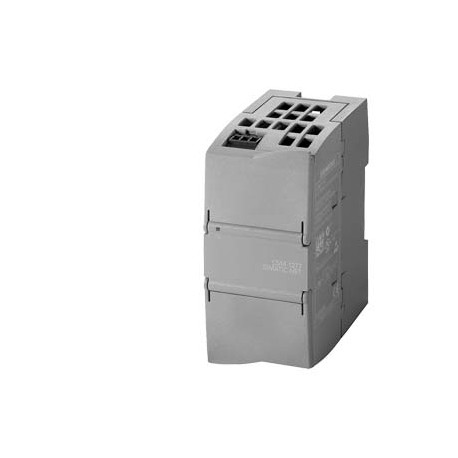

Compact Switch Module CSM 1277 for connecting SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbit/s; unmanaged switch, 4 RJ45 ports, ext. 24 V DC power supply LED diagnostics, S7-1200 module incl. electronic Equipment Manual on CD-ROM
Data and telecommunication > Network switch
AUTOMATION SYSTEMS > SIMATIC S7-1200 / F
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Value | Unit | |
---|---|---|
Number of ports 40 Gbps Mini GBIC (EF012061) | - | |
Power over Ethernet (EF009714) | - | |
Number of ports 100 Mbps POF (EF009895) | - | |
Max. PoE power (EF009716) | - | W |
Number of ports 100 Gbps Mini GBIC (EF012062) | - | |
Number of ports 10 Gbps RJ45 (EF012063) | - | |
Ethernet (EF003535) | true | |
Number of ports 10/100 Mbps RJ45 (EF003549) | 4 | |
Number of ports 10/100/1000 Mbps RJ45 (EF004316) | 0 | |
Number of ports 1000 Mbps RJ45 (EF000902) | 0 | |
Number of ports 10 Gbps Mini GBIC (EF008850) | - | |
Number of ports 100/1000 Mbps Mini GBIC (EF008849) | - | |
Number of ports 1000 Mbps Mini GBIC (EF004321) | 0 | |
Number of combination-ports RJ45/Mini GBIC (EF004849) | 0 | |
Number of ports 1000 Mbps GBIC (EF004318) | 0 | |
Number of ports 10/100 Mbps M12 (EF004315) | 0 | |
Number of ports 100 Mbps SC (EF000900) | 0 | |
Number of ports 1000 Mbps SC (SX) (EF003551) | 0 | |
Number of ports 1000 Mbps SC (LX) (EF003552) | 0 | |
Number of ports 100 Mbps ST (EF000923) | - | |
Number of ports 1000 Mbps POF (EF009910) | - | |
Number of ports PoE (EF009715) | - | |
Number of other ports (EF007643) | 0 | |
Mounting method (EF000003) | Other | |
Number of max. stackable switches (EF003598) | 0 | |
Number of module slots (EF003597) | 0 | |
Layer 2 (EF004883) | true | |
Layer 3 (EF004884) | false | |
Manageable (EF004912) | false | |
Degree of protection (IP) (EF005474) | IP20 | |
Height (EF000040) | 100.0 | mm |
Width (EF000008) | 45.0 | mm |
Depth (EF000049) | 75.0 | mm |
Compact Switch Module CSM 1277 for connecting SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbit/s; unmanaged switch, 4 RJ45 ports, ext. 24 V DC power supply LED diagnostics, S7-1200 module incl. electronic Equipment Manual on CD-ROM | ||
Product type designation | SCALANCE CSM 1277 | |
Transfer rate | ||
Transfer rate | 10 Mbit/s, 100 Mbit/s | |
Interfaces / for communication / Integrated | ||
Number of electrical connections | ||
● for network components or terminal equipment | 4 | |
Number of 100 Mbit/s SC ports | ||
● for multimode | 0 | |
Number of 1000 Mbit/s LC ports | ||
● for multimode | 0 | |
● for single mode (LD) | 0 | |
Interfaces / other | ||
Number of electrical connections | ||
● for power supply | 1 | |
Type of electrical connection | ||
● for power supply | 3-pole terminal block | |
Supply voltage, current consumption, power loss | ||
Type of voltage / 1 / of the supply voltage | DC | |
● Supply voltage / 1 / Rated value | 24 V | |
● Power loss [W] / 1 / Rated value | 1.6 W | |
● Supply voltage / 1 / rated value | 19.2 ... 28.8 V | |
Ambient conditions | ||
Ambient temperature | ||
● during operation | 0 ... 60 °C | |
● during storage | -40 ... +70 °C | |
● during transport | -40 ... +70 °C | |
Relative humidity | ||
● at 25 °C / without condensation / during operation / maximum | 95 % | |
Protection class IP | IP20 | |
Design, dimensions and weights | ||
Design | SIMATIC S7-1200 device design | |
Width | 45 mm | |
Height | 100 mm | |
Depth | 75 mm | |
Net weight | 0.15 kg | |
Mounting type | ||
● 35 mm DIN rail mounting | Yes | |
● wall mounting | Yes | |
● S7-300 rail mounting | No | |
● S7-1500 rail mounting | No | |
Product functions / management, configuration, engineering | ||
Product function | ||
● multiport mirroring | No | |
Product function / switch-managed | No | |
Product functions / redundancy | ||
Product function | ||
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes | |
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No | |
Standards, specifications, approvals | ||
Standard | ||
● for FM | FM3611: Class 1, Divison 2, Group A, B, C, D / T.., CL.1, Zone 2, GP. IIC, T.. Ta | |
● for hazardous zone | EN 600079-15:2005, EN 600079-0:2006, II 3 G Ex nA II T4, KEMA 08 ATEX 0003 X | |
● for safety / from CSA and UL | UL 508, CSA C22.2 No. 142 | |
● for emitted interference | EN 61000-6-4 (Class A) | |
● for interference immunity | EN 61000-6-2 | |
MTBF | 273 y | |
Standards, specifications, approvals / CE | ||
Certificate of suitability / CE marking | Yes | |
Standards, specifications, approvals / other | ||
Certificate of suitability | EN 61000-6-2, EN 61000-6-4 | |
● C-Tick | Yes | |
● KC approval | No | |
Standards, specifications, approvals / marine classification | ||
Marine classification association | ||
● American Bureau of Shipping Europe Ltd. (ABS) | Yes | |
● Bureau Veritas (BV) | Yes | |
● Det Norske Veritas (DNV) | Yes | |
● Germanische Lloyd (GL) | No | |
● Lloyds Register of Shipping (LRS) | Yes | |
● Nippon Kaiji Kyokai (NK) | Yes | |
● Polski Rejestr Statkow (PRS) | No | |
● Royal Institution of Naval Architects (RINA) | No | |
Further information / Internet-Links | ||
Internet-Link | ||
● to website: Selector SIMATIC NET SELECTION TOOL | http://www.siemens.com/snst | |
● to website: Industrial communication | http://www.siemens.com/simatic-net | |
● to website: Industry Mall | https://mall.industry.siemens.com | |
● to website: Information and Download Center | http://www.siemens.com/industry/infocenter | |
● to website: Image database | http://automation.siemens.com/bilddb | |
● to website: CAx Download Manager | http://www.siemens.com/cax | |
● to website: Industry Online Support | https://support.industry.siemens.com | |
Security information | ||
Security information | Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4) | |
last modified: | 08/21/2020 |
Product | ||||||||||||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 6GK7277-1AA10-0AA0 | |||||||||||||||||||||||||||||||||||||||
Product Description | Compact Switch Module CSM 1277 for connecting SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbit/s; unmanaged switch, 4 RJ45 ports, ext. 24 V DC power supply LED diagnostics, S7-1200 module incl. electronic Equipment Manual on CD-ROM | |||||||||||||||||||||||||||||||||||||||
Product family | CSM 1277 unmanaged | |||||||||||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
Price data | ||||||||||||||||||||||||||||||||||||||||
Price Group | ||||||||||||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
Delivery information | ||||||||||||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
Standard lead time ex-works | 1 Day/Days | |||||||||||||||||||||||||||||||||||||||
Net Weight (kg) | 0,225 Kg | |||||||||||||||||||||||||||||||||||||||
Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||||||||
Packaging Dimension | 1,00 x 1,00 x 1,00 | |||||||||||||||||||||||||||||||||||||||
Package size unit of measure | MM | |||||||||||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
EAN | 4019169854399 | |||||||||||||||||||||||||||||||||||||||
UPC | 040892607208 | |||||||||||||||||||||||||||||||||||||||
Commodity Code | 85176200 | |||||||||||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | IK | |||||||||||||||||||||||||||||||||||||||
Product Group | 2415 | |||||||||||||||||||||||||||||||||||||||
Group Code | R320 | |||||||||||||||||||||||||||||||||||||||
Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Given | |||||||||||||||||||||||||||||||||||||||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
